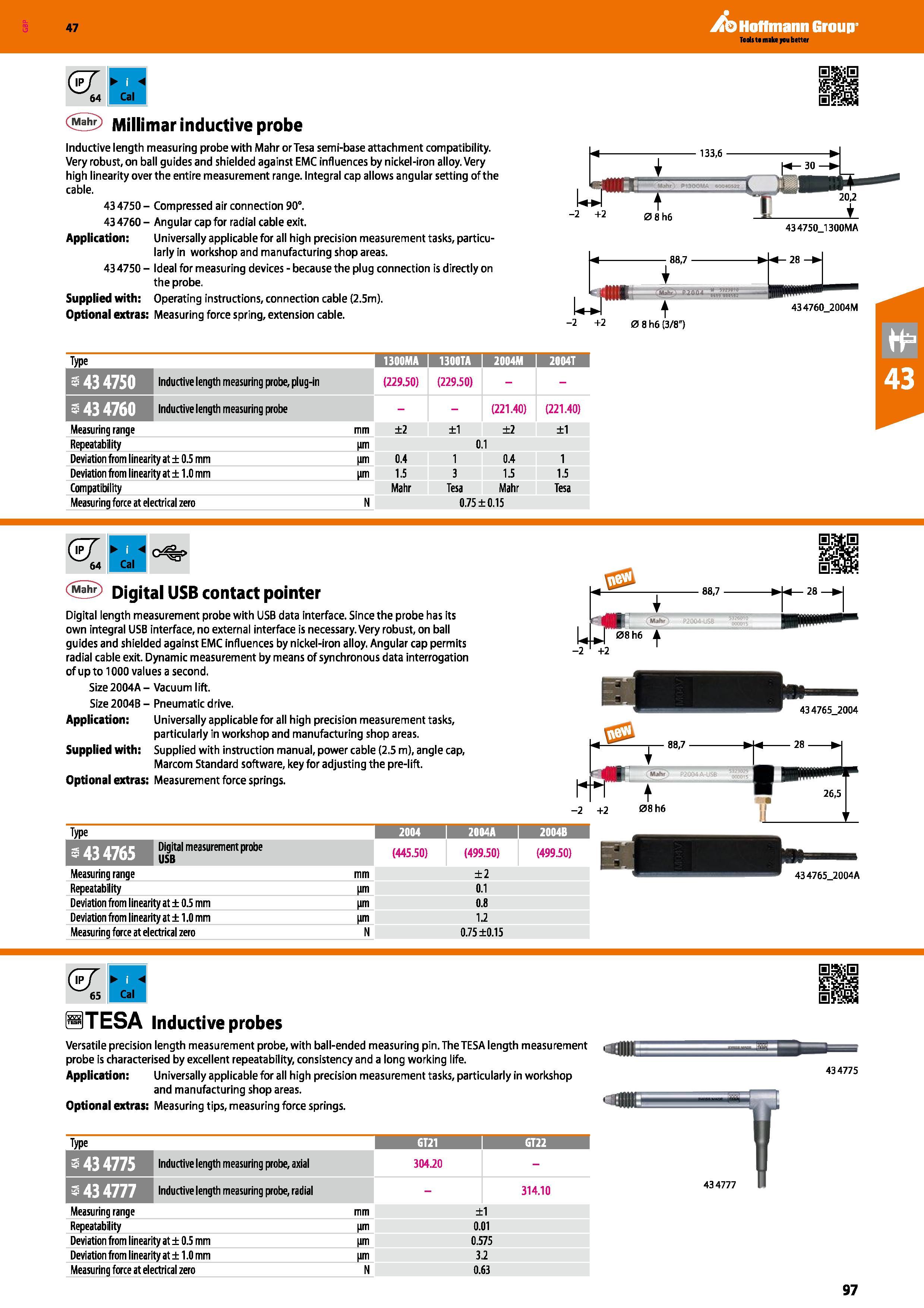

64 <5 Millimar inductive probe Inductive length measuring probe with Mahr orTesa semi-base attachment compatibility. Very robust, on ball guides and shielded against EMC influences by nickel-iron alloy. Very high linearity over the entire measurement range. Integral cap allows angular setting of the cable. 43 4750 - Compressed air connection 90°. 434760 - Angular cap for radial cable exit. Application: Universally applicable for all high precision measurement tasks, particu- larly in workshop and manufacturing shop areas. 43 4750 - Ideal for measuring devices - because the plug connection is directly on the probe. Supplied with: Operating instructions, connection cable (2.5m). Optional extras: Measuring force spring, extension cable. uT -2 +2 28 - 434760 2004M -2 +2 0 8 h6 3/8") Type 1 1300MA 1 1300TA I 2004M 1 2004T f Inductive length measuring probe, plug-in (229.50) (229.50) Inductive length measuring probe (221.40) (221.40) Measuring range mm ±2 ±1 ±2 ±1 Repeatability im 0.1 Deviation from linearity at ± 0.5 mm jm 0.4 1 0.4 1 Deviation from linearity at ± 1.0 mm im 1.5 3 1J 1.5 Compatibility Mahr Tesa Mahr Tesa Measuring force at electrical zero N 0.75 ± 0.15 <57 64 Cal Digital USB contact pointer Digital length measurement probe with USB data interface. Since the probe has its own integral USB interface, no external interface is necessary. Very robust, on ball guides and shielded against EMC influences by nickel-iron alloy. Angular cap permits radial cable exit. Dynamic measurement by means of synchronous data interrogation of up to 1000 values a second. Size 2004A - Vacuum lift. Size 2004B - Pneumatic drive. Application: Universally applicable for all high precision measurement tasks, particularly in workshop and manufacturing shop areas. Supplied with: Supplied with instruction manual, power cable (2.5 m), angle cap, Marcom Standard software, key for adjusting the pre-lift. Optional extras: Measurement force springs. U +2 I 08 h6 28 434765 2004 88,7 HUhf VI 004A4S& I -2 +2 08 h6 26,5 Type nn 2004 i 2004A I 2004B 3 Digital measurement probe usb (445.50) (499.50) (499.50) Measuring range mm ±2 Repeatability im 0.1 Deviation from linearity at ± 0.5 mm im 0.8 Deviation from linearity at ± 1.0 mm im 1.2 Measuring force at electrical zero N 0.75 ±0.15 434765_2004A <57 65 STESA Inductive probes Versatile precision length measurement probe, with ball-ended measuring pin. TheTESA length measurement probe is characterised by excellent repeatability, consistency and a long working life. Application: Universally applicable for all high precision measurement tasks, particularly in workshop and manufacturing shop areas. Optional extras: Measuring tips, measuring force springs. 434775 1 Type GT21 1 GT22 1 IE t J Inductive length measuring probe, axial 304.20 - 1t jllM Inductive length measuring probe, radial - 314.10 Measuring range mm ±1 Repeatability im 0.01 Deviation from linearity at ± 0.5 mm jm 0.575 Deviation from linearity at ± 1.0 mm im 3.2 Measuring force at electrical zero N 0.63 434777 f 08 h6 _L 434750J300MA 97
