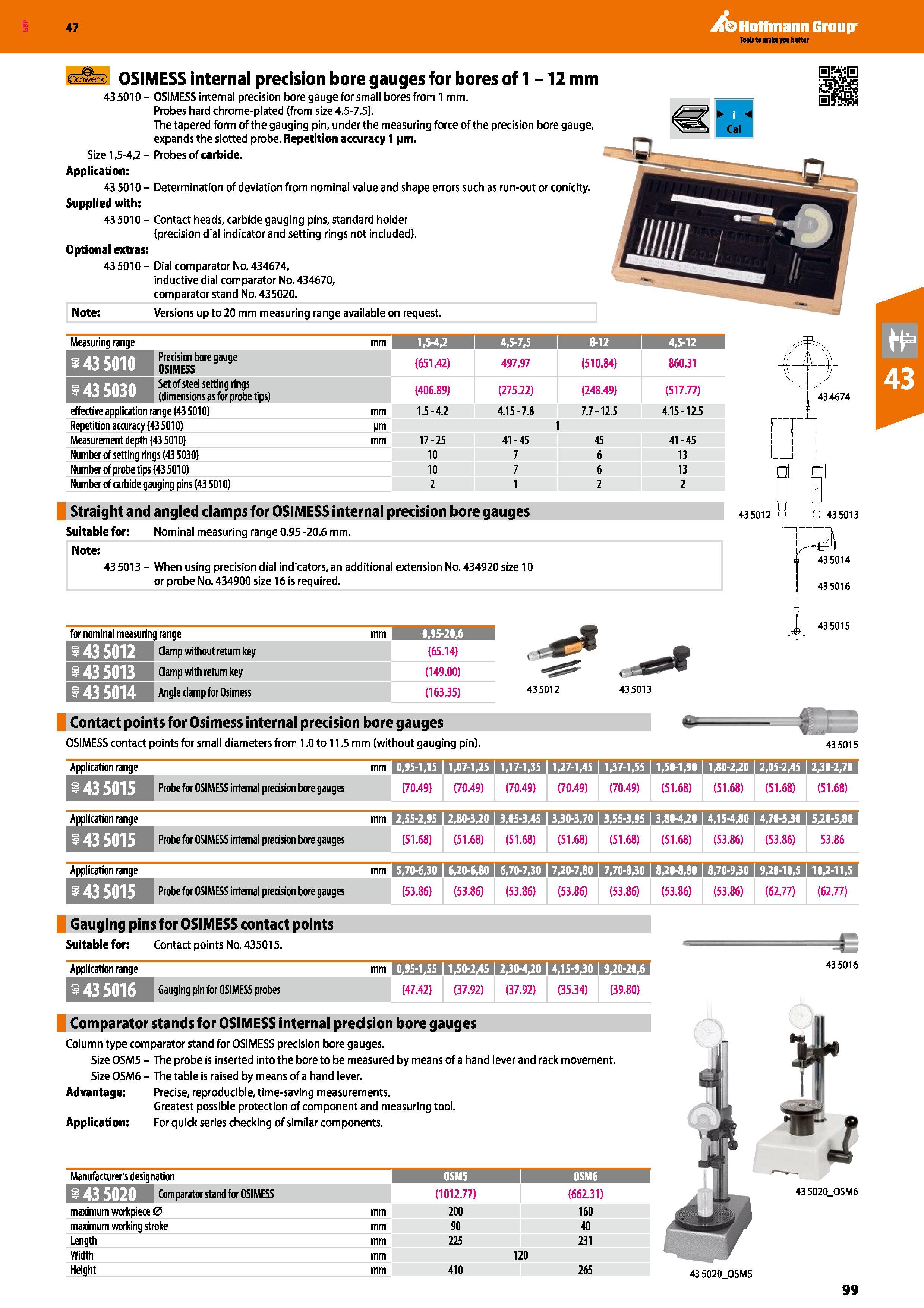

Hoffmann Group 47 OSIMESS internal precision bore gauges for bores of 1 -12 mm 435010- OSIMESS internal precision bore gauge for small bores from 1 mm. Probes hard chrome-plated (from size 4.5-7.5). The tapered form of the gauging pin, under the measuring force of the precision bore gauge, expands the slotted probe. Repetition accuracy 1 im. Size 1,5-4,2 - Probes of carbide. Application: 43 5010 - Determination of deviation from nominal value and shape errors such as run-out or conicity. Supplied with: 43 5010 - Contact heads, carbide gauging pins, standard holder (precision dial indicator and setting rings not included). Optional extras: 43 5010 - Dial comparator No. 434674, inductive dial comparator No. 434670, comparator stand No. 435020. Note: Versions up to 20 mm measuring range available on request. Measuring range mm 1.5-4,2 4,5-7,5 I 8-12 4,5-12 Precision bore gauge OSIMESS (651.42) 497.97 (510.84) 860.31 Set of steel setting rings (dimensions as for probe tips) (406.89) (275.22) (248.49) (517.77) effective application range (43 5010) mm lj-4.2 4.15-7.8 7.7-12 5 4.15-12.5 Repetition accuracy (43 5010) pm 1 Measurement depth (43 5010) mm 17-25 41-45 45 41-45 Number of setting rings (435030) 10 7 6 13 Number of probe tips (43 5010) 10 7 6 13 Number of carbide gauging pins (435010) 2 1 2 2 Straight and angled clamps for OSIMESS internal precision bore gauges Suitable for: Nominal measuring range 0.95 -20.6 mm. Note: 43 5013 - When using precision dial indicators, an additional extension No. 434920 size 10 or probe No. 434900 size 16 is required. for nominal measuring range mm 0,95-20,6 1435012 Clamp without return key (65.14) 9 43 5013 Clamp with return key (149.00) 43 5014 Angle dampfor Osimess (163.35) 435015 435012 435013 Contact points for Osimess internal precision bore gauges OSIMESS contact points for small diameters from 1.0 to 11.5 mm (without gauging pin). 43 5015 Application range mm 0,95-1,15 1 1,07-1,25 1 1,17-1,35 11,27-1,45 1 1,37-1,55 1 1,50-1,90 I 1,80-2,20 1 2,05-2/45 1 2,30-2,70 1 5 Probe for OSIMESS internal precision bore gauges (70.49) (70.49) (70.49) (70.49) (70.49) (51.68) (51.68) (51.68) (51.68) Application range mm 2,55-2,95 1 2,80-3,20 1 3,05-3/45 1 3,30-3,70 1 3,55-3,95 1 3,80-4,20 1 4,15-4,80 1 4,70-5,30 1 5,20-5,80 1 9 435015 Probe for OSIMESS internal precision bore gauges (51.68) (51.68) (51.68) (51.68) (51.68) (51.68) (53.86) (53.86) 53.86 Application range T“ 5,70-6,30 6,20-6,80 6,70-7,30 7,20-7,80 7,70-8,30 8,20-8,80 8,70-9,30 9,20-10,5 10,2-11,5 (62.77) 15 Probe for OSIMESS internal precision bore gauges (53.86) (53.86) (53.86) (53.86) (53.86) (53.86) (53.86) (62.77) Gauging pins for OSIMESS contact points Suitable for: Contact points No. 435015. Application range mm 0,95-1,55 11,50-2/45 I 2,30-4,20 4,15-9,30 9,20-20,6 Gauging pin for OSIMESS probes (47.42) (37.92) (37.92) (35.34) (39.80) 43 5016 Comparator stands for OSIMESS internal precision bore gauges Column type comparator stand for OSIMESS precision bore gauges. SizeOSMS - The probe is inserted into the bore to be measured by means of a hand lever and rack movement. Size OSM6 - The table is raised by means of a hand lever. Advantage: Precise, reproducible, time-saving measurements. Greatest possible protection of component and measuring tool. Application: For quick series checking of similar components. Manufacturer's designation 0SM5 1 0SM6 I tfcllWlI Comparator stand for OSIMESS (1012.77) (662.31) maximum workpiece 0 mm 200 160 maximum working stroke mm 90 40 Length mm 225 231 Width mm 120 Height mm 410 265 43 502Q_OSM5 43 5020_QSM6 99
