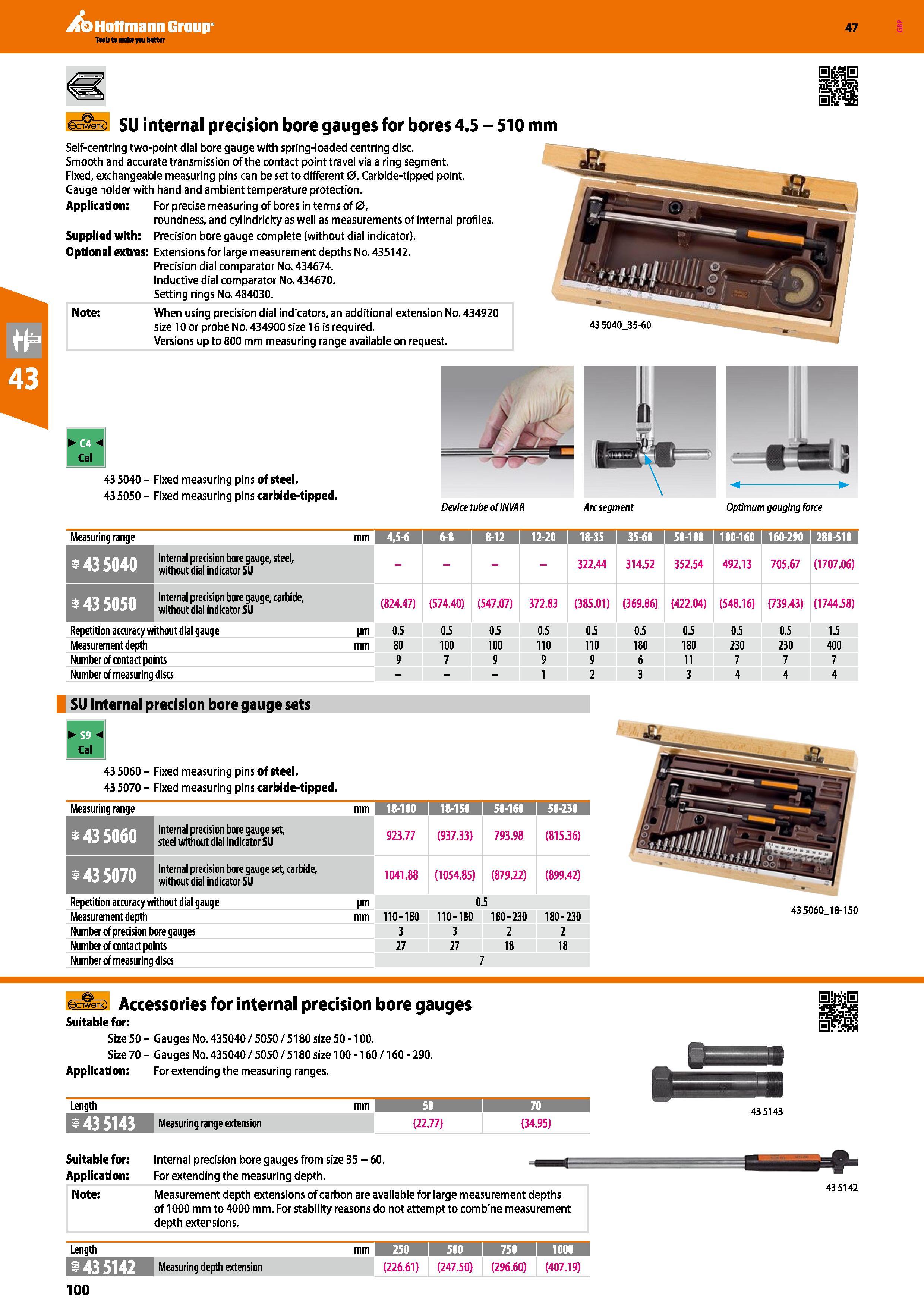

Hoffmann Group 47 SU internal precision bore gauges for bores 4.5 - 510 mm Self-centring two-point dial bore gauge with spring-loaded centring disc. Smooth and accurate transmission of the contact point travel via a ring segment. Fixed, exchangeable measuring pins can be set to different 0. Carbide-tipped point. Gauge holder with hand and ambient temperature protection. Application: For precise measuring of bores in terms of 0, roundness, and cylindricity as well as measurements of internal profiles. Supplied with: Precision bore gauge complete (without dial indicator). Optional extras: Extensions for large measurement depths No. 435142. Precision dial comparator No. 434674. Inductive dial comparator No. 434670. Setting rings No. 484030. Note: When using precision dial indicators, an additional extension No. 434920 size 10 or probe No. 434900 size 16 is required. Versions up to 800 mm measuring range available on request. 43 5040 - Fixed measuring pins of steel. 435050- Fixed measuring pins carbide-tipped. Device tube of INVAR s Arc segment Optimum gauging force Measuring range mm WESM 6-8 1 8-12 1 12-20 1 18-35 I 35-60 Internal precision bore gauge, steel, without dial indicator SU 322.44 314.52 352.54 492.13 705.67 (1707.06) Internal precision bore gauge, carbide, without dial indicator SU (824.47) (574.40) (547.07) 372.83 (385.01) (369.86) (422.04) (548.16) (739.43) (1744.58) Repetition accuracy without dial gauge im 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 1.5 Measurement depth mm 80 100 100 110 110 180 180 230 230 400 Number of contact points 9 7 9 9 9 6 11 7 7 7 Number of measuring discs 1 2 3 3 4 4 4 SU Internal precision bore gauge sets a Cal - 43 5060 - Fixed measuring pins of steel. 43 5070 - Fixed measuring pins carbide-tipped. Measuring range mm 18-100 I 18-150 1 50-160 1 50-230 43 5060 Internal precision bore gauge set, steel without dial indicator SU 923.77 (937.33) 793.98 (815.36) 435070 Internal precision bore gauge set, carbide, without dial indicator SU 1041.88 (1054.85) (879.22) (899.42) Repetition accuracy without dial gauge im 0.5 Measurement depth mm 110-180 110-180 180-230 180 - 230 Number of precision bore gauges 3 3 2 2 Number of contact points 27 27 18 18 Number of measuring discs Accessories for internal precision bore gauges Suitable for: Size 50 - Gauges No. 435040 / 5050 / 5180 size 50 -100. Size 70 - Gauges No. 435040 / 5050 / 5180 size 100 -160 /160 - 290. Application: For extending the measuring ranges. Length mm 50 I 70 S Measuring range extension (22.77) (34.95) Suitable for: Internal precision bore gauges from size 35 - 60. Application: For extending the measuring depth. Note: Measurement depth extensions of carbon are available for large measurement depths of 1000 mm to 4000 mm. For stability reasons do not attempt to combine measurement depth extensions. Length Measuring depth extension 100 500 750 226.61 247.50) 296.60) 407.19) 435143 43 5142 435060.18-150
