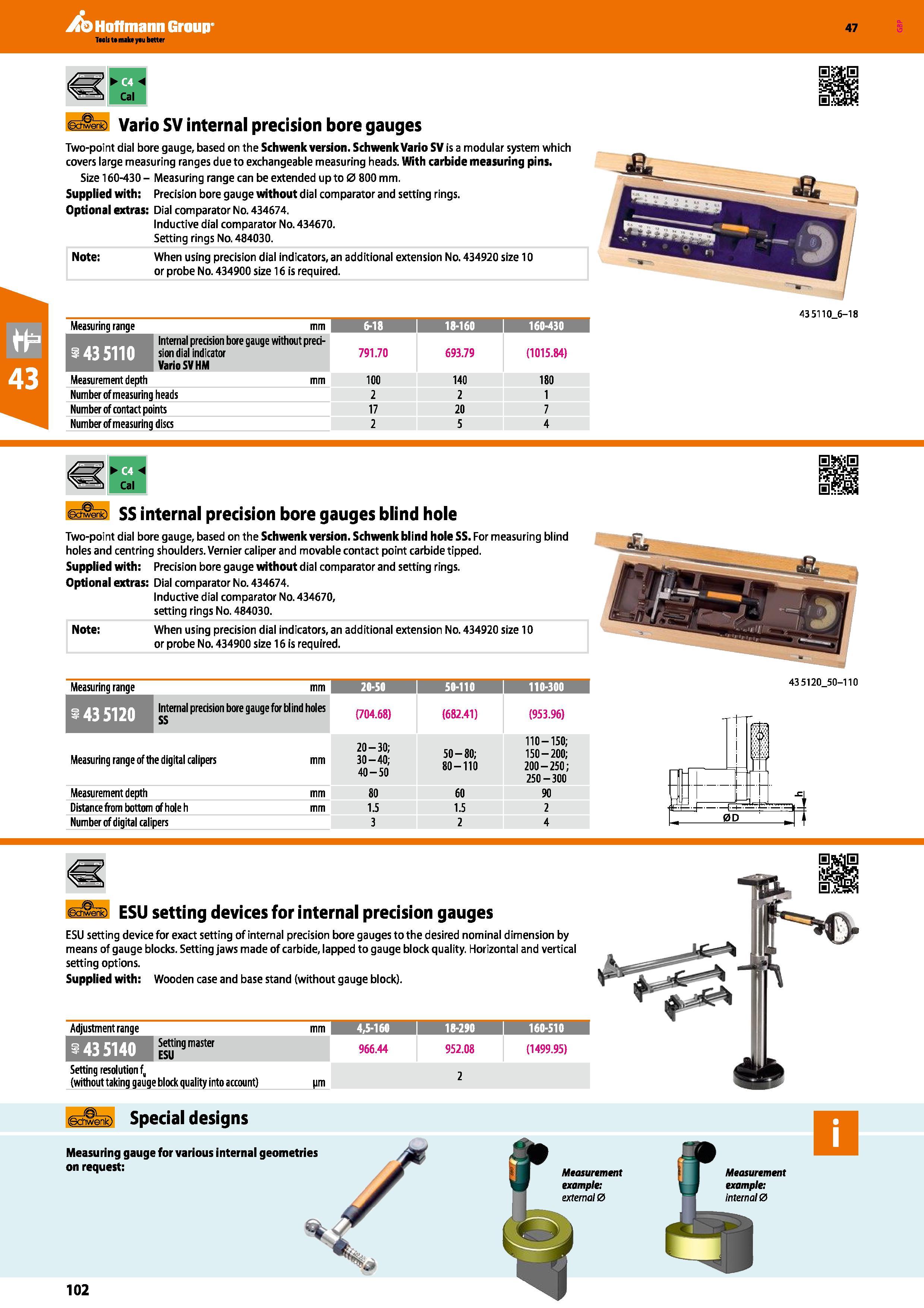

Hoffmann Group 47 ( d nk) Vario SV internal precision bore gauges Two-point dial bore gauge, based on the Schwenk version. Schwenk Vario SV is a modular system which covers large measuring ranges due to exchangeable measuring heads. With carbide measuring pins. Size 160-430 - Measuring range can be extended up to 0 800 mm. Supplied with: Precision bore gauge without dial comparator and setting rings. Optional extras: Dial comparator No. 434674. Inductive dial comparator No. 434670. Setting rings No. 484030. Note: When using precision dial indicators, an additional extension No. 434920 size 10 or probe No. 434900 size 16 is required. Measuring range mm 6-18 18-160 I 160-430 f Internal precision bore gauge without preci-sg C<. H ll flM sion dial indicator Vario SVHM 791.70 693.79 (1015.84) Measurement depth mm 100 140 180 Number of measuring heads 2 2 1 Number of contact points 17 20 7 Number of measuring discs 2 5 4 435110_6-18 SS internal precision bore gauges blind hole Two-point dial bore gauge, based on the Schwenk version. Schwenk blind hole SS. For measuring blind holes and centring shoulders. Vernier caliper and movable contact point carbide tipped. Supplied with: Precision bore gauge without dial comparator and setting rings. Optional extras: Dial comparator No. 434674. Inductive dial comparator No. 434670, setting rings No. 484030. Note: When using precision dial indicators, an additional extension No. 434920 size 10 or probe No. 434900 size 16 is required. Measuring range mm 20-50 50-110 110-300 435120 Internal precision bore gauge for blind holes SS (704.68) (682.41) (953.96) Measuring range of the digital calipers mm 20-30; 30-40; 40-50 50-80; 80-110 110-150; 150-200; 200-250; 250-300 Measurement depth mm 80 60 90 Distance from bottom of hole h mm 1.5 1.5 2 Number of digital calipers 3 2 4 43 5120_50 110 ESU setting devices for internal precision gauges ESU setting device for exact setting of internal precision bore gauges to the desired nominal dimension by means of gauge blocks. Setting jaws made of carbide, lapped to gauge block quality. Horizontal and vertical setting options. Supplied with: Wooden case and base stand (without gauge block). Adjustment range mm 4,5-160 18-290 1 160-510 1 ggQQg Setting master 966.44 952.08 (1499.95) Setting resolution f, (without taking gauge block quality into account) pm 2 C ctwenic) Special designs Measuring gauge for various internal geometries on request: Measurement example; external 0 Measurement example; internal0 102
