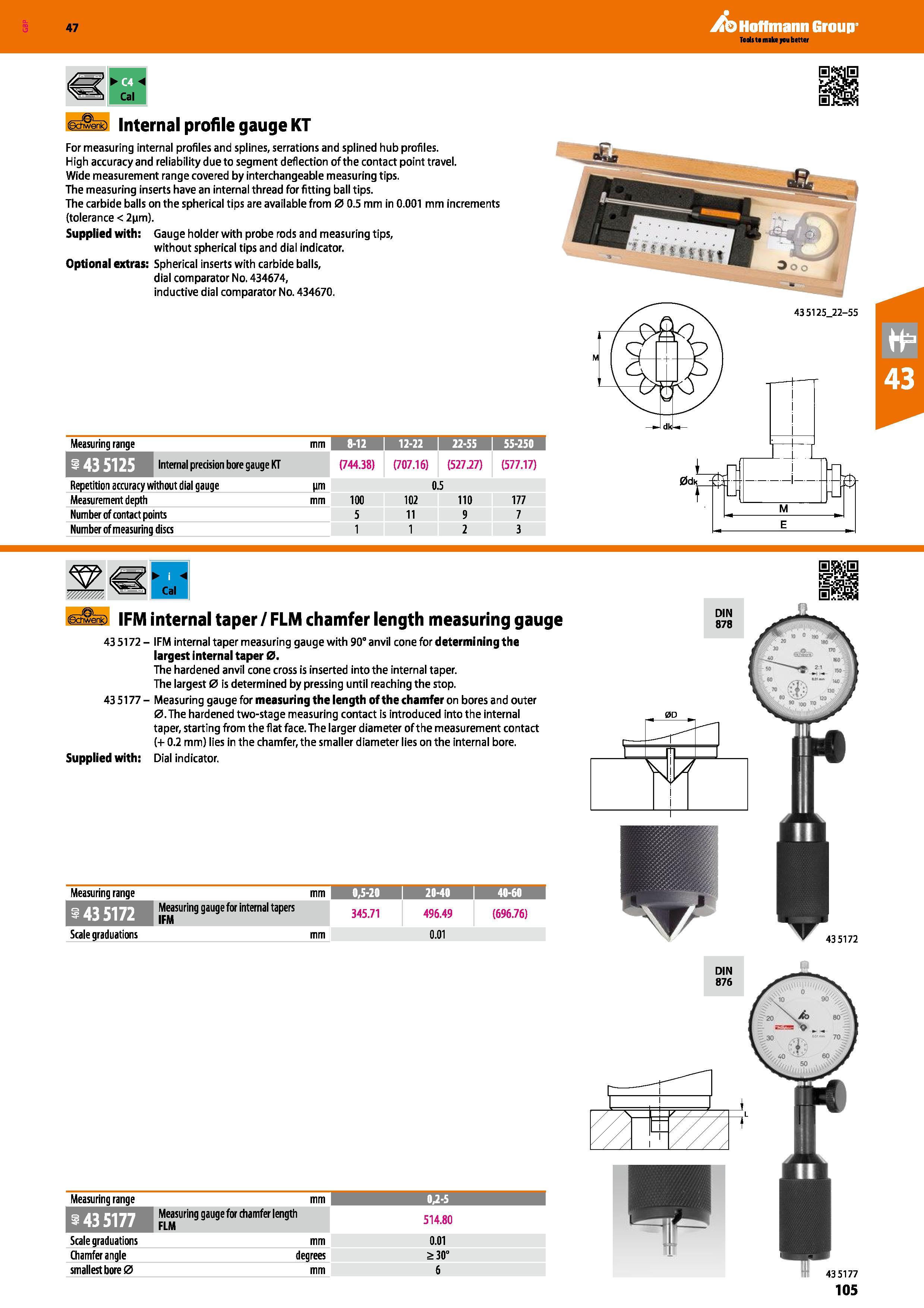

105 Каталог HOFFMANN GROUP 2016 Слесарно-монтажный и измерительный инструмент Вер. 47 ENG Стр.105

Каталог HOFFMANN GROUP 2016 Слесарный и мерительный инструмент Стр. 105 0105 ENG Lab2u

Hoffmann Group 47 Measuring range mm 8-12 1 12-22 1 22-55 I 55-250 Internal precision bore gauge KT (744.38) (707.16) (527.27) (577.17) Repetition accuracy without dial gauge im 0.5 Measurement depth mm 100 102 110 177 Number of contact points 5 11 9 7 Number of measuring discs 1 1 2 3 Cal ( d nk) Internal profile gauge KT For measuring internal profiles and splines, serrations and splined hub profiles. High accuracy and reliability due to segment deflection of the contact point travel. Wide measurement range covered by interchangeable measuring tips. The measuring inserts have an internal thread for fitting ball tips. The carbide balls on the spherical tips are available from 0 0.5 mm in 0.001 mm increments (tolerance < 2jim). Supplied with: Gauge holder with probe rods and measuring tips, without spherical tips and dial indicator. Optional extras: Spherical inserts with carbide balls, dial comparator No. 434674, inductive dial comparator No. 434670. d nk) IFM internal taper / FLM chamfer length measuring gauge 435172 - IFM internal taper measuring gauge with 90° anvil cone for determining the largest internal taper 0. The hardened anvil cone cross is inserted into the internal taper. The largest 0 is determined by pressing until reaching the stop. 435177- Measuring gauge for measuring the length of the chamfer on bores and outer 0.The hardened two-stage measuring contact is introduced into the internal taper, starting from the flat face. The larger diameter of the measurement contact (+ 0.2 mm) lies in the chamfer, the smaller diameter lies on the internal bore. Supplied with: Dial indicator. Measuring range mm 0,5-20 20-40 i 40-60 72 Measuring gauge for internal tapers IFM 345.71 496.49 (696.76) Scale graduations mm 0.01 Measuring range mm 0,2-5 9 43 5177 Measuring gauge for chamfer length FLM 514.80 Scale graduations mm 0.01 Chamfer angle degrees >30° smallest bore 0 mm 6 435172 43 5177 105
