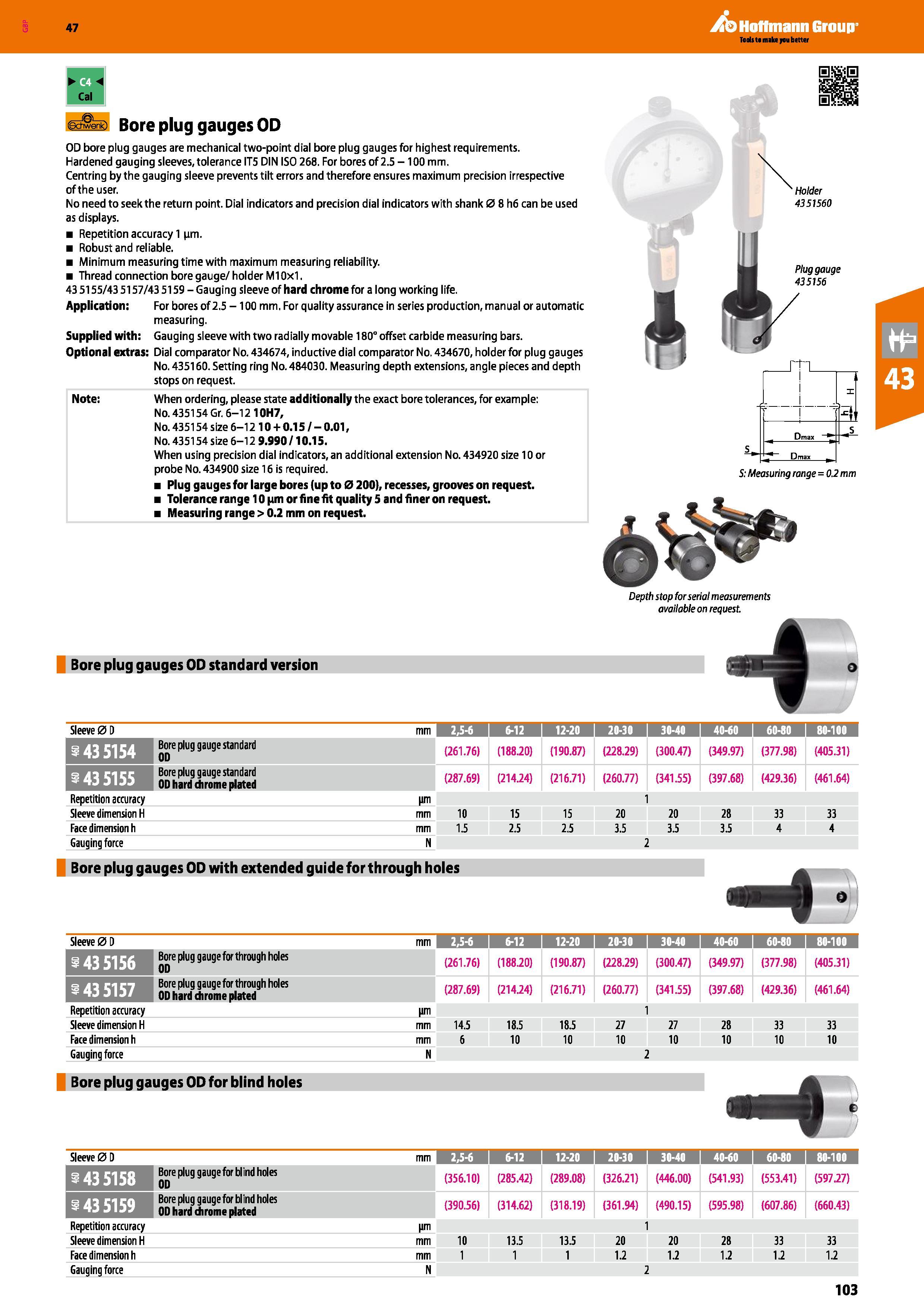

Hoffmann Group 47 Bore plug gauges OD OD bore plug gauges are mechanical two-point dial bore plug gauges for highest requirements. Hardened gauging sleeves, tolerance IT5 DIN ISO 268. For bores of 2.5 - 100 mm. Centring by the gauging sleeve prevents tilt errors and therefore ensures maximum precision irrespective of the user. No need to seek the return point. Dial indicators and precision dial indicators with shank 0 8 h6 can be used as displays. Repetition accuracy 1 (am. Robust and reliable. Minimum measuring time with maximum measuring reliability. Thread connection bore gauge/holderM10x1. 43 5155/43 5157/43 5159 - Gauging sleeve of hard chrome for a long working life. Application: For bores of 2.5 -100 mm. For quality assurance in series production, manual or automatic measuring. Supplied with: Gauging sleeve with two radially movable 180° offset carbide measuring bars. Optional extras: Dial comparator No. 434674, inductive dial comparator No. 434670, holder for plug gauges No. 435160. Setting ring No. 484030. Measuring depth extensions, angle pieces and depth stops on request. When ordering, please state additionally the exact bore tolerances, for example: No. 435154 Gr. 6-12 10H7, No. 435154 size 6-12 10 + 0.15 / - 0.01, No. 435154 size 6-12 9.990 /10.15. When using precision dial indicators, an additional extension No. 434920 size 10 or probe No. 434900 size 16 is required. Plug gauges for large bores (up to 0 200), recesses, grooves on request. Tolerance range 10 iun or fine fit quality 5 and finer on request. Measuring range > 0.2 mm on request. Holder 4351560 Plug gauge 435156 Depth stop for serial measurements available on request Bore plug gauges OD standard version Sleeve 0 D mm 2,5-6 i 6-12 I 12-20 1 20-30 1 30-40 I 40-60 I 60-80 : I 9 43 5154 Bore plug gauge standard 0D (261.76) (188.20) (190.87) (228.29) (300.47) (349.97) (377.98) (405.31) Bore plug gauge standard 0D hard dirome plated (287.69) (214.24) (216.71) (260.77) (341.55) (397.68) (429.36) (461.64) Repetition accuracy pm 1 Sleeve dimension H mm 10 15 15 20 20 28 33 33 Face dimension h mm 1.5 2.5 2.5 3.5 3.5 3.5 4 4 Gauging force N 2 Bore plug gauges OD with extended guide for through holes 9 Sleeve 0 D mm 2,5-6 i 6-12 I 12-20 1 20-30 1 30-40 I 40-60 I 60-80 wnannM Bore plug gauge for through holes 0D (261.76) (188.20) (190.87) (228.29) (300.47) (349.97) (377.98) (405.31) Bore plug gauge for through holes 0D hard dirome plated (287.69) (214.24) (216.71) (260.77) (341.55) (397.68) (429.36) (461.64) Repetition accuracy pm 1 Sleeve dimension H mm 14.5 18.5 18.5 27 27 28 33 33 Face dimension h mm 6 10 10 10 10 10 10 10 Gauging force N 2 Bore plug gauges OD for blind holes Sleeve 0 D mm 1 2,5-6 6-12 I 12-20 I 20-30 I 30-40 I 40-60 1 60-80 I 80-100 Bore plug gauge for blind holes 0D (356.10) (285.42) (289.08) (326.21) (446.00) (541.93) (553.41) (597.27) 9 435159 Bore plug gauge for blind holes 0D hard chrome plated (390.56) (314.62) (318.19) (361.94) (490.15) (595.98) (607.86) (660.43) Repetition accuracy pm 1 Sleeve dimension H mm 10 13.5 13.5 20 20 28 33 33 Face dimension h mm 1 1 1 1.2 1.2 1.2 1.2 1.2 Gauging force N 2 103
