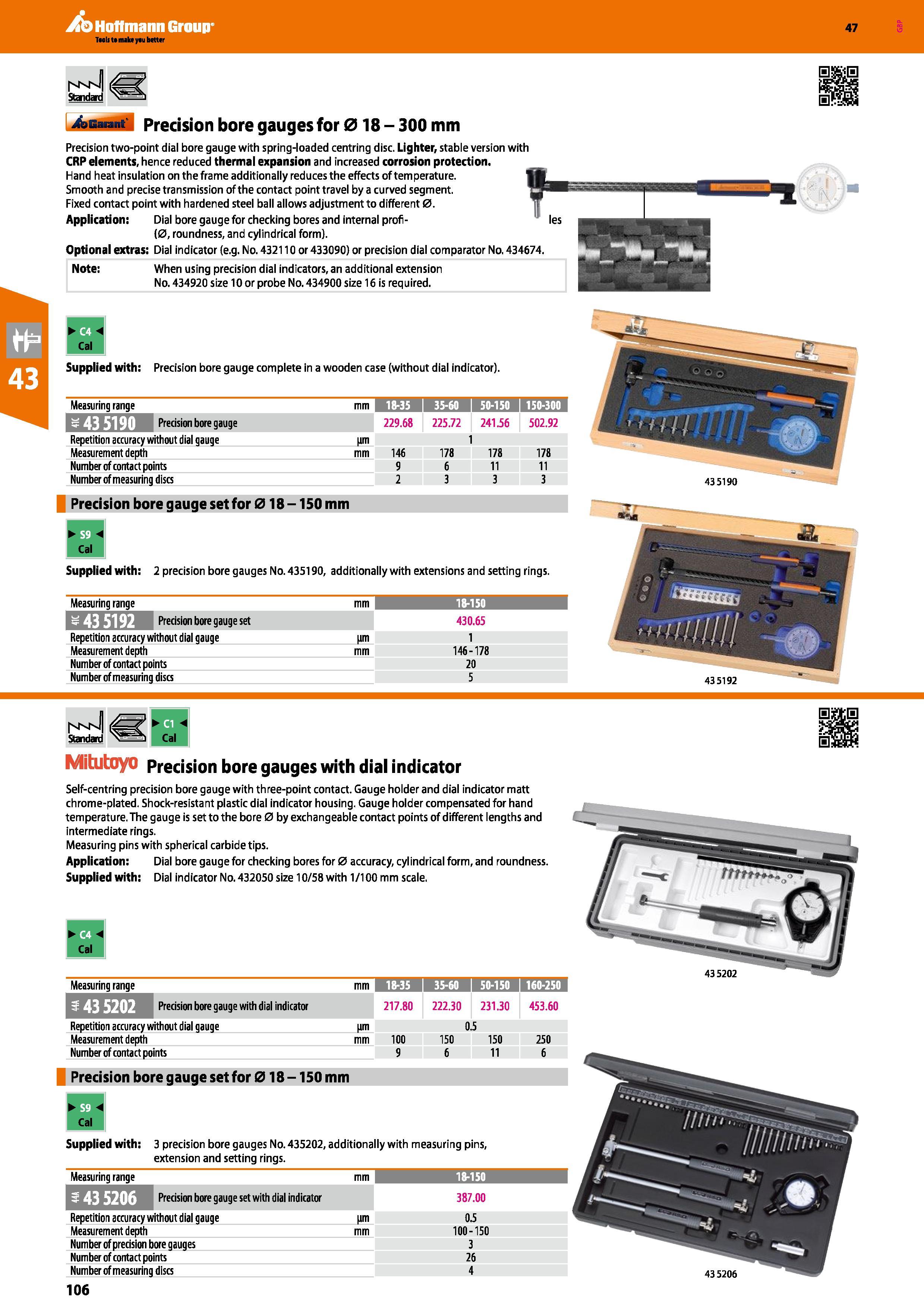

Hoffmann Group Taals to make yau better 47 Supplied with: Precision bore gauge complete in a wooden case (without dial indicator). Measuring range mm 18-35 I 35-60 2 cI LT H Precision bore gauge 229.68 225.72 241.56 502.92 Repetition accuracy without dial gauge im 1 Measurement depth mm 146 178 178 178 Number of contact points 9 6 11 11 Numberof measuring discs 2 3 3 3 4sbu M Precision bore gauges for 018 - 300 mm Precision two-point dial bore gauge with spring-loaded centring disc. Lighter, stable version with CRP elements, hence reduced thermal expansion and increased corrosion protection. Hand heat insulation on the frame additionally reduces the effects of temperature. Smooth and precise transmission of the contact point travel by a curved segment. Fixed contact point with hardened steel ball allows adjustment to different 0. Application: Dial bore gauge for checking bores and internal prof- (0, roundness, and cylindrical form). Optional extras: Dial indicator (e.g. No. 432110 or 433090) or precision dial comparator No. 434674. Note: When using precision dial indicators, an additional extension No. 434920 size 10 or probe No. 434900 size 16 is required. 435190 Precision bore gauge set for 018-150 mm 3 Cal Supplied with: 2 precision bore gauges No. 435190, additionally with extensions and setting rings. Measuring range gfcj.1l 17 J Precision bore gauge set Repetition accuracy without dial gauge Measurement depth Number of contact points Number of measuring discs im mm 430.65 1 146-178 20 5 Standard Mitutoyo Precision bore gauges with dial indicator Self-centring precision bore gauge with three-point contact. Gauge holder and dial indicator matt chrome-plated. Shock-resistant plastic dial indicator housing. Gauge holder compensated for hand temperature. The gauge is set to the bore 0 by exchangeable contact points of different lengths and intermediate rings. Measuring pins with spherical carbide tips. Application: Dial bore gauge for checking bores for 0 accuracy, cylindrical form, and roundness. Supplied with: Dial indicator No. 432050 size 10/58 with 1/100 mm scale. Measuring range mm 18-35 I 35-60 lEnm Precision bore gauge with dial indicator 217.80 222.30 231.30 453.60 Repetition accuracy without dial gauge im 0.5 Measurement depth mm 100 150 150 250 Number of contact points 9 6 11 6 Precision bore gauge set for 018-150 mm g Cal Supplied with: 3 precision bore gauges No. 435202, additionally with measuring pins, extension and setting rings. Measuring range mm 18-150 EZ 352 Precision bore gauge set with dial indicator 387.00 Repetition accuracy without dial gauge im 0.5 Measurement depth mm 100-150 Numberofprecisionboregauges 3 Number of contact points 26 Numberof measuring discs 4 106 435192 435202
