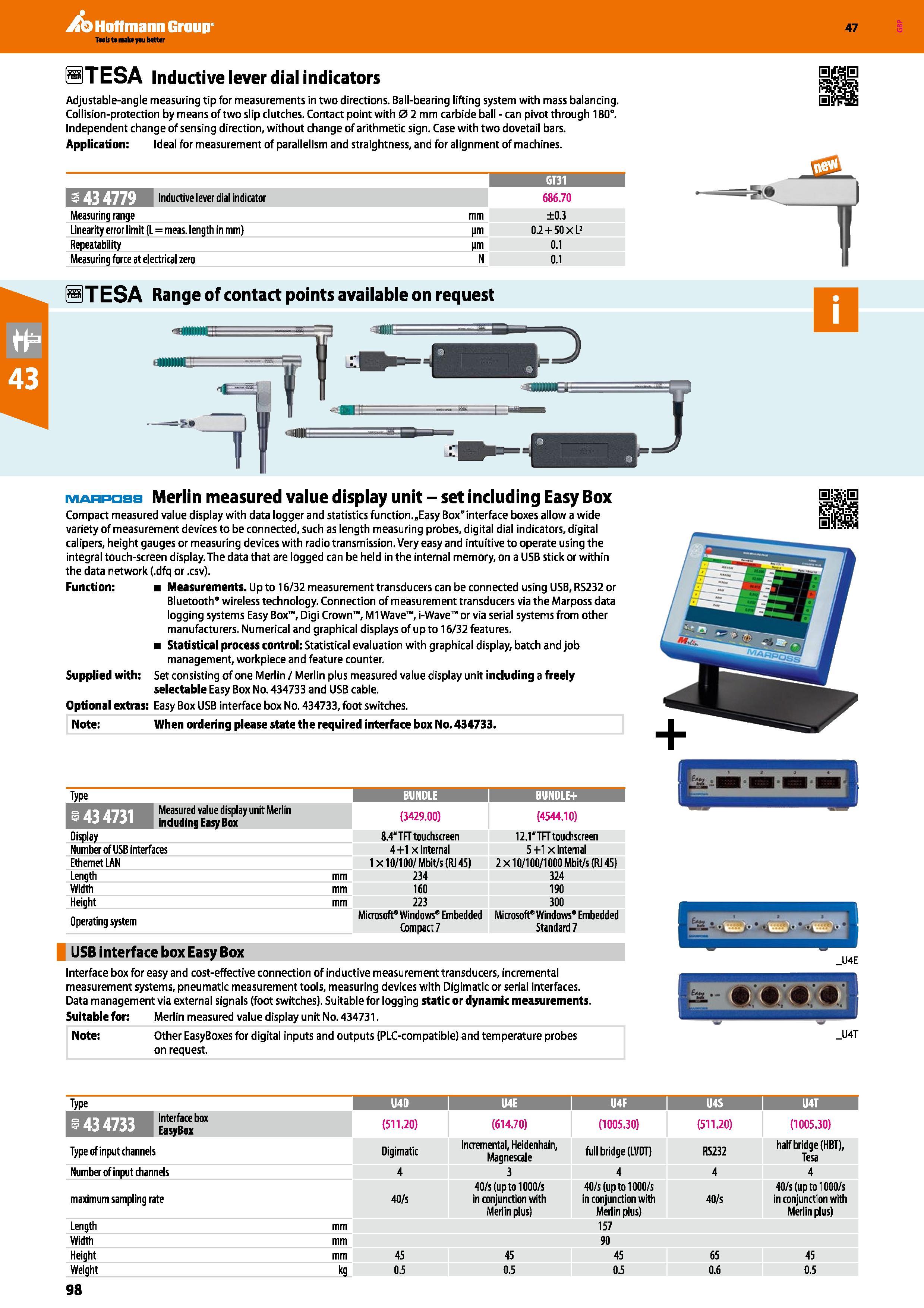

98 Каталог HOFFMANN GROUP 2016 Слесарно-монтажный и измерительный инструмент Вер. 47 ENG Стр.98

Каталог HOFFMANN GROUP 2016 Слесарный и мерительный инструмент Стр. 98 0098 ENG Lab2u

Hoffmann Group 47 STESA Inductive lever dial indicators Adjustable-angle measuring tip for measurements in two directions. Ball-bearing lifting system with mass balancing. Collision-protection by means of two slip clutches. Contact point with 0 2 mm carbide ball - can pivot through 180°. Independent change of sensing direction, without change of arithmetic sign. Case with two dovetail bars. Application: Ideal for measurement of parallelism and straightness, and for alignment of machines. Inductive lever dial indicator 686.70 Measuring range mm ±0.3 Linearity error limit (L=meas. length in mm) pm 0.2 + 50 x L2 Repeatability pm 0.1 Measuring force at electrical zero N 0.1 L 3TESA Range of contact points available on request MARPaaa Merlin measured value display unit - set including Easy Box Compact measured value display with data logger and statistics function.„Easy Box"interface boxes allow a wide variety of measurement devices to be connected, such as length measuring probes, digital dial indicators, digital calipers, height gauges or measuring devices with radio transmission. Very easy and intuitive to operate using the integral touch-screen display. The data that are logged can be held in the internal memory, on a USB stick or within the data network (,dfq or ,csv). Function: Measurements. Up to 16/32 measurement transducers can be connected using USB, RS232 or Bluetooth wireless technology. Connection of measurement transducers via the Marposs data logging systems Easy Box , Digi Crown , Ml Wave , i-Wave or via serial systems from other manufacturers. Numerical and graphical displays of upto 16/32 features. Statistical process control: Statistical evaluation with graphical display, batch and job management, workpiece and feature counter. Supplied with: Set consisting of one Merlin / Merlin plus measured value display unit including a freely selectable Easy Box No. 434733 and USB cable. Optional extras: Easy Box USB interface box No. 434733, foot switches. Note: When ordering please state the required interface box No. 434733. Type 1 BUNDLE I BUNDLE+ Measured value display unit Merlin IjUtlUl induding Easy Box (3429.00) (4544.10) Display 8.4“ TFT touchscreen 12.1“TFT touchscreen Number of USB interfaces 4+1 x internal 5 +1 x internal Ethernet LAW 1x10/100/ Mbit/s (RJ 45) 2 x 10/100/1000 Mbit/s (RJ 45) Length mm 234 324 Width mm 160 190 Height mm 223 300 Operating system Microsoft8 Windows8 Embedded Microsoft8 Windows8 Embedded Compact 7 Standard 7 USB interface box Easy Box r 1 Interface box for easy and cost-effective connection of inductive measurement transducers, incremental measurement systems, pneumatic measurement tools, measuring devices with Digimatic or serial interfaces. Data management via external signals (foot switches). Suitable for logging static or dynamic measurements. Suitable for: Merlin measured value display unit No. 434731. Note: Other EasyBoxes for digital inputs and outputs (PLC-compatible) and temperature probes on request. _U4E U4T Type U4D j U4E I U4F U4S WT 1 Interface box EasyBox (511.20) (614.70) (1005.30) (511.20) (1005.30) Type of input channels Digimatic Incremental, Heidenhain, Magnescale full bridge (LVDT) RS232 half bridge (HBT), Tesa Number of input channels 4 3 4 4 4 40/s (upto 1000/s 40/s (upto 1000/s 40/s (up to 1000/s maximum sampling rate 40/s in conjunction with in conjunction with 40/s in conjunction with Merlin plus) Merlin plus) Merlin plus) Length mm 157 Width mm 90 Height mm 45 45 45 65 45 Weight kg 0.5 0.5 0.5 0.6 0.5
