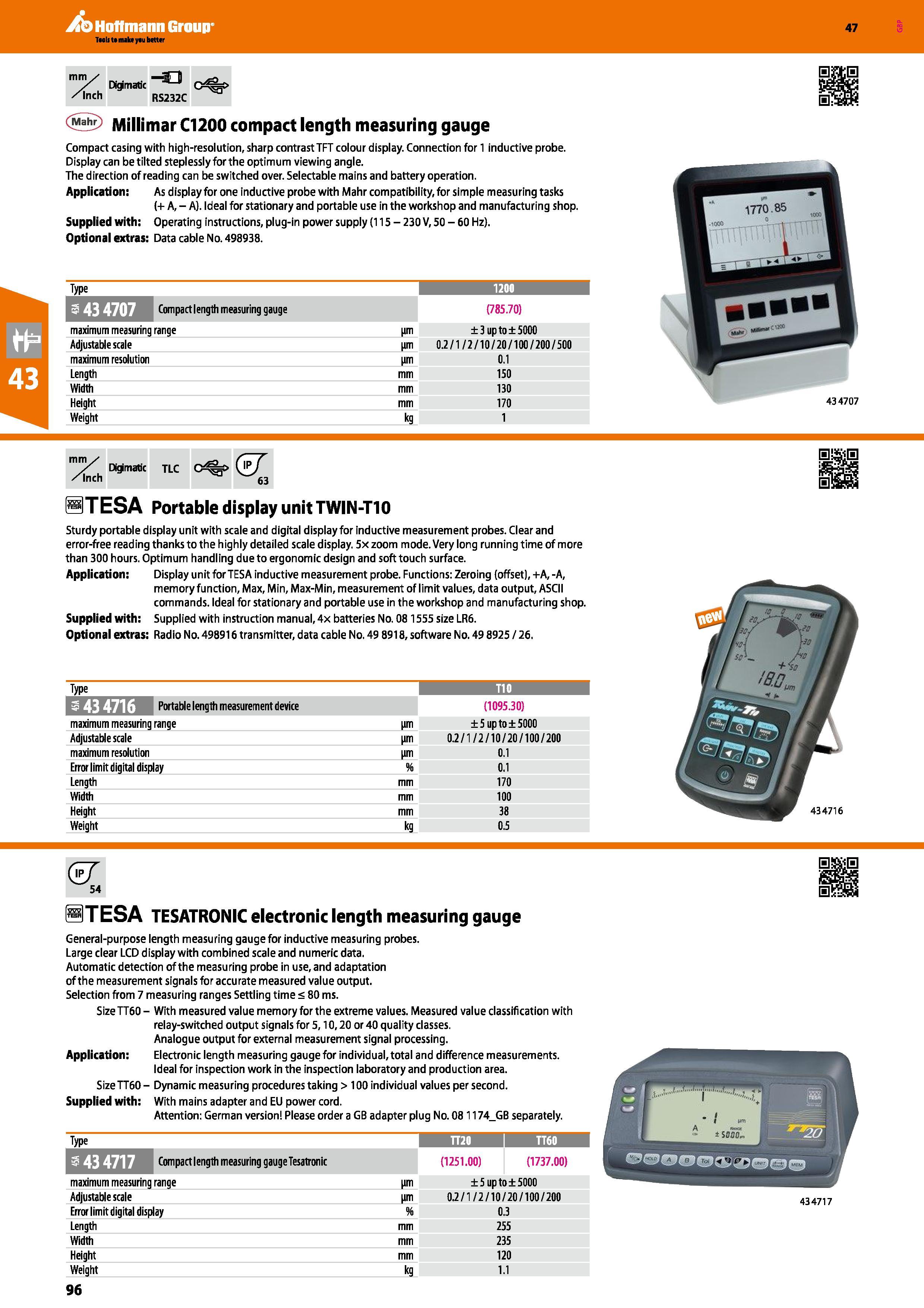

96 Каталог HOFFMANN GROUP 2016 Слесарно-монтажный и измерительный инструмент Вер. 47 ENG Стр.96

Каталог HOFFMANN GROUP 2016 Слесарный и мерительный инструмент Стр. 96 0096 ENG Lab2u

Hoffmann Group 47 mms /Inch Digimatic -SJ RS232C <5 Millimar C1200 compact length measuring gauge Compact casing with high-resolution, sharp contrast TFT colour display. Connection for 1 inductive probe. Display can be tilted steplessly for the optimum viewing angle. The direction of reading can be switched over. Selectable mains and battery operation. Application: As display for one inductive probe with Mahr compatibility, for simple measuring tasks (+ A, - A). Ideal for stationary and portable use in the workshop and manufacturing shop. Supplied with: Operating instructions, plug-in power supply (115 - 230 V, 50 - 60 Hz). Optional extras: Data cable No. 498938. Type 1 1201 I Compact length measuring gauge (785.70) maximum measuring range im ± 3 up to ± 5000 Adjustable scale im 0.2/1/2/10/20/100 / 200/500 maximum resolution im 0.1 Length mm 150 Width mm 130 Height mm 170 Weight kg 1 mms /Inch Dkjmatic TLC 63 3TESA Portable display unit TWIN-T10 Sturdy portable display unit with scale and digital display for inductive measurement probes. Clear and error-free reading thanks to the highly detailed scale display. 5xzoom mode. Very long running time of more than 300 hours. Optimum handling due to ergonomic design and soft touch surface. Application: Display unit forTESA inductive measurement probe. Functions: Zeroing (offset), +A, -A, memory function. Max, Min, Max-Min, measurement of limit values, data output, ASCII commands. Ideal for stationary and portable use in the workshop and manufacturing shop. Supplied with: Supplied with instruction manual, 4x batteries No. 08 1555 size LR6. Optional extras: Radio No. 498916 transmitter, data cable No. 49 8918, software No. 49 8925 / 26. Type T10 I y tF W TM Portable lenoth measurement device (1095.30) maximum measuring range im ±5 up to ±5000 Adjustable scale im 0.2/1/2/10/20/100/200 maximum resolution im 0.1 Error limit digital display % 0.1 Length mm 170 Width mm 100 Height mm 38 Weight kg 0.5 (57 54 STESA TESATRONIC electronic length measuring gauge General-purpose length measuring gauge for inductive measuring probes. Large clear LCD display with combined scale and numeric data. Automatic detection of the measuring probe in use, and adaptation of the measurement signals for accurate measured value output. Selection from 7 measuring ranges Settling time < 80 ms. SizeTT60- With measured value memory for the extreme values. Measured value classification with relay-switched output signals for 5,10,20 or 40 quality classes. Analogue output for external measurement signal processing. Application: Electronic length measuring gauge for individual, total and difference measurements. Ideal for inspection work in the inspection laboratory and production area. SizeTT60- Dynamic measuring procedures taking > 100 individual values per second. Supplied with: With mains adapter and EU power cord. Attention: German version Please order a GB adapter plug No. 081174_GB separately. Type 1 TT20 1 TT60 Compact length measuring gauge Tesatronic (1251.00) (1737.00) maximum measuring range im ±5 up to ±5000 Adjustable scale um 0.2/1/2/10/20/100/200 Error limit digital display % 0.3 434717 Length Width Height Weight 96 mm kg 255 235 120 1.1 434707 434716
