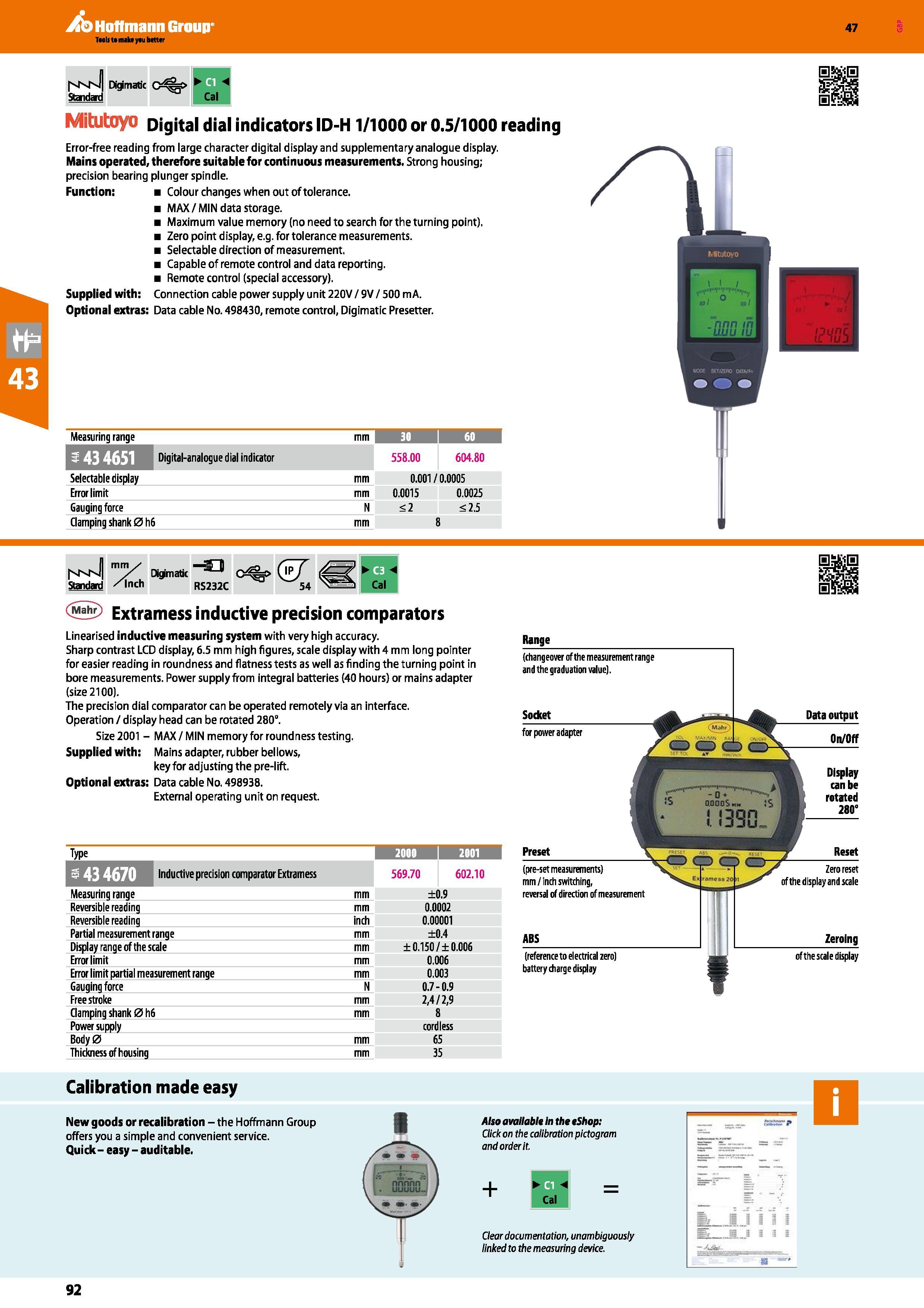

Hoffmann Group 47 I'vM'J Digimatic C= is> ffl < Standard Cal Mitutoyo Digital dial indicators ID-H1/1000 or 0.5/1000 reading Error-free reading from large character digital display and supplementary analogue display. Mains operated, therefore suitable for continuous measurements. Strong housing; precision bearing plunger spindle. Function: Colour changes when out of tolerance. MAX/MIN data storage. Maximum value memory (no need to search for the turning point). Zero point display, e.g. for tolerance measurements. Selectable direction of measurement. Capable of remote control and data reporting. Remote control (special accessory). Supplied with: Connection cable power supply unit 220V / 9V / 500 mA. Optional extras: Data cable No. 498430, remote control, Digimatic Presetter. Measuring range mm llilBElEll Digital-analogue dial indicator 558.00 604.80 Selectable display mm 0.001/0.0005 Error limit mm 0.0015 0.0025 Gauging force N <2 <2.5 Clamping shank 0 h6 mm 8 nmv Djgjmatk O =o Qp/ Standard /Inch RS232C 54 Extramess inductive precision comparators Linearised inductive measuring system with very high accuracy. Sharp contrast LCD display, 6.5 mm high figures, scale display with 4 mm long pointer for easier reading in roundness and flatness tests as well as finding the turning point in bore measurements. Power supply from integral batteries (40 hours) or mains adapter (size 2100). The precision dial comparator can be operated remotely via an interface. Operation / display head can be rotated 280°. Size 2001 - MAX / MIN memory for roundness testing. Supplied with: Mains adapter, rubber bellows, key for adjusting the pre-lift. Optional extras: Data cable No. 498938. External operating unit on request. Range (changeover of the measurement range and the graduation value). Type iHnHHrni Inductive precision comparator Extramess 569.70 602.10 Measuring range mm ±0.9 Reversible reading mm 0.0002 Reversible reading inch 0.00001 Partial measurement range mm ±0.4 Display range of the scale mm ±0.150/±0.006 Error limit mm 0.006 Error limit partial measurement range mm 0.003 Gauging force N 0.7-0.9 Free stroke mm 2,4/2,9 Clamping shank 0 h6 mm 8 Power supply cordless Body0 mm 65 Thickness of housing mm 35 Calibration made easy New goods or recalibration - the Hoffmann Group offers you a simple and convenient service. Quick - easy - auditable. Also avallablt in tht tShop: Click on the calibration pictogram and order it. + 13 Cal Clear documentation, unambiguously linked to the measuring device. Display can be rotated 280° (reference to electrical zero) battery diarge display Socket for power adapter Data output On/Off Zeroing of the scale display Preset (pre-set measurements) mm/inch switching, reversal of direction of measurement Zero reset of the display and scale 92
