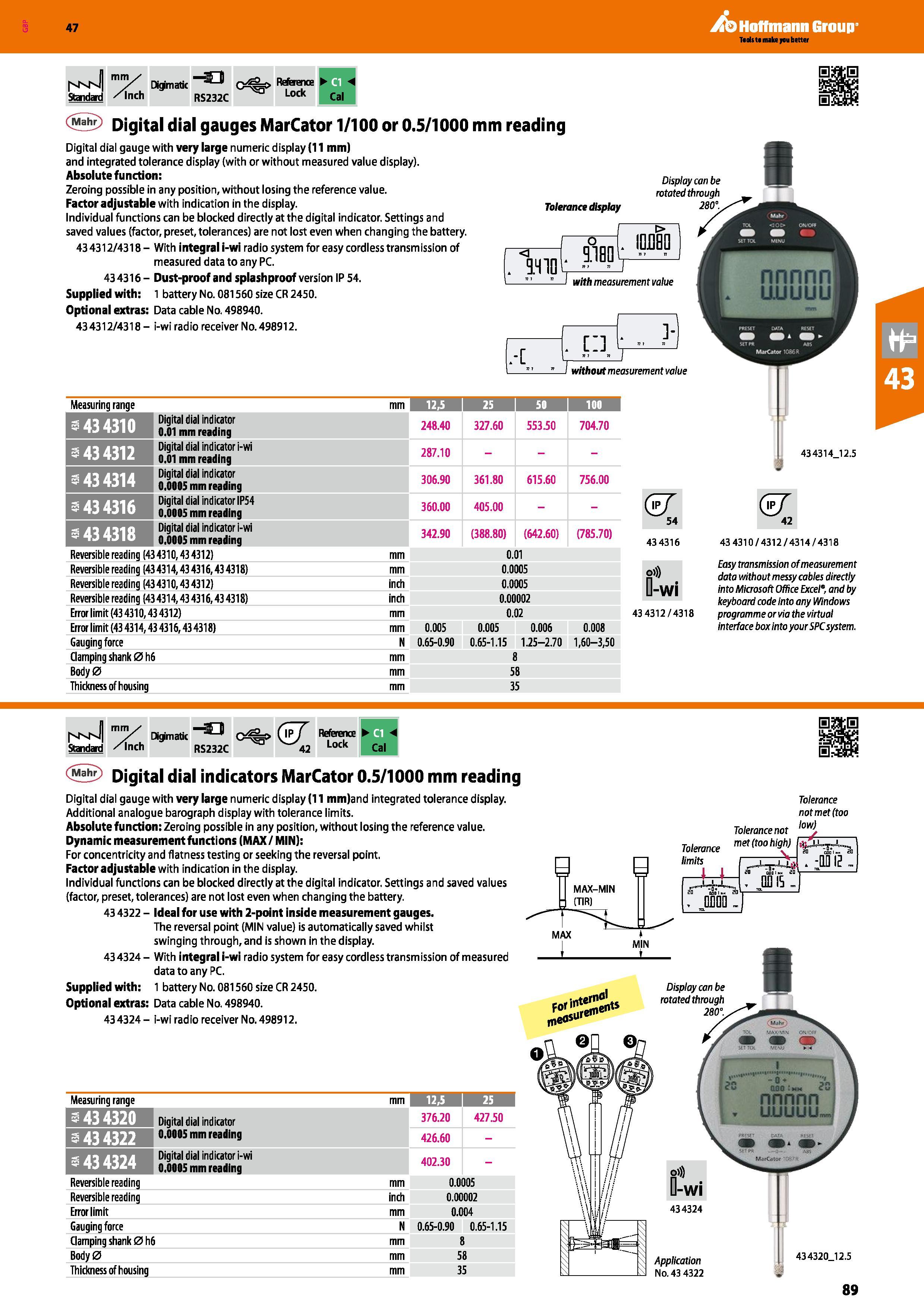

Hoffmann Group 47 "7 Standard /Inch Dkpmatic 5 G RS232C Reference Lock H Cal <5 Digital dial gauges MarCator 1/100 or 0.5/1000 mm reading Digital dial gauge with very large numeric display (11 mm) and integrated tolerance display (with or without measured value display). Absolute function: Zeroing possible in any position, without losing the reference value. Factor adjustable with indication in the display. Individual functions can be blocked directly at the digital indicator. Settings and saved values (factor, preset, tolerances) are not lost even when changing the battery. 434312/4318- With integral i-wi radio system for easy cordless transmission of measured data to any PC. 434316 - Dust-proof and splashproof version IP 54. Supplied with: 1 battery No. 081560 size CR 2450. Optional extras: Data cable No. 498940. 434312/4318 - i-wi radio receiver No.498912. Tolerance display Display can be rotated through 280°. 1410 \mw with measurement value L-c i - I without measurement value Measuring range mm 12,5 I 25 50 i 100 1 Digital dial indicator 0.01 mm reading 248.40 327.60 553.50 704.70 s 43 4312 Digital dial indicator i-wi 0.01 mm reading 287.10 Digital dial indicator 0.0005 mm reading 306.90 361.80 615.60 756.00 3 43 4316 Digital dial indicator IP54 0.0005 mm reading 360.00 405.00 Digital dial indicator i-wi 0.0005 mm reading 342.90 (388.80) (642.60) (785.70) Reversible reading (434310,434312) mm 0.01 Reversible reading (434314,43 4316,43 4318) mm 0.0005 Reversible reading (434310,43 4312) inch 0.0005 Reversible reading (434314,43 4316,43 4318) inch 0.00002 Error limit (43 4310,43 4312) mm 0.02 Error limit (43 4314,43 4316,434318) mm 0.005 0.005 0.006 0.008 Gauging force N 0.65-0.90 0.65-1.15 1.25-2.70 1,60-3,50 Clamping shank 0 h6 mm 8 Body0 mm 58 Thickness of housing mm 35 (zT 54 43 4316 U-WI 43 4312/4318 434314_12.5 (57 42 43 4310/4312/4314/4318 Easy transmission of measurement data without messy cables directly into Microsoft Office Excel’ and by keyboard code into any Windows programme or via the virtual in terface box into your SPC system. Standard /Inch Digimatic i 6 RS232C o%>(zT 42 Reference Lock Sal Digital dial indicators MarCator 0.5/1000 mm reading Digital dial gauge with very large numeric display (11 mm)and integrated tolerance display. Additional analogue barograph display with tolerance limits. Absolute function: Zeroing possible in any position, without losing the reference value. Dynamic measurement functions (MAX / MIN): For concentricity and flatness testing or seeking the reversal point. Factor adjustable with indication in the display. Individual functions can be blocked directly at the digital indicator. Settings and saved values (factor, preset, tolerances) are not lost even when changing the battery. 43 4322 - Ideal for use with 2-point inside measurement gauges. The reversal point (MIN value) is automatically saved whilst swinging through, and is shown in the display. 434324- With integral i-wi radio system for easy cordless transmission of measured data to any PC. Supplied with: 1 battery No. 081560 size CR 2450. Optional extras: Data cable No. 498940. 43 4324 - i-wi radio receiver No. 498912. Tolerance not met (too high) Tolerance not met (too low) y Measuring range mm 12,5 1 25 S 3 43 4320 Digital dial indicator 376.20 427.50 s 43 4322 0.0005 mm reading 426.60 IfclW Digital dial indicator i-wi 0.0005 mm reading 402.30 Reversible reading mm 0.0005 Reversible reading inch 0.00002 Error limit mm 0.004 Gauging force N 0.65-0.90 0.65-1.15 Clamping shank 0 h6 mm 8 Body0 mm 58 Thickness of housing mm 35
