86 Каталог HOFFMANN GROUP 2016 Слесарно-монтажный и измерительный инструмент Вер. 47 ENG Стр.86

Каталог HOFFMANN GROUP 2016 Слесарный и мерительный инструмент Стр. 86 0086 ENG Lab2u

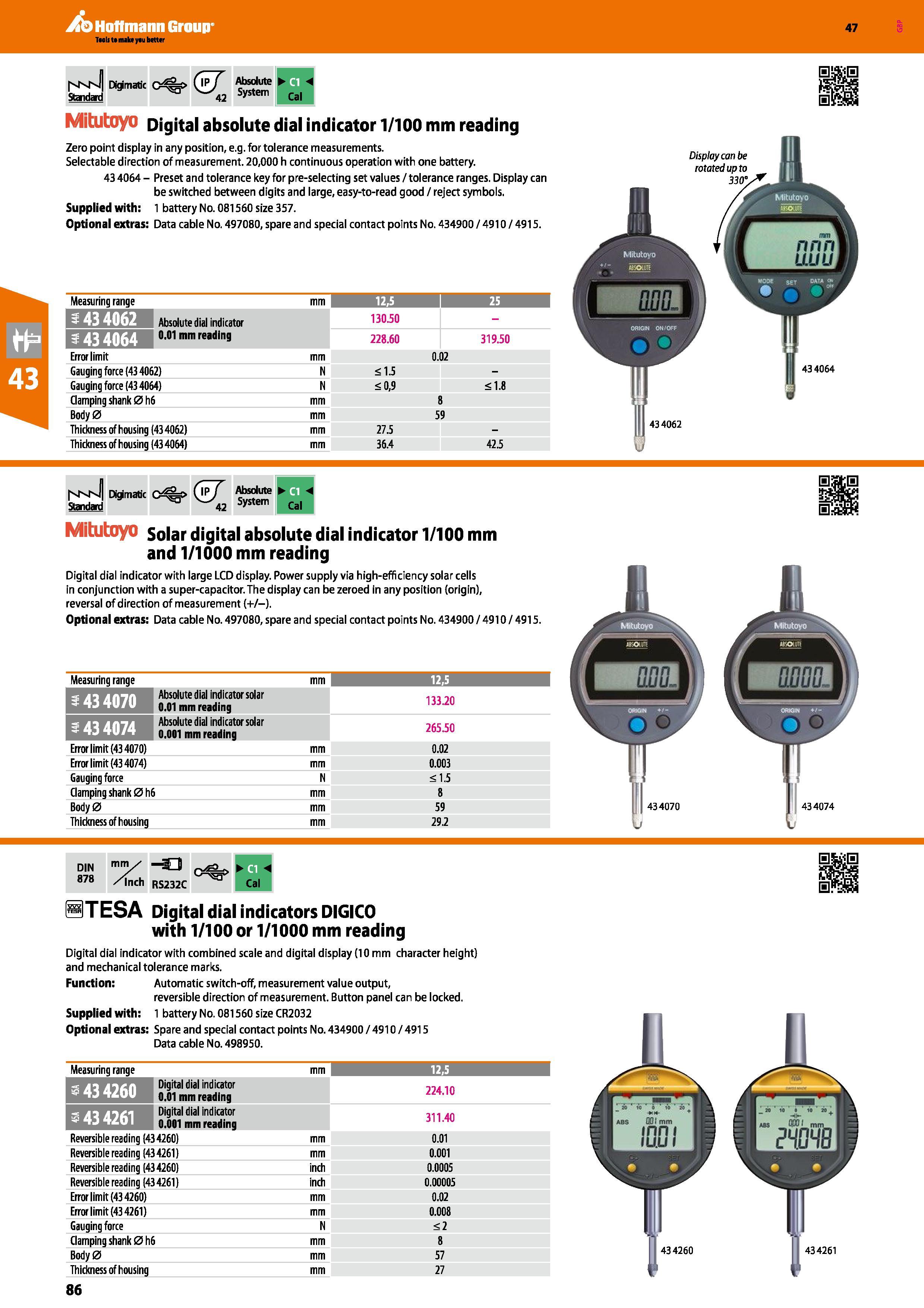

Hoffmann Group 47 Standard Digimatic c<%>& 42 Absolute System Cal Mitutoyo Digital absolute dial indicator 1/100 mm reading Zero point display in any position, e.g. for tolerance measurements. Selectable direction of measurement. 20,000 h continuous operation with one battery. 43 4064 - Preset and tolerance key for pre-selecting set values / tolerance ranges. Display can be switched between digits and large, easy-to-read good / reject symbols. Supplied with: 1 battery No. 081560 size 357. Optional extras: Data cable No. 497080, spare and special contact points No. 434900 / 4910 / 4915. Measuring range mm 12,5 I 25 3 43 4062 130.50 - 3 43 4064 BHSil 228.60 319.50 Error limit mm 0.02 Gauging force (43 4062) N <1.5 - Gauging force (43 4064) N <0,9 <1.8 Clamping shank 0 h6 mm 8 Body0 mm 59 Thickness of housing (43 4062) mm 27.5 - Thickness of housing (43 4064) mm 36.4 42.5 nmJ Standard Digimatic c<%>& 42 Absolute System Cal Mitutoyo solar digital absolute dial indicator 1/100 mm and 1/1000 mm reading Digital dial indicator with large LCD display. Power supply via high-efficiency solar cells in conjunction with a super-capacitor. The display can be zeroed in any position (origin), reversal of direction of measurement (+/-). Optional extras: Data cable No. 497080, spare and special contact points No. 434900 / 4910 / 4915. Measuring range mm 12,5 1 Absolute dial indicator solar 0.01 mm reading 133.20 Absolute dial indicator solar 0.001 mm reading 265.50 Error limit (43 4070) mm 0.02 Error limit (43 4074) mm 0.003 Gauging force N <1.5 Clamping shank 0h6 mm 8 Body0 mm 59 Thickness of housing mm 29.2 434070 DIN 878 mm /inch -SJ RS232C H Cal STESA Digital dial indicators DIGICO with 1/100 or 1/1000 mm reading Digital dial indicator with combined scale and digital display (10 mm character height) and mechanical tolerance marks. Function: Automatic switch-off, measurement value output, reversible direction of measurement. Button panel can be locked. Supplied with: 1 battery No. 081560 size CR2032 Optional extras: Spare and special contact points No. 434900 / 4910 / 4915 Data cable No. 498950. Measuring range mm 12,5 1 43 4260 Digital dial indicator 0.01 mm reading 224.10 3 43 4261 Digital dial indicator 0.001 mm reading 311.40 Reversible reading (434260) mm 0.01 Reversible reading (434261) mm 0.001 Reversible reading (434260) inch 0.0005 Reversible reading (434261) inch 0.00005 Error limit (43 4260) mm 0.02 Error limit (43 4261) mm 0.008 Gauging force N <2 Clamping shank 0h6 mm 8 Body0 mm 57 Thickness of housing mm 27 434260 86 Display can be rotated up to 43 4064 434062 434074 434261
