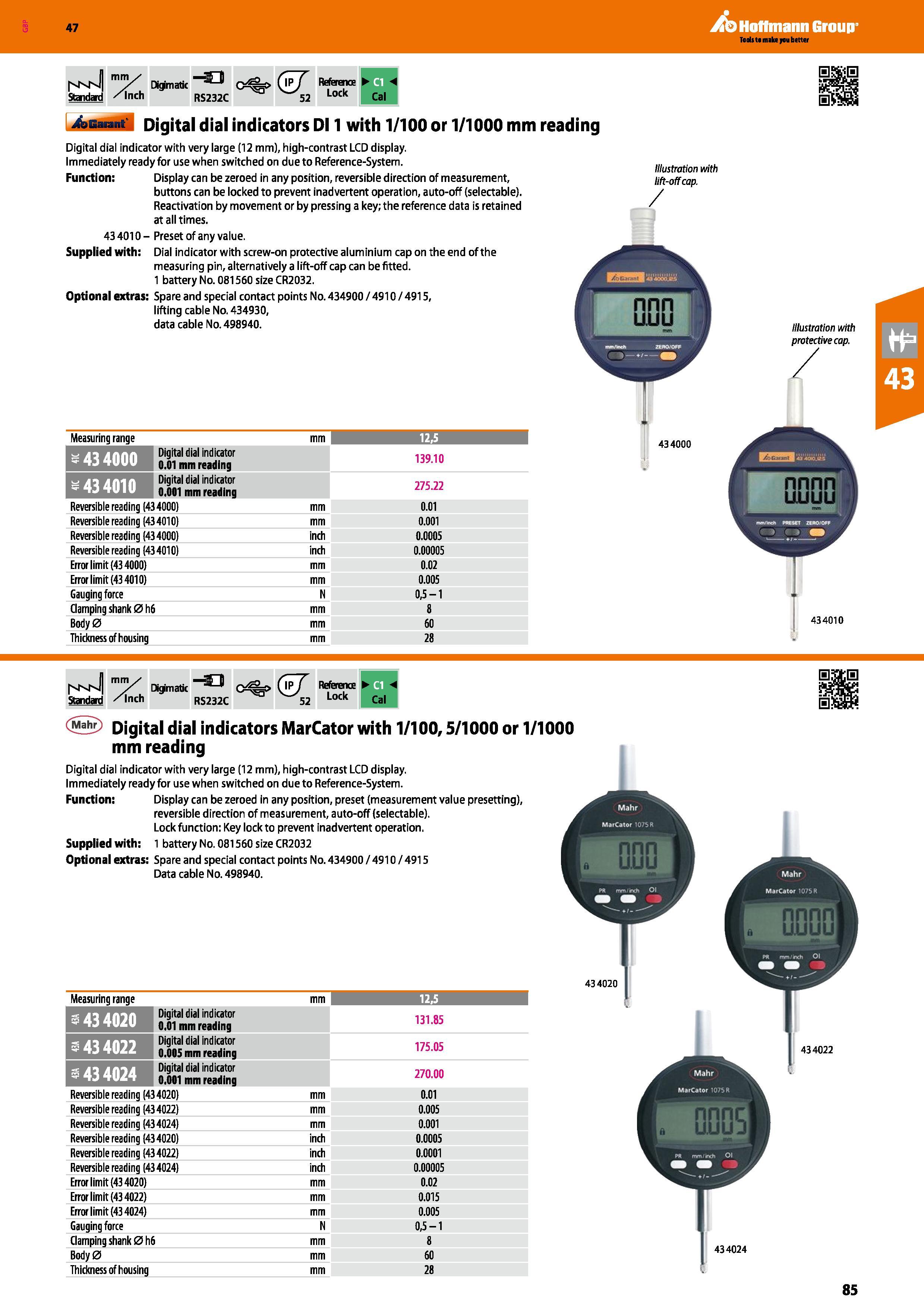

Hoffmann Group 47 "7 Standard /Inch Dkpmatic 5 G RS232C C%> ( J 52 Reference Lock Cal 4aBM id Digital dial indicators Dl 1 with 1/100 or 1/1000 mm reading Digital dial indicator with very large (12 mm), high-contrast LCD display. Immediately ready for use when switched on due to Reference-System. Function: Display can be zeroed in any position, reversible direction of measurement, buttons can be locked to prevent inadvertent operation, auto-off (selectable). Reactivation by movement or by pressing a key; the reference data is retained at all times. 434010- Preset of any value. Supplied with: Dial indicator with screw-on protective aluminium cap on the end of the measuring pin, alternatively a lift-off cap can befitted. 1 battery No. 081560 size CR2032. Optional extras: Spare and special contact points No. 434900 / 4910 / 4915, lifting cable No. 434930, data cable No. 498940. Illustration with lift-off cap. Illustration with protective cap. Measuring range HIVflfB Digital dial indicator iUI 0.01 mm reading 139.10 HTWTWW Digital dial indicator 0.001 mm reading 275.22 Reversible reading (434000) mm 0.01 Reversible reading (434010) mm 0.001 Reversible reading (434000) inch 0.0005 Reversible reading (434010) inch 0.00005 Error limit (43 4000) mm 0.02 Error limit (43 4010) mm 0.005 Gauging force N 0,5-1 Clamping shank 0 h6 mm 8 Body0 mm 60 Thickness of housing mm 28 434000 434010 Standard /Inch Digimatic 9 6 RS232C c%><£T 52 Reference Lock Scil Digital dial indicators MarCator with 1/100,5/1000 or 1/1000 mm reading Digital dial indicator with very large (12 mm), high-contrast LCD display. Immediately ready for use when switched on due to Reference-System. Function: Display can be zeroed in any position, preset (measurement value presetting), reversible direction of measurement, auto-off (selectable). Lock function: Key lock to prevent inadvertent operation. Supplied with: 1 battery No. 081560 size CR2032 Optional extras: Spare and special contact points No. 434900 / 4910 / 4915 Data cable No. 498940. Measuring range mm 12.5 1 Digital dial indicator lltfUXiifl 0.01 mm reading 131.85 Digital dial indicator 0.005 mm reading 175.05 Digital dial indicator HftkfUXU 0.001 mm reading 270.00 Reversible reading (434020) mm 0.01 Reversible reading (434022) mm 0.005 Reversible reading (434024) mm 0.001 Reversible reading (434020) inch 0.0005 Reversible reading (434022) inch 0.0001 Reversible reading (434024) inch 0.00005 Error limit (43 4020) mm 0.02 Error limit (43 4022) mm 0.015 Error limit (43 4024) mm 0.005 Gauging force N 0,5-1 Clamping shank 0h6 mm 8 Body0 mm 60 Thickness of housing mm 28 434020 434022 434024 85
