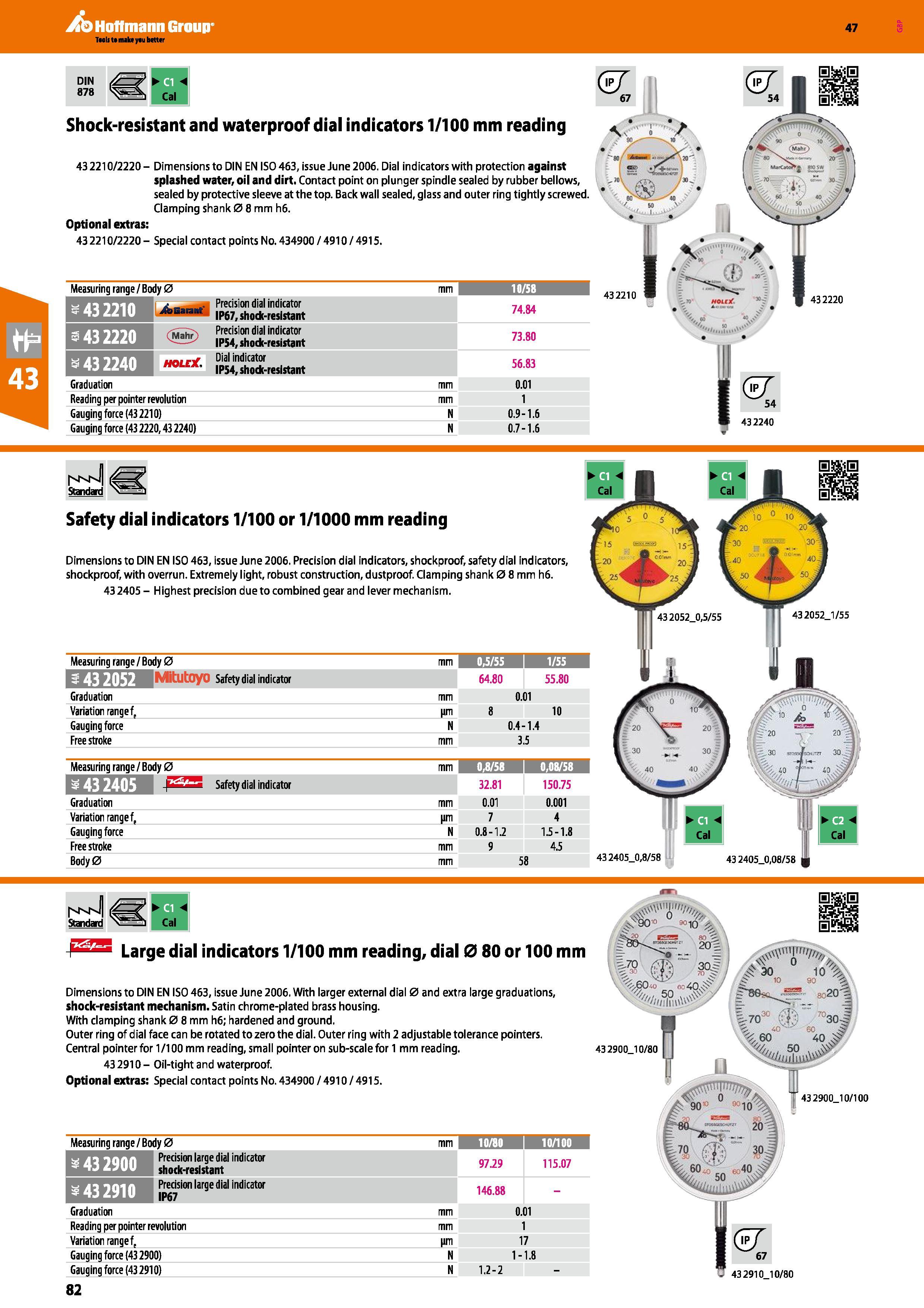

Hoffmann Group 47 DIN 878 Shock-resistant and waterproof dial indicators 1/100 mm reading 432210/2220- Dimensions to DIN EN ISO 463, issue June 2006. Dial indicators with protection against splashed water, oil and dirt. Contact point on plunger spindle sealed by rubber bellows, sealed by protective sleeve at the top. Back wall sealed, glass and outer ring tightly screwed. Clamping shank 0 8 mm h6. Optional extras: 43 2210/2220 - Special contact points No. 434900 / 4910 / 4915. a Precision dial indicator U£Z£U fl bGi,lal>t IP67,shock-resistant 74.84 (MaSV) dial indicator ia l IP54,shod(-r istant 73.80 un. .j Dial indicator HifdkUfl IP54, shock-resistant 56.83 Graduation mm 0.01 Reading per pointer revolution mm 1 Gauging force (43 2210) N 0.9-1.6 Gauging force (43 2220,43 2240) N 0.7-1.6 vmJ Standard Safety dial indicators 1/100 or 1/1000 mm reading Dimensions to DIN EN ISO 463, issue June 2006. Precision dial indicators, shockproof, safety dial indicators, shockproof, with overrun. Extremely light, robust construction, dustproof. Clamping shank 0 8 mm h6. 432405 - Highest precision due to combined gear and lever mechanism. Measuring range / Body 0 mm 0,5/55 1 V55 Safety dial indicator 64.80 55.80 Graduation mm 0.01 Variation range f, im 8 10 Gauging force N 0.4-1.4 Free stroke mm 3.5 Measuring range/Body 0 mm 0,8/58 0,08/58 Safety dial indicator 32.81 150.75 Graduation mm 0.01 0.001 Variation range f, im 7 4 Gauging force N 0.8-1.2 1.5-1.8 Free stroke mm 9 4.5 Body0 mm 58 43 2405_0,8/58 43 2405_0,08/58 vmJ Standard r,TrrTS Large dial indicators 1/100 mm reading, dial 0 80 or 100 mm Dimensions to DIN EN ISO 463, issue June 2006. With larger external dial 0 and extra large graduations, shock-resistant mechanism. Satin chrome-plated brass housing. With clamping shank 0 8 mm h6; hardened and ground. Outer ring of dial face can be rotated to zero the dial. Outer ring with 2 adjustable tolerance pointers. Central pointer for 1/100 mm reading, small pointer on sub-scale for 1 mm reading. 43 2910 - Oil-tight and waterproof. Optional extras: Special contact points No. 434900 / 4910 / 4915. Measuring range/Body 0 mm 10/80 1 10/100 f Precision large dial indicator shock-resistant 97.29 115.07 IPHfWl Precision large dial indicator iP67 146.88 - Graduation mm 0.01 Reading per pointer revolution mm 1 Variation range f, im 17 Gauging force (43 2900) N 1-1.8 Gauging force (43 2910) N 1.2-2 - 82 43 2910 1 0/80 432900_10/80 432900_10/100
