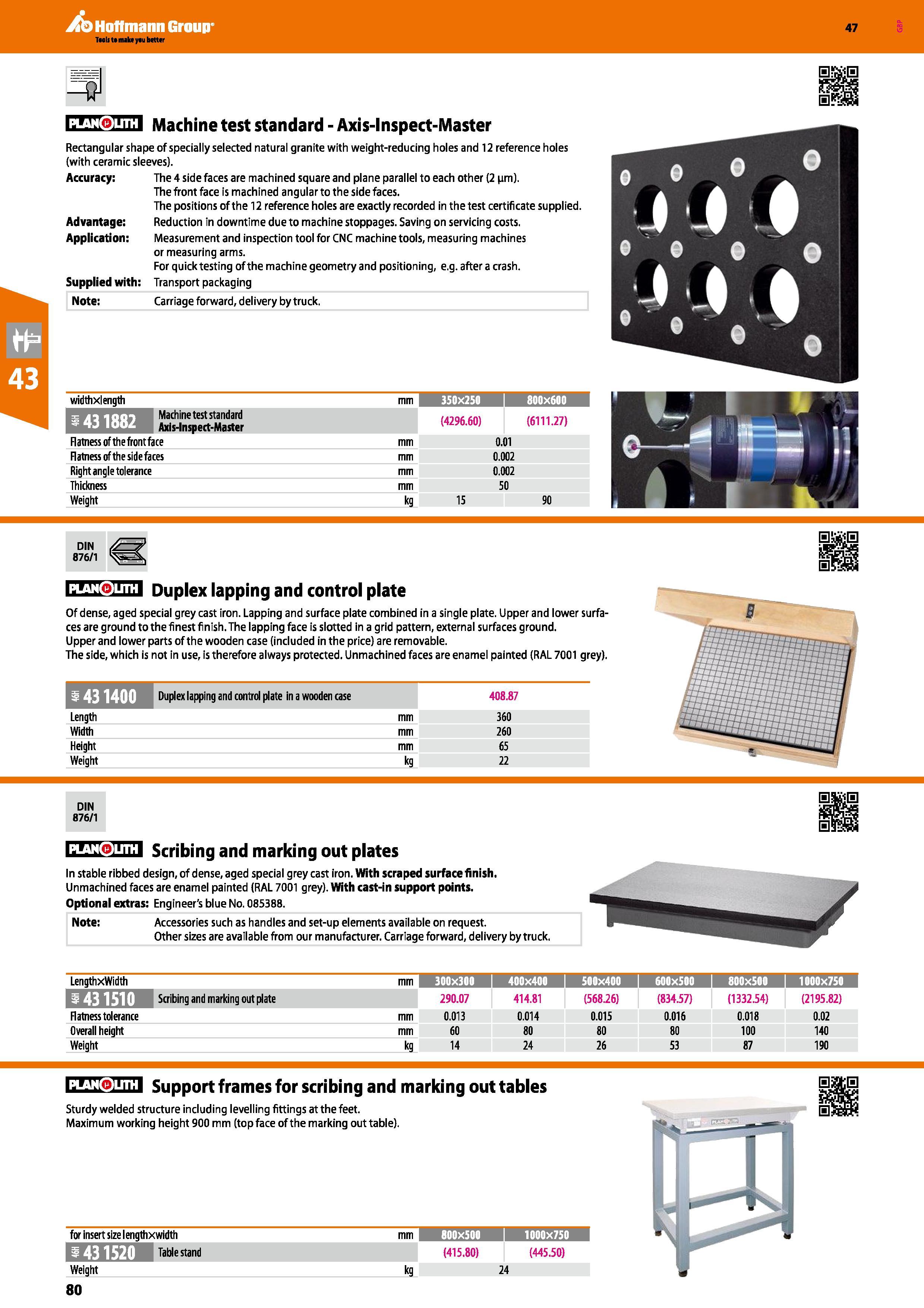

80 Каталог HOFFMANN GROUP 2016 Слесарно-монтажный и измерительный инструмент Вер. 47 ENG Стр.80

Каталог HOFFMANN GROUP 2016 Слесарный и мерительный инструмент Стр. 80 0080 ENG Lab2u

Hoffmann Group 47 planQuth Machine test standard - Axis-lnspect-Master Rectangular shape of specially selected natural granite with weight-reducing holes and 12 reference holes (with ceramic sleeves). Accuracy: Advantage: Application: Supplied with: Note: The 4 side faces are machined square and plane parallel to each other (2 (am). The front face is machined angular to the side faces. The positions of the 12 reference holes are exactly recorded in the test certificate supplied. Reduction in downtime due to machine stoppages. Saving on servicing costs. Measurement and inspection tool for CNC machine tools, measuring machines or measuring arms. For quick testing of the machine geometry and positioning, e.g. after a crash. Transport packaging Carriage forward, delivery by truck. widthxlength mm 350x250 1 800x600 m A ’ BBTWfHW Machine test standard HUlLUfl Axis-lnspect-Master (4296.60) (6111.27) : tl Flatness of the front face mm 0.01 IB IH i 1 Flatness of the side faces mm 0.002 w 5 ini fi Right angle tolerance mm 0.002 Thickness mm 50 A Weight 90 PLAN0UTH Duplex lapping and control plate Of dense, aged special grey cast iron. Lapping and surface plate combined in a single plate. Upper and lower surfaces are ground to the finest finish. The lapping face is slatted in a grid pattern, external surfaces ground. Upper and lower parts of the wooden case (included in the price) are removable. The side, which is not in use, is therefore always protected. Unmachined faces are enamel painted (RAL 7001 grey). ZEiEMiM Duplex lapping and control plate in a wooden case 408.87 Length mm 360 Width mm 260 Height mm 65 Weight kg 22 DIN 876/1 PLAN0UTH Scribing and marking out plates In stable ribbed design, of dense, aged special grey cast iron. With scraped surface finish. Unmachined faces are enamel painted (RAL 7001 grey). With cast-in support points. Optional extras: Engineer's blue No. 085388. Note: Accessories such as handles and set-up elements available on request. Other sizes are available from our manufacturer. Carriage forward, delivery by truck. LengthxWidth mm 300x300 i 400x400 500x400 i 600x500 I 800x500 I 1000x750 b El LI III Scribing and markinaoutDlate 290.07 414.81 (568.26) (834.57) (1332.54) (2195.82) Flatness tolerance mm 0.013 0.014 0.015 0.016 0.018 0.02 Overall height mm 60 80 80 80 100 140 Weight kg 14 24 26 53 87 190 PLAN0UTH Support frames for scribing and marking out tables Sturdy welded structure including levelling fittings at the feet. Maximum working height 900 mm (top face of the marking out table). for insert size lengthxwidth 100x500 I 1000x750 1 bs t ft LtJ 11 Table stand (415.80) (445.50) Weight kg 24 80
