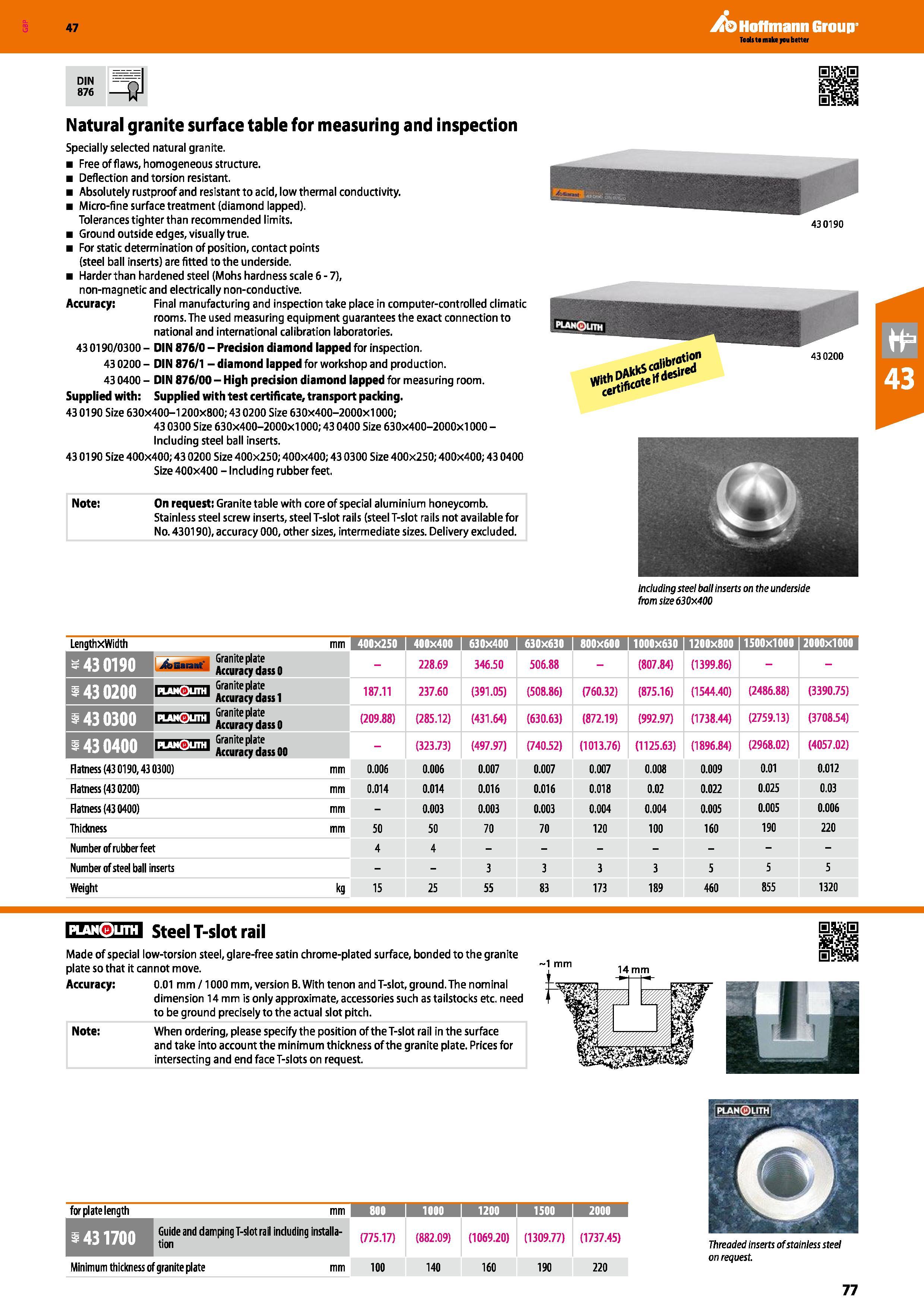

Hoffmann Group 47 DIN 876 Lllili S W Natural granite surface table for measuring and inspection Specially selected natural granite. Free of flaws, homogeneous structure. Deflection and torsion resistant. Absolutely rustproof and resistant to acid, low thermal conductivity. Micro-fine surface treatment (diamond lapped). Tolerances tighter than recommended limits. Ground outside edges, visually true. For static determination of position, contact points (steel ball inserts) are fitted to the underside. Harder than hardened steel (Mohs hardness scale 6 - 7), non-magnetic and electrically non-conductive. Accuracy: Final manufacturing and inspection take place in computer-controlled climatic rooms. The used measuring equipment guarantees the exact connection to national and international calibration laboratories. 43 0190/0300 - DIN 876/0 - Precision diamond lapped for inspection. 43 0200 - DIN 876/1 - diamond lapped for workshop and production. 43 0400 - DIN 876/00 - High precision diamond lapped for measuring room. Supplied with: Supplied with test certificate, transport packing. 43 0190 Size 630x400-1200x800; 43 0200 Size 630x400-2000x1000; 43 0300 Size 630x400-2000x1000; 43 0400 Size 630x400-2000x1000 -Including steel ball inserts. 43 0190 Size 400x400; 43 0200 Size 400x250; 400x400; 43 0300 Size 400x250; 400x400; 43 0400 Size 400x400 - Including rubber feet. V.g-oo, 5 m 430190 430200 Note: On request; Granite table with core of special aluminium honeycomb. Stainless steel screw inserts, steel T-slot rails (steel T-slot rails not available for No. 430190), accuracy 000, other sizes, intermediate sizes. Delivery excluded. Including steel ball inserts on the underside from size 630x400 LengthxWidth mm 400X250 I 400X400 I 630X400 I 630X630 I 800X600 11000X630 11200X800 11500x1000 I 2000x1000 1 BBHl ££ £.. - 228.69 346.50 506.88 - (807.84) (1399.86) =>££51.1 187.11 237.60 (391.05) (508.86) (760.32) (875.16) (1544.40) (2486.88) (3390.75) l-H’.'olii.ll Granite plate Accuracy dass 0 (209.88) (285.12) (431.64) (630.63) (872.19) (992.97) (1738.44) (2759.13) (3708.54) - (323.73) (497.97) (740.52) (1013.76) (1125.63) (1896.84) (2968.02) (4057.02) Flatness (43 0190,43 0300) mm 0.006 0.006 0.007 0.007 0.007 0.008 0.009 0.01 0.012 Flatness (43 0200) mm 0.014 0.014 0.016 0.016 0.018 0.02 0.022 0.025 0.03 Flatness (43 0400) mm - 0.003 0.003 0.003 0.004 0.004 0.005 0.005 0.006 Thickness mm 50 50 70 70 120 100 160 190 220 Number of rubber feet 4 4 - Number of steel ball inserts 3 3 3 3 5 5 5 Weight kg 15 25 55 83 173 189 460 855 1320 PLAN0UTH Steel T-slot rail Made of special low-torsion steel, glare-free satin chrome-plated surface, bonded to the granite plate so that it cannot move. Accuracy: 0.01 mm /1000 mm, version B.With tenon and T-slot, ground. The nominal dimension 14 mm is only approximate, accessories such as tailstocks etc. need to be ground precisely to the actual slot pitch. Note: When ordering, please specify the position of the T-slot rail in the surface and take into account the minimum thickness of the granite plate. Prices for intersecting and end face T-slots on request. 1 mm 14 mm for plate length mm 1000 i 1200 i 1500 j 2000 \ Guide and damping T-slot rail including installa-tion (775.17) (882.09) (1069.20) (1309.77) (1737.45) Minimum thickness of granite plate mm 100 140 160 190 220 Threaded inserts of stainless steel on request 77
