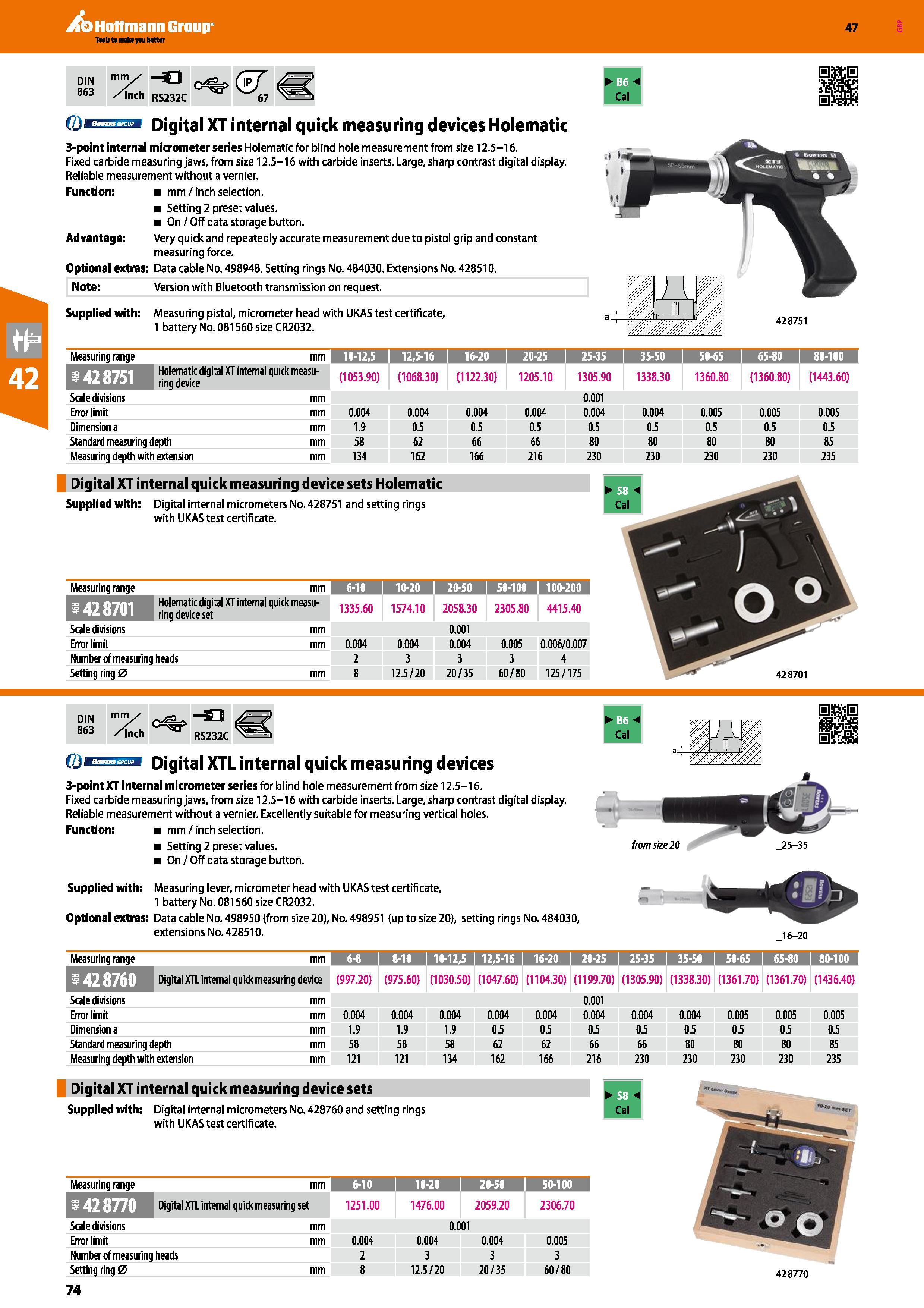

Hoffmann Group 47 DIN 863 mm jj 6 /inch RS232C Cal I “ Digital XT internal quick measuring devices Holematic 3-point internal micrometer series Holematic for blind hole measurement from size 12.5-16. Fixed carbide measuring jaws, from size 12.5-16 with carbide inserts. Large, sharp contrast digital display. Reliable measurement without a vernier. Function: mm / inch selection. Setting 2 preset values. On /Off data storage button. Advantage: Very quick and repeatedly accurate measurement due to pistol grip and constant measuring force. Optional extras: Data cable No. 498948. Setting rings No. 484030. Extensions No. 428510. Note: Version with Bluetooth transmission on request. Supplied with: Measuring pistol, micrometer head with UKAS test certificate, 1 battery No. 081560 size CR2032. Measuring range mm 10-12,5 I 12,5-16 I 16-20 20-25 I 25-35 i 35-50 i 50-65 65-80 i 80-100 Holematic digital XT internal guick measu-ring device (1053.90) (1068.30) (1122.30) 1205.10 1305.90 1338.30 1360.80 (1360.80) (1443.60) Scale divisions mm 0.001 Error limit mm 0.004 0.004 0.004 0.004 0.004 0.004 0.005 0.005 0.005 Dimension a mm 1.9 0.5 0.5 0.5 0.5 Oi 0.5 0.5 0.5 Standard measuring depth mm 58 62 66 66 80 80 80 80 85 Measuring depth with extension mm 134 162 166 216 230 230 230 230 235 Digital XT internal quick measuring device sets Holematic Supplied with: Digital internal micrometers No. 428751 and setting rings with UKAS test certificate. Measuring range mm 6-10 I 10-20 1 20-50 1 50-100 1 100-200 1 Holematic digital XT internal guick measu-ring device set 1335.60 1574.10 2058.30 2305.80 4415.40 Scale divisions mm 0.001 Error limit mm 0.004 0.004 0.004 0.005 0.006/0.007 Number of measuring heads 2 3 3 3 4 Setting ring 0 mm 8 12.5/20 20/35 60/80 125/175 DIN 863 I 53 Digital XTL internal quick measuring devices 3-point XT internal micrometer series for blind hole measurement from size 12.5-16. Fixed carbide measuring jaws, from size 12.5-16 with carbide inserts. Large, sharp contrast digital display. Reliable measurement without a vernier. Excellently suitable for measuring vertical holes. Function: mm / inch selection. Setting 2 preset values. On/Off data storage button. Supplied with: Measuring lever, micrometer head with UKAS test certificate, 1 battery No. 081560 size CR2032. Optional extras: Data cable No. 498950 (from size 20), No. 498951 (up to size 20), setting rings No. 484030, extensions No. 428510. _16 20 Measuring range mm 6-8 I 8-10 iimaEnrMrEM 20-25 I 25-35 I 35-50 I 50-65 I 65-80 I 80-100 1 Digital XTL internal guick measuring device (997.20) (975.60) (1030.50) (1047.60) (1104.30) (1199.70) (1305.90) (1338.30) (1361.70) (1361.70) (1436.40) Scale divisions mm 0.001 Error limit mm 0.004 0.004 0.004 0.004 0.004 0.004 0.004 0.004 0.005 0.005 0.005 Dimension a mm 1.9 1.9 1.9 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 Standard measuring depth mm 58 58 58 62 62 66 66 80 80 80 85 Measuring depth with extension mm 121 121 134 162 166 216 230 230 230 230 235 Digital XT internal quick measuring device sets Supplied with: Digital internal micrometers No. 428760 and setting rings with UKAS test certificate. Measuring range mm 6-10 i 10-20 i 20-50 50-100 Digital XTL internal guick measuring set 1251.00 1476.00 2059.20 2306.70 Scale divisions mm 0.001 Error limit mm 0.004 0.004 0.004 0.005 Number of measuring heads 2 3 3 3 Setting ring 0 mm 8 12 J / 20 20/35 60/80 74 428770 428701 from size 20 _25-35
