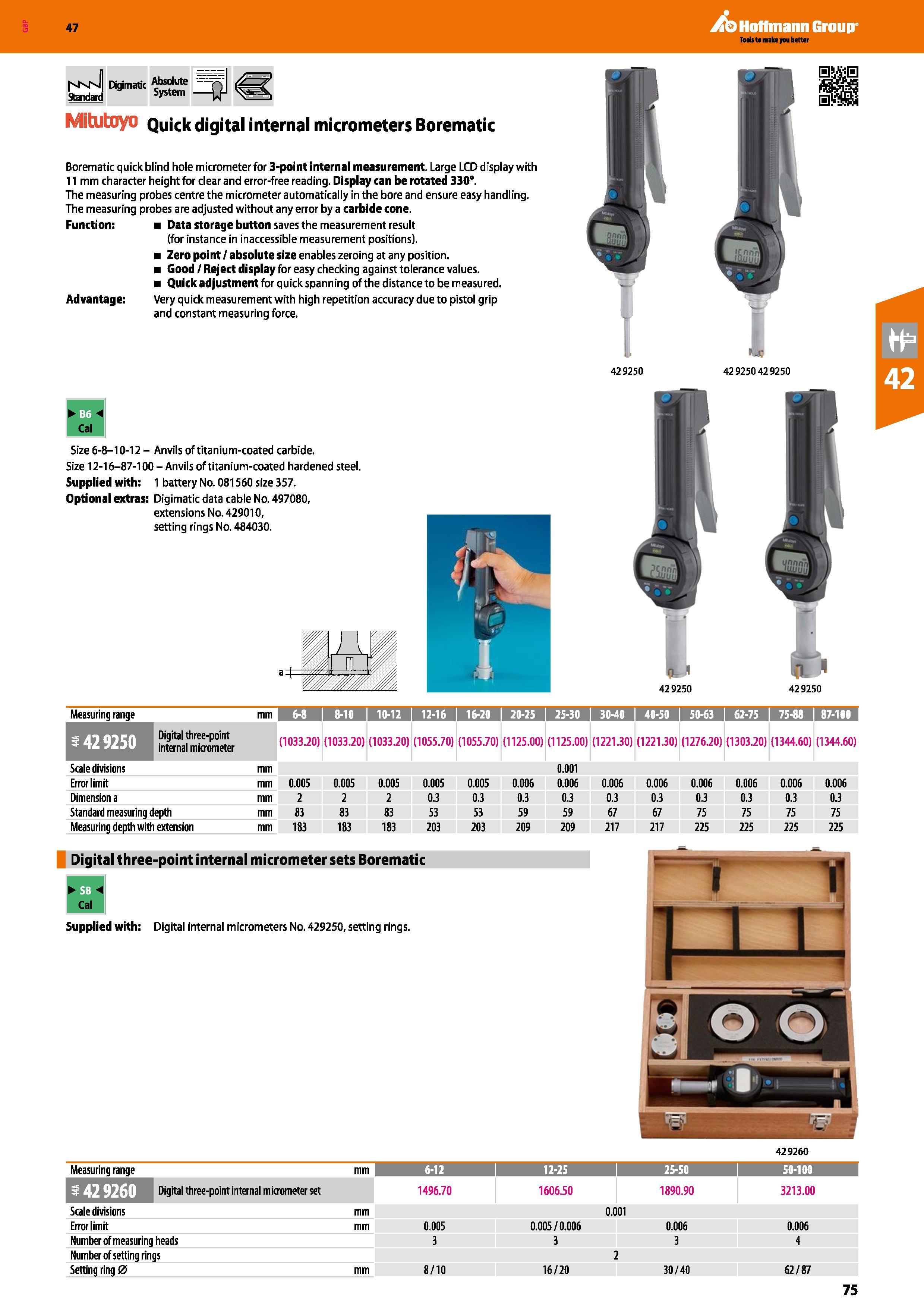

Hoffmann Group 47 NsN Digimatic Absolute teHtad SVStem Mitutoyo Quick digital internal micrometers Borematic Borematic quick blind hole micrometer for 3-point internal measurement. Large LCD display with 11mm character height for clear and error-free reading. Display can be rotated 330°. The measuring probes centre the micrometer automatically in the bore and ensure easy handling. The measuring probes are adjusted without any error by a carbide cone. Function: Data storage button saves the measurement result (for instance in inaccessible measurement positions). Zero point / absolute size enables zeroing at any position. Good / Reject display for easy checking against tolerance values. Quick adjustment for quick spanning of the distance to be measured. Advantage: Very quick measurement with high repetition accuracy due to pistol grip and constant measuring force. 429250 429250 429250 Cal Size 6-8-10-12 - Anvils of titanium-coated carbide. Size 12-16-87-100- Anvils of titanium-coated hardened steel. Supplied with: 1 battery No. 081560 size 357. Optional extras: Digimatic data cable No. 497080, extensions No. 429010, setting rings No. 484030. 429250 429250 Measuring range mm 1 6-8 1 8-10 1 10-12 1 12-16 1 16-20 1 20-25 1 25-30 1 30-40 1 40-50 1 50-63 1 62-75 sam Digital three-point internal micrometer (1033.20) (1033.20) (1033.20) (1055.70) (1055.70) (1125.00) (1125.00) (1221.30) (1221.30) (1276.20) (1303.20) (1344.60) (1344.60) Scale divisions mm 0.001 Error limit mm 0.005 0.005 0.005 0.005 0.005 0.006 0.006 0.006 0.006 0.006 0.006 0.006 0.006 Dimension a mm 2 2 2 0.3 0.3 0.3 0.3 0.3 0.3 0.3 0.3 0.3 0.3 Standard measuring depth mm 83 83 83 53 53 59 59 67 67 75 75 75 75 Measuring depth with extension mm 183 183 183 203 203 209 209 217 217 225 225 225 225 Digital three-point internal micrometer sets Borematic Cal Supplied with: Digital internal micrometers No. 429250, setting rings. 429260 Measuring range mm 6-12 1 12-25 1 25-50 50-100 j Digital three-point internal micrometer set 1496.70 1606.50 1890.90 3213.00 Scale divisions mm 0.001 Error limit mm 0.005 0.005 / 0.006 0.006 0.006 Number of measuring heads 3 3 3 4 Number of setting rings 2 Setting ring 0 mm 8/10 16/20 30/40 62/87 75
