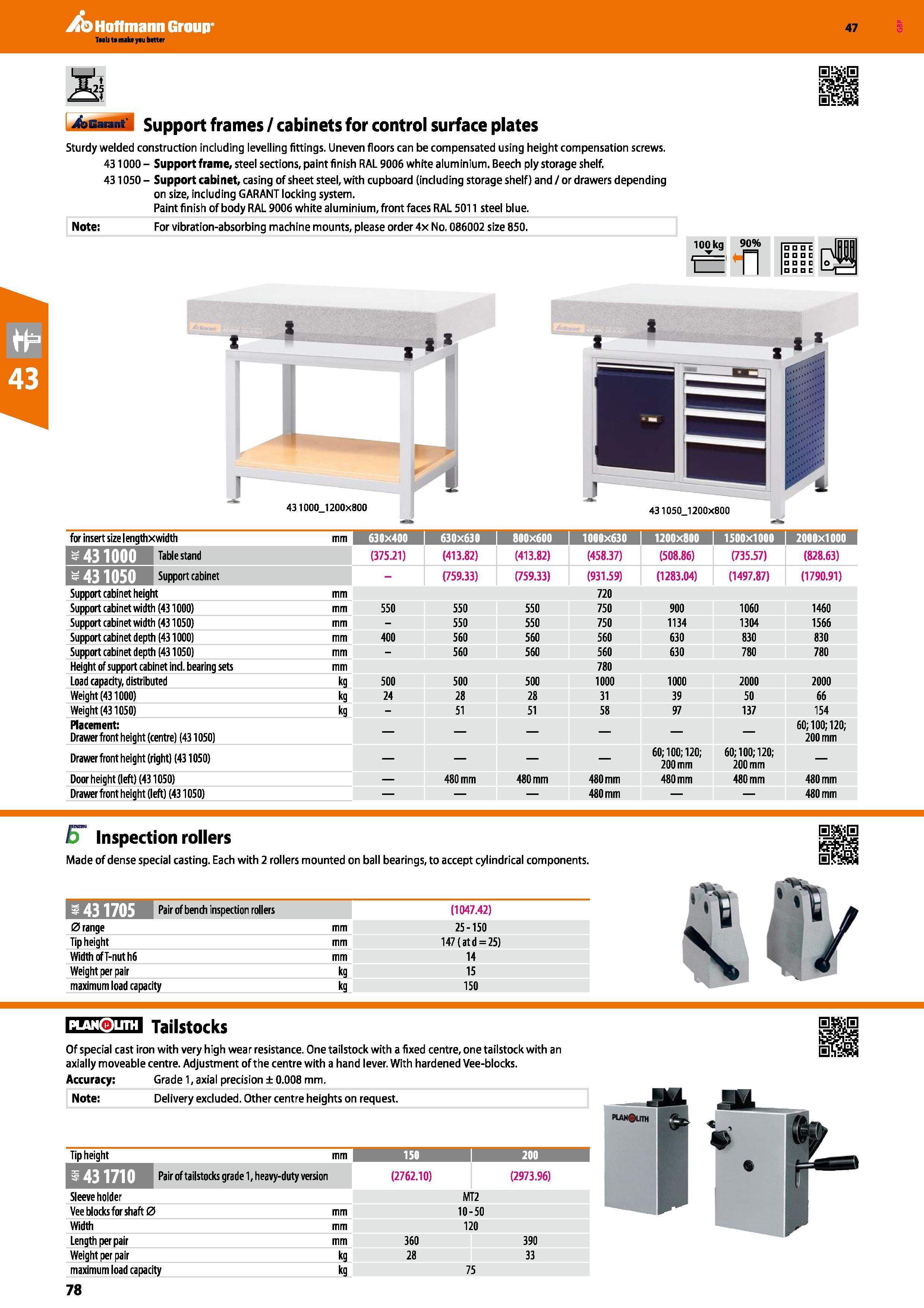

Aisarant Support frames / cabinets for control surface plates Sturdy welded construction including levelling fittings. Uneven floors can be compensated using height compensation screws. 431000 - Support frame, steel sections, paint finish RAL 9006 white aluminium. Beech ply storage shelf. 431050 - Support cabinet, casing of sheet steel, with cupboard (including storage shelf) and / or drawers depending on size, including GARANT locking system. Paint finish of body RAL 9006 white aluminium, front faces RAL 5011 steel blue. Note; For vibration-absorbing machine mounts, please order 4x No. 086002 size 850. 100 kg 90% t n 3 C 1 C 1 E 0 3 E L 431000_1200x800 431050JI 200x800 for insert size lengthxwidth mm 630x400 630x630 800x600 1000x630 1200x800 1500x1000 2000x1000 £jc l l l Table stand (375.21) (413.82) (413.82) (458.37) (508.86) (735.57) (828.63) I-431050 ISB - (759.33) (759.33) (931.59) (1283.04) (1497.87) (1790.91) Support cabinet height mm 720 Support cabinet width (431000) mm 550 550 550 750 900 1060 1460 Support cabinet width (431050) mm - 550 550 750 1134 1304 1566 Support cabinet depth (431000) mm 400 560 560 560 630 830 830 Support cabinet depth (431050) mm - 560 560 560 630 780 780 Height of support cabinet ind. bearing sets mm 780 Load capacity, distributed kg 500 500 500 1000 1000 2000 2000 Weight (431000) kg 24 28 28 31 39 50 66 Weight (431050) kg - 51 51 58 97 137 154 Placement: Drawer front height (centre) (431050) 60; 100; 120; 200 mm Drawer front height (right) (431050) 60; 100; 120; 200 mm 60; 100; 120; 200 mm Door height (left) (431050) 480 mm 480 mm 480 mm 480 mm 480 mm 480 mm Drawer front height (left) (431050) 480 mm 480 mm r Inspection rollers Made of dense special casting. Each with 2 rollers mounted on ball bearings, to accept cylindrical components. 431705 Pair of bench inspection rollers 0 range Tip height Width of T-nut h6 Weight per pair maximum load capacity mm kg kg (1047.42) 25-150 147 (atd = 25) 14 15 150 PLAN0UTH Tailstocks Of special cast iron with very high wear resistance. Onetailstock with a fixed centre, one tailstock with an axially moveable centre. Adjustment of the centre with a hand lever. With hardened Vee-blocks. Accuracy: Grade 1, axial precision ± 0.008 mm. Note: Delivery excluded. Other centre heights on request. "UH uni Tip height mm 150 200 I SSBM Pair of tailstocks grade 1, heavy-duty version (2762.10) (2973.96) Sleeve holder Vee blocks for shaft 0 Width Length per pair Weight per pair maximum load capacity 78 mm 360 28 MT2 10-50 120 75 r 390 33
