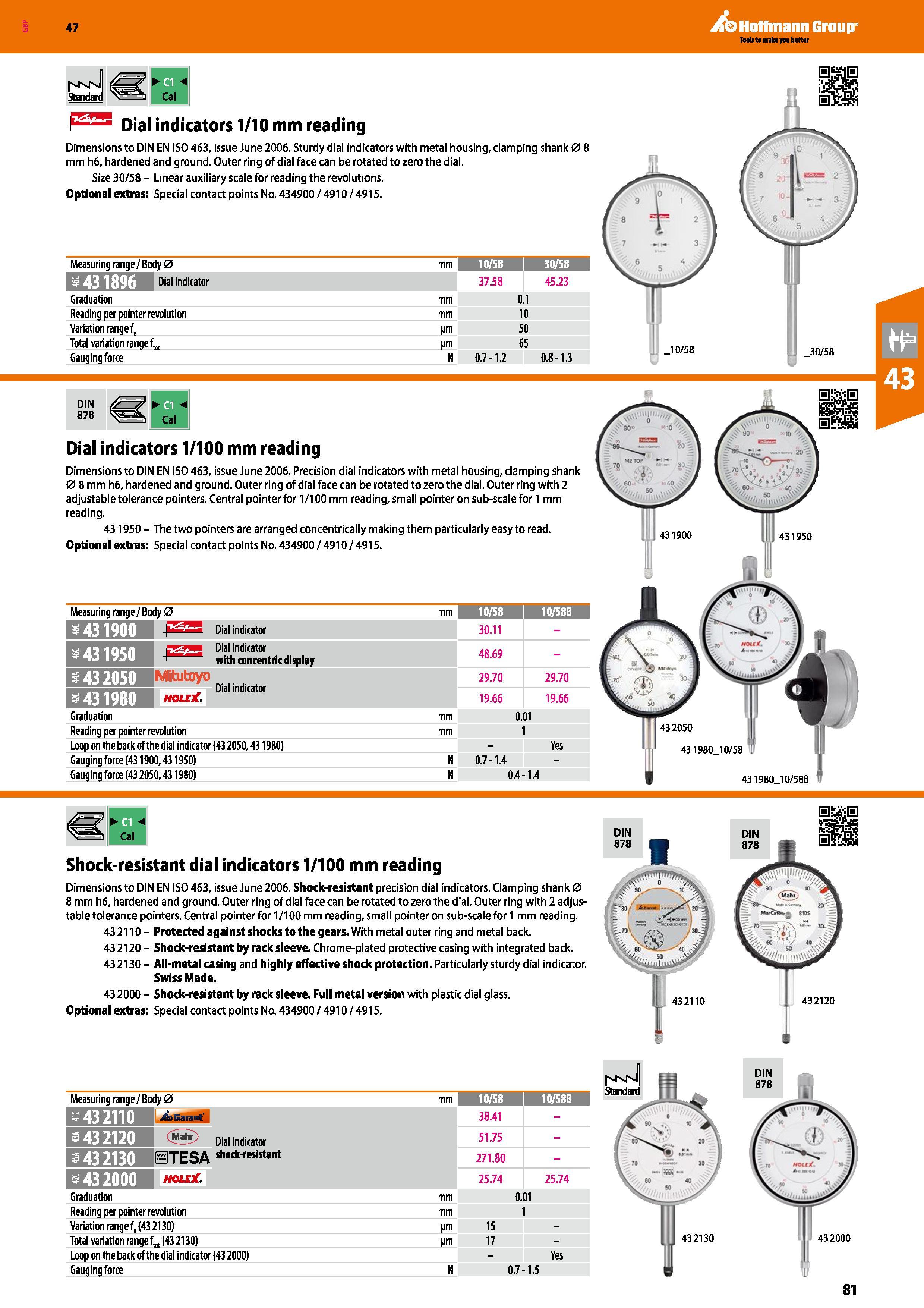

Hoffmann Group 47 Standatd f,TrrTS Dial indicators 1/10 mm reading Dimensions to DIN EN ISO 463, issue June 2006. Sturdy dial indicators with metal housing, clamping shank 0 8 mm h6, hardened and ground. Outer ring of dial face can be rotated to zero the dial. Size 30/58 - Linear auxiliary scale for reading the revolutions. Optional extras: Special contact points No. 434900 / 4910 / 4915. Measuring range/Body 0 mm 10/58 1 30/58 1 431896 MM 37.58 45.23 Graduation mm 0.1 Reading per pointer revolution mm 10 Variation range f, im 50 Total variation range fta urn 65 Gauging force N 0.7-1.2 0.8-1.3 DIN 878 Dial indicators 1/100 mm reading Dimensions to DIN EN ISO 463, issue June 2006. Precision dial indicators with metal housing, clamping shank 0 8 mm h6, hardened and ground. Outer ring of dial face can be rotated to zero the dial. Outer ring with 2 adjustable tolerance pointers. Central pointer for 1/100 mm reading, small pointer on sub-scale for 1 mm reading. 431950 - The two pointers are arranged concentrically making them particularly easy to read. Optional extras: Special contact points No. 434900 / 4910 / 4915. Measuring range / Body 0 mm 10/58 10/58B 431900 Dial indicator 30.11 s 431950 Dial indicator T with concentric display 48.69 s 43 2050 Mitutoyo Dial indicator 29.70 29.70 -431980 HOLEX. 19.66 19.66 Graduation mm 0.01 Reading per pointer revolution mm 1 Loop on the back of the dial indicator (43 2050,431980) Yes Gauging force (431900,431950) N 0.7-1.4 Gauging force (43 2050,431980) N 0.4-1.4 431980_10/58B Shock-resistant dial indicators 1/100 mm reading Dimensions to DIN EN ISO 463, issue June 2006. Shock-resistant precision dial indicators. Clamping shank 0 8 mm h6, hardened and ground. Outer ring of dial face can be rotated to zero the dial. Outer ring with 2 adjustable tolerance pointers. Central pointer for 1/100 mm reading, small pointer on sub-scale for 1 mm reading. 43 2110 - Protected against shocks to the gears. With metal outer ring and metal back. 43 2120 - Shock-resistant by rack sleeve. Chrome-plated protective casing with integrated back. 43 2130 - All-metal casing and highly effective shock protection. Particularly sturdy dial indicator. Swiss Made. 43 2000 - Shock-resistant by rack sleeve. Full metal version with plastic dial glass. Optional extras: Special contact points No. 434900 / 4910 / 4915. 432110 143 2120 Measuring range/Body 0 J&Gaiant" _ (Mahr) Qja indicator ITfcVHM htesa ih ,Mlrtant HOLE . -432000 Graduation Reading per pointer revolution Variation rangef,(432130) Total variation range ftIt (43 2130) Loop on the back of the dial indicator (43 2000) Gauging force mm im im 10/58 10/58B 38.41 51.75 271.80 25.74 15 17 25.74 0.01 1 Yes 0.7-1.5
