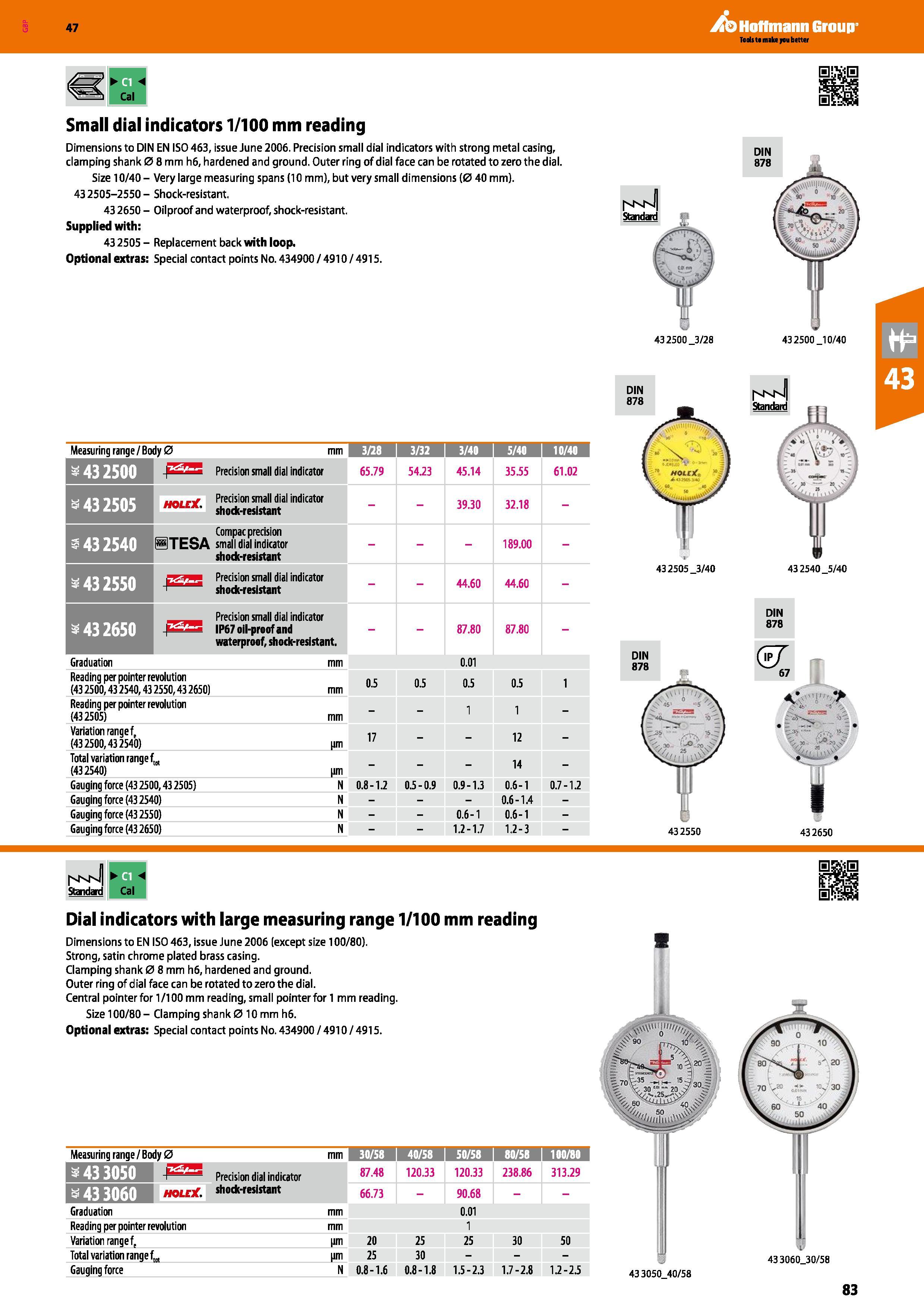

Hoffmann Group 47 Cal Small dial indicators 1/100 mm reading Dimensions to DIN EN ISO 463, issue June 2006. Precision small dial indicators with strong metal casing, clamping shank 0 8 mm h6, hardened and ground. Outer ring of dial face can be rotated to zero the dial. Size 10/40- Very large measuring spans (10 mm), but very small dimensions (0 40 mm). 43 2505-2550 - Shock-resistant. 43 2650 - Oilproof and waterproof, shock-resistant. Supplied with: 432505 - Replacement back with loop. Optional extras: Special contact points No. 434900 / 4910 / 4915. Standard Measuring range / Body 0 mm 3/28 1 3/32 1 3/40 1 5/40 I 10/40 1 Bl Precision small dial indicator 65.79 54.23 45.14 35.55 61.02 Precision small dial indicator shock-resistant w 43 2505 HOLE . 39.30 32.18 - SB Compac precision HTESA small dial indicator shock-resistant 189.00 - 43 2550 Precision small dial indicator shock-resistant 44.60 44.60 - 43 2650 Precision small dial indicator IP67oil-provfand waterproof, shock-resistant. 87.80 87.80 - Graduation mm 0.01 Reading per pointer revolution (43 2500,43 2540,43 2550,43 2650) mm 0.5 0.5 0.5 0.5 1 Reading per pointer revolution (432505) mm 1 1 - Variation range f, (432500,432540) im 17 12 - Total variation range f (432540) m pm 14 - Gauging force (43 2500,43 2505) N 0.8-1.2 0.5-0.9 0.9-1.3 0.6-1 0.7-1.2 Gauging force (43 2540) N 0.6-1.4 - Gauging force (43 2550) N 0.6-1 0.6-1 - Gauging force (43 2650) N 1.2-1.7 1.2-3 - 43 2505 _3/40 DIN 878 (zf 67 432550 Dial indicators with large measuring range 1/100 mm reading Dimensions to EN ISO 463, issue June 2006 (except size 100/80). Strong, satin chrome plated brass casing. Clamping shank 0 8 mm h6, hardened and ground. Outer ring of dial face can be rotated to zero the dial. Central pointer for 1/100 mm reading, small pointer for 1 mm reading. Size 100/80- Clamping shank 010 mm h6. Optional extras: Special contact points No. 434900 / 4910 / 4915. . 432650 Measuring range/Body 0 mm 30/58 1 40/58 I 50/58 I 80/58 I 100/80 £433050 Precision dial indicator 87.48 120.33 120.33 238.86 313.29 -433060 HOLCX. shock-resistant 66.73 - 90.68 Graduation mm 0.01 Reading per pointer revolution mm 1 Variation range f, pm 20 25 25 30 50 Total variation range fM urn 25 30 Gauging force N 0.8-1.6 0.8-1.8 1.5-2.3 1.7-2.8 1.2-2.5 43 3060_30/58 83
