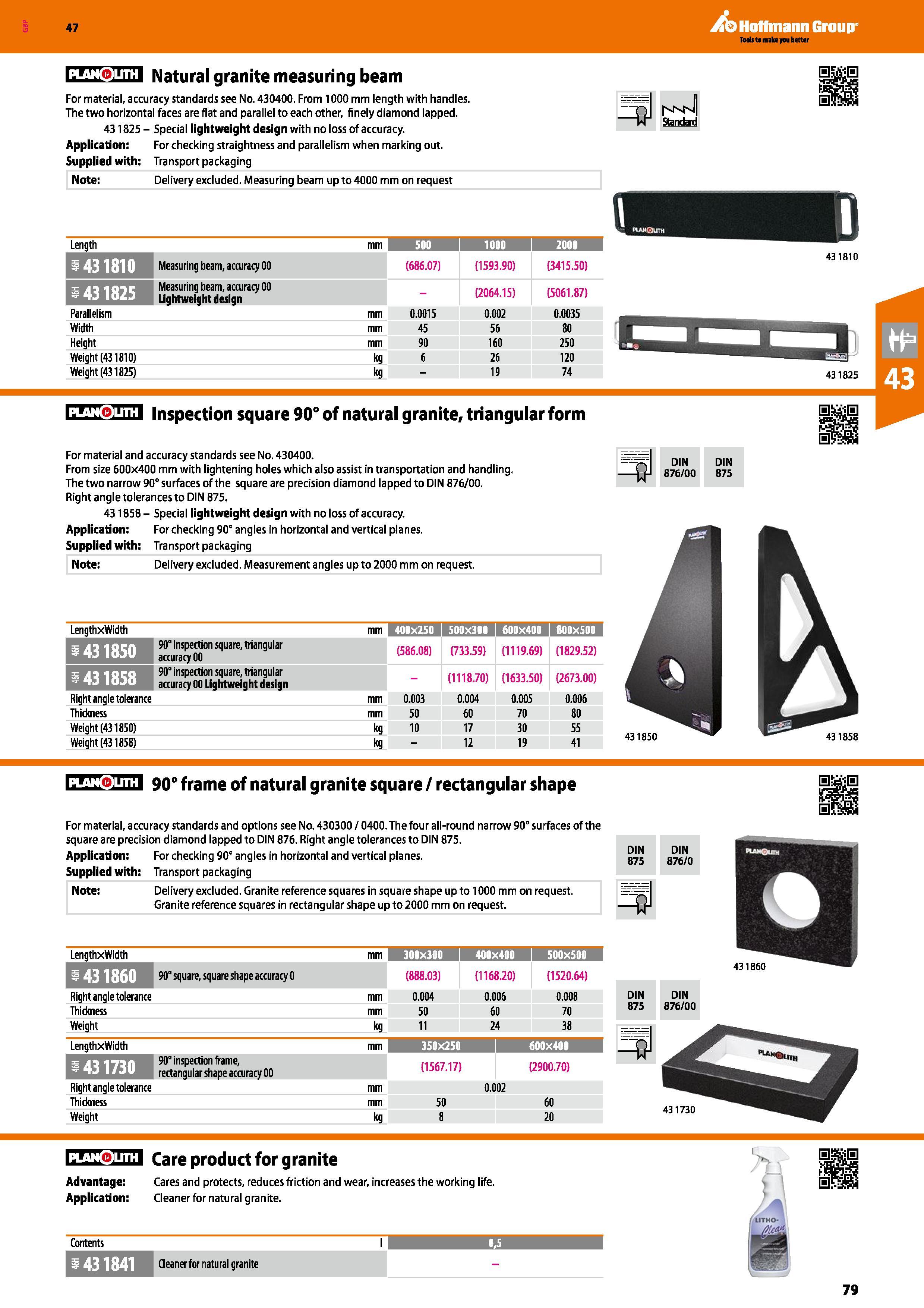

Hoffmann Group 47 PLAN0UTH Natural granite measuring beam For material, accuracy standards see No. 430400. From 1000 mm length with handles. The two horizontal faces are flat and parallel to each other, finely diamond lapped. 431825 - Special lightweight design with no loss of accuracy. Application: For checking straightness and parallelism when marking out. Supplied with: Transport packaging Note: Delivery excluded. Measuring beam up to 4000 mm on request Length 500 i 1000 i 2000 I lEimil Measuring beam, accuracy 00 (686.07) (1593.90) (3415.50) Measuring beam, accuracy 00 Lightweight design - (2064.15) (5061.87) Parallelism mm 0.0015 0.002 0.0035 Width mm 45 56 80 Height mm 90 160 250 Weight (431810) kg 6 26 120 Weight (43 1825) kg 19 74 431810 PLAN0UTH Inspection square 90° of natural granite, triangular form For material and accuracy standards see No. 430400. From size 600x400 mm with lightening holes which also assist in transportation and handling. The two narrow 90° surfaces of the square are precision diamond lapped to DIN 876/00. Right angle tolerances to DIN 875. 431858 - Special lightweight design with no loss of accuracy. Application: For checking 90° angles in horizontal and vertical planes. Supplied with: Transport packaging Note: Delivery excluded. Measurement angles up to 2000 mm on request. DIN DIN 876/00 875 LengthxWidth mm 400X250 I 500X300 1 600X400 I 800X500 1 90° inspection square, triangular accuracy 00 (586.08) (733.59) (1119.69) (1829.52) 90° inspection square, triangular accuracy 00 Lightweight design - (1118.70) (1633.50) (2673.00) Right angle tolerance mm 0.003 0.004 0.005 0.006 Thickness mm 50 60 70 80 Weight (431850) kg 10 17 30 55 Weight (43 1858) kg - 12 19 41 431850 431858 PLAN0UTH 90° frame of natural granite square / rectangular shape For material, accuracy standards and options see No. 430300 / 0400. The four all-round narrow 90° surfaces of the square are precision diamond lapped to DIN 876. Right angle tolerances to DIN 875. Application: For checking 90° angles in horizontal and vertical planes. Supplied with: Transport packaging Note: Delivery excluded. Granite reference squares in square shape up to 1000 mm on request. Granite reference squares in rectangular shape up to 2000 mm on request. DIN 875 DIN 876/0 Hli d i LengthxWidth mm 300x300 I 400x400 500x500 90° square, square shape accuracy 0 (888.03) (1168.20) (1520.64) Right angle tolerance mm 0.004 0.006 0.008 Thickness mm 50 60 70 Weight kg 11 24 38 LengthxWidth mm 350x250 1 600x400 I 90° inspection frame, rectangular shape accuracy 00 (1567.17) (2900.70) Right angle tolerance mm 0.002 Thickness mm 50 60 Weight kg 8 20 DIN 875 DIN 876/00 j d i 431860 431730 Care product for granite Advantage: Cares and protects, reduces friction and wear, increases the working life. fi Application: Cleaner for natural granite. Contents 1 0,5 I i 431841 Cleaner for natural granite - 79
