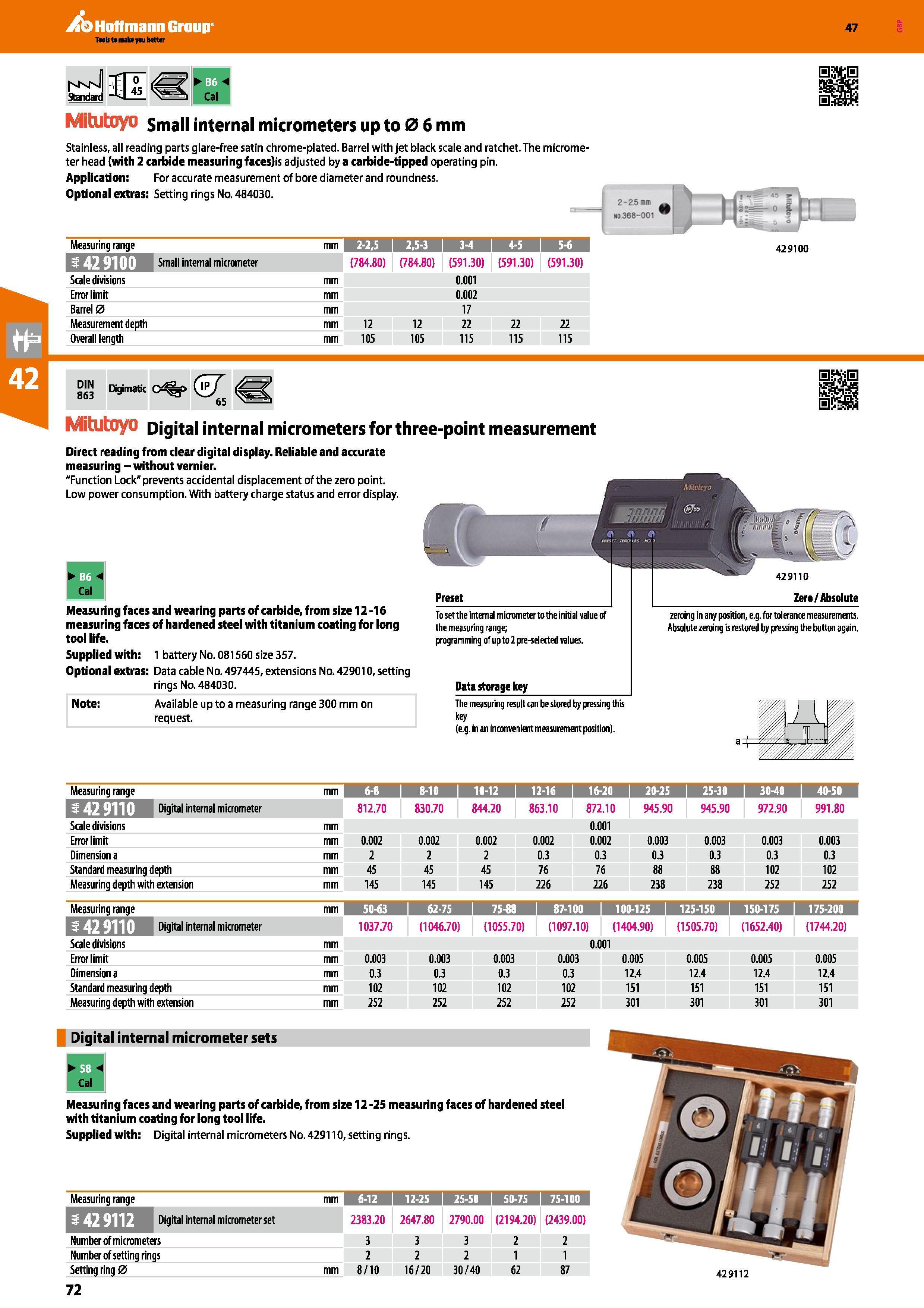

Hoffmann Group 47 sdai Mitutoyo Small internal micrometers up to 0 6 mm Stainless, all reading parts glare-free satin chrome-plated. Barrel with jet black scale and ratchet. The micrometer head (with 2 carbide measuring faces)is adjusted by a carbide-tipped operating pin. Application: For accurate measurement of bore diameter and roundness. Optional extras: Setting rings No. 484030. Small internal micrometer (784.80) (784.80) (591.30) (591.30) (591.30) Scale divisions mm 0.001 Error limit mm 0.002 Barrel 0 mm 17 Measurement depth mm 12 12 22 22 22 Overall length mm 105 105 115 115 115 429100 DIN 863 Digimatic c <£T 65 Mitutoyo Digital internal micrometers for three-point measurement Direct reading from clear digital display. Reliable and accurate measuring - without vernier. "Function Lock” prevents accidental displacement of the zero point. Low power consumption. With battery charge status and error display. Measuring faces and wearing parts of carbide, from size 12 -16 measuring faces of hardened steel with titanium coating for long tool life. Supplied with: 1 battery No. 081560 size 357. Optional extras: Data cable No. 497445, extensions No. 429010, setting rings No. 484030. Note: Available up to a measuring range 300 mm on request. To set the internal micrometer to the initial value of the measuring range; programming of upto2 pre-selected values. Data storage key The measuring result can be stored by pressing this key (e.g. in an inconvenient measurement position). zeroing in any position, e.g. for tolerance measurements. Absolute zeroing is restored by pressing the button again. Measuring range mm 6-8 j 8-10 j 10-12 12-16 I 16-20 I 20-25 j 25-30 30-40 I 40-50 Digital internal micrometer 812.70 830.70 844.20 863.10 872.10 945.90 945.90 972.90 991.80 Scale divisions mm 0.001 Error limit mm 0.002 0.002 0.002 0.002 0.002 0.003 0.003 0.003 0.003 Dimension a mm 2 2 2 0.3 0.3 0.3 0.3 0.3 0.3 Standard measuring depth mm 45 45 45 76 76 88 88 102 102 Measuring depth with extension mm 145 145 145 226 226 238 238 252 252 Measuring range mm 50-63 62-75 i 75-88 87-100 1 100-125 I 125-150 I 150-175 I 175-200 7yX)l f H Digital internal micrometer 1037.70 (1046.70) (1055.70) (1097.10) (1404.90) (1505.70) (1652.40) (1744.20) Scale divisions mm 0.001 Error limit mm 0.003 0.003 0.003 0.003 0.005 0.005 0.005 0.005 Dimension a mm 0.3 0.3 0.3 0.3 12.4 12.4 12.4 12.4 Standard measuring depth mm 102 102 102 102 151 151 151 151 Measuring depth with extension mm 252 252 252 252 301 301 301 301 Digital internal micrometer sets Measuring faces and wearing parts of carbide, from size 12 -25 measuring faces of hardened steel with titanium coating for long tool life. Supplied with: Digital internal micrometers No. 429110, setting rings. Measuring range mm 6-12 1 12-25 1 25-50 1 50-75 I 75-100 1 Digital internal micrometer set 2383.20 2647.80 2790.00 (2194.20) (2439.00) Number of micrometers 3 3 3 2 2 Number of setting rings 2 2 2 1 1 Setting ring 0 mm 8/10 16/20 30/40 62 87 72 429112
