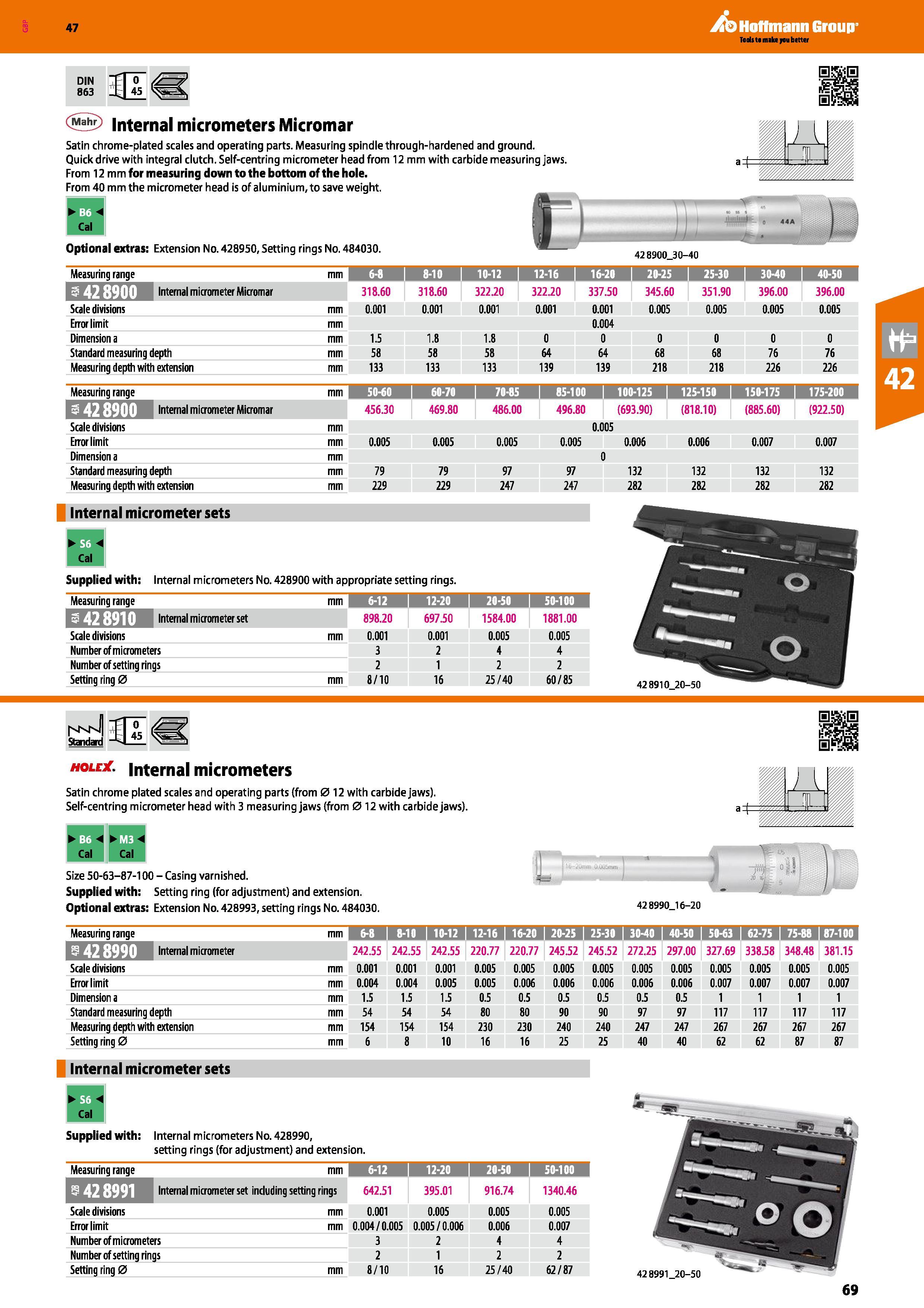

Hoffmann Group 47 <5 Internal micrometers Micromar Satin chrome-plated scales and operating parts. Measuring spindle through-hardened and ground. Quick drive with integral clutch. Self-centring micrometer head from 12 mm with carbide measuring jaws. From 12 mm for measuring down to the bottom of the hole. From 40 mm the micrometer head is of aluminium, to save weight. Optional extras: Extension No. 428950, Setting rings No. 484030. 428900_30-40 Measuring range mm 6-8 8-10 I 10-12 I 12-16 16-20 I 20-25 I 25-30 30-40 I 40-50 JpJaMjTjM Internal micrometer Micromar 318.60 318.60 322.20 322.20 337.50 345.60 351.90 396.00 396.00 Scale divisions mm 0.001 0.001 0.001 0.001 0.001 0.005 0.005 0.005 0.005 Error limit mm 0.004 Dimension a mm 1.5 1.8 1.8 0 0 0 0 0 0 Standard measuring depth mm 58 58 58 64 64 68 68 76 76 Measuring depth with extension mm 133 133 133 139 139 218 218 226 226 Measuring range mm 50-60 E 60-70 70-85 i 85-100 I 100-125 I 125-150 1 150-175 I 175-200 Zyi-l'IlfiB Internal micrometer Micromar 456.30 469.80 486.00 496.80 (693.90) (818.10) (885.60) (922.50) Scale divisions mm 0.005 Error limit mm 0.005 0.005 0.005 0.005 0.006 0.006 0.007 0.007 Dimension a mm 0 Standard measuring depth mm 79 79 97 97 132 132 132 132 Measuring depth with extension mm 229 229 247 247 282 282 282 282 Internal micrometer sets < Cal Supplied with: Internal micrometers No. 428900 with appropriate setting rings. Measuring range mm 6-12 i 12-20 1 20-50 I 50-100 Internal micrometer set 898.20 697.50 1584.00 1881.00 Scale divisions mm 0.001 0.001 0.005 0.005 Number ofmicrometers 3 2 4 4 Number of setting rings 2 1 2 2 Setting ring 0 mm 8/10 16 25/40 60/85 sdSE1 hole , internal micrometers Satin chrome plated scales and operating parts (from 0 12 with carbide jaws). Self-centring micrometer head with 3 measuring jaws (from 012 with carbide jaws). 1 i Cal Cal Size 50-63-87-100 - Casing varnished. Supplied with: Setting ring (for adjustment) and extension. Optional extras: Extension No. 428993, setting rings No. 484030. I 42 8990_16-20 Measuring range mm 6-8 1 8-10 1 10-12 I 12-16 1 16-20 I 20-25 I 25-30 I 30-40 I 40-50 I 50-63 1 62-75 1 75-88 1 87-100 1 I 42 8990 242.55 242.55 242.55 220.77 220.77 245.52 245.52 272.25 297.00 327.69 338.58 348.48 381.15 Scale divisions mm 0.001 0.001 0.001 0.005 0.005 0.005 0.005 0.005 0.005 0.005 0.005 0.005 0.005 Error limit mm 0.004 0.004 0.005 0.005 0.006 0.006 0.006 0.006 0.006 0.007 0.007 0.007 0.007 Dimension a mm 1.5 1.5 1.5 0.5 0.5 0.5 0.5 0.5 0.5 1 1 1 1 Standard measuring depth mm 54 54 54 80 80 90 90 97 97 117 117 117 117 Measuring depth with extension mm 154 154 154 230 230 240 240 247 247 267 267 267 267 Setting ring 0 mm 6 8 10 16 16 25 25 40 40 62 62 87 87 Internal micrometer sets Supplied with: Internal micrometers No. 428990, setting rings (for adjustment) and extension. Measuring range mm j 6-12 1 12-20 I 20-50 I 50-100 I Internal micrometer set including setting rings 642.51 395.01 916.74 1340.46 Scale divisions mm 0.001 0.005 0.005 0.005 Error limit mm 0.004/0.005 0.005 / 0.006 0.006 0.007 Number ofmicrometers 3 2 4 4 Number of setting rings 2 1 2 2 Setting ring 0 mm 8/10 16 25/40 62/87 428910_20-50 428991_20-50 69
