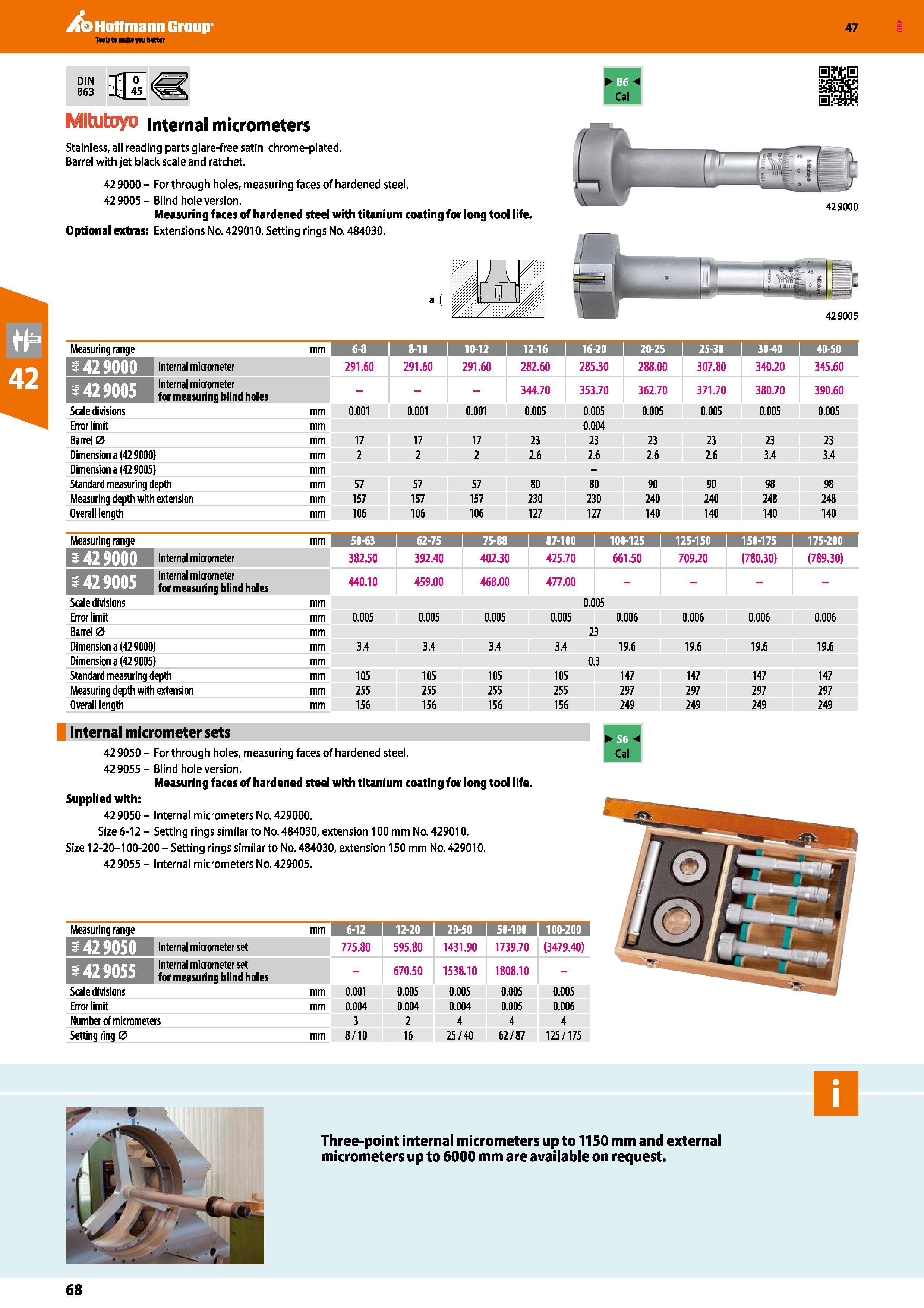

Hoffmann Group 47 DIN 863 Mitutoyo internal micrometers Stainless, all reading parts glare-free satin chrome-plated. Barrel with jet black scale and ratchet. 429000- For through holes, measuring faces of hardened steel. 429005 - Blind hole version. Measuring faces of hardened steel with titanium coating for long tool life. Optional extras: Extensions No. 429010. Setting rings No. 484030. 429000 Measuring range mm 6-8 8-10 10-12 12-16 16-20 20-25 25-30 1 30-40 40-50 j Z 4 1 ill Internal micrometer 291.60 291.60 291.60 282.60 285.30 288.00 307.80 340.20 345.60 TTTTT9 Internal micrometer for measuring Mind holes 344.70 353.70 362.70 371.70 380.70 390.60 Scale divisions mm 0.001 0.001 0.001 0.005 0.005 0.005 0.005 0.005 0.005 Error limit mm 0.004 Barrel 0 mm 17 17 17 23 23 23 23 23 23 Dimension a (42 9000) mm 2 2 2 2.6 2.6 2.6 2.6 3.4 3.4 Dimension a (42 9005) mm - Standard measuring depth mm 57 57 57 80 80 90 90 98 98 Measuring depth with extension mm 157 157 157 230 230 240 240 248 248 Overall length mm 106 106 106 127 127 140 140 140 140 Measuring range mm 50-63 i 62-75 I 75-88 I 87-100 1 100-125 1 125-150 I 150-175 I 175-200 s 42 9000 382.50 392.40 402.30 425.70 661.50 709.20 (780.30) (789.30) Internal micrometer for measuring blind holes 440.10 459.00 468.00 477.00 - Scale divisions mm 0.005 Error limit mm 0.005 0.005 0.005 0.005 0.006 0.006 0.006 0.006 Barrel 0 mm 23 Dimension a (42 9000) mm 3.4 3.4 3.4 3.4 19.6 19.6 19.6 19.6 Dimension a (42 9005) mm 0.3 Standard measuring depth mm 105 105 105 105 147 147 147 147 Measuring depth with extension mm 255 255 255 255 297 297 297 297 Overall length mm 156 156 156 156 249 249 249 249 Internal micrometer sets 429050- For through holes, measuring faces of hardened steel. 429055- Blind hole version. Measuring faces of hardened steel with titanium coating for long tool life. Supplied with: 42 9050 - Internal micrometers No. 429000. Size 6-12 - Setting rings similar to No. 484030, extension 100 mm No. 429010. Size 12-20-100-200 - Setting rings similar to No. 484030, extension 150 mm No. 429010. 42 9055 - Internal micrometers No. 429005. Cal Measuring range mm 6-12 12-20 20-50 50-100 100-200 W tfi 1T7IW Internal micrometer set 775.80 595.80 1431.90 1739.70 (3479.40) Internal micrometer set for measuring Mind holes - 670.50 1538.10 1808.10 - Scale divisions mm 0.001 0.005 0.005 0.005 0.005 Error limit mm 0.004 0.004 0.004 0.005 0.006 Number ofmicrometers 3 2 4 4 4 Setting ring 0 mm 8/10 16 25/40 62/87 125/175 Three-point internal micrometers up to 1150 mm and external micrometers up to 6000 mm are available on request. 68 429005
