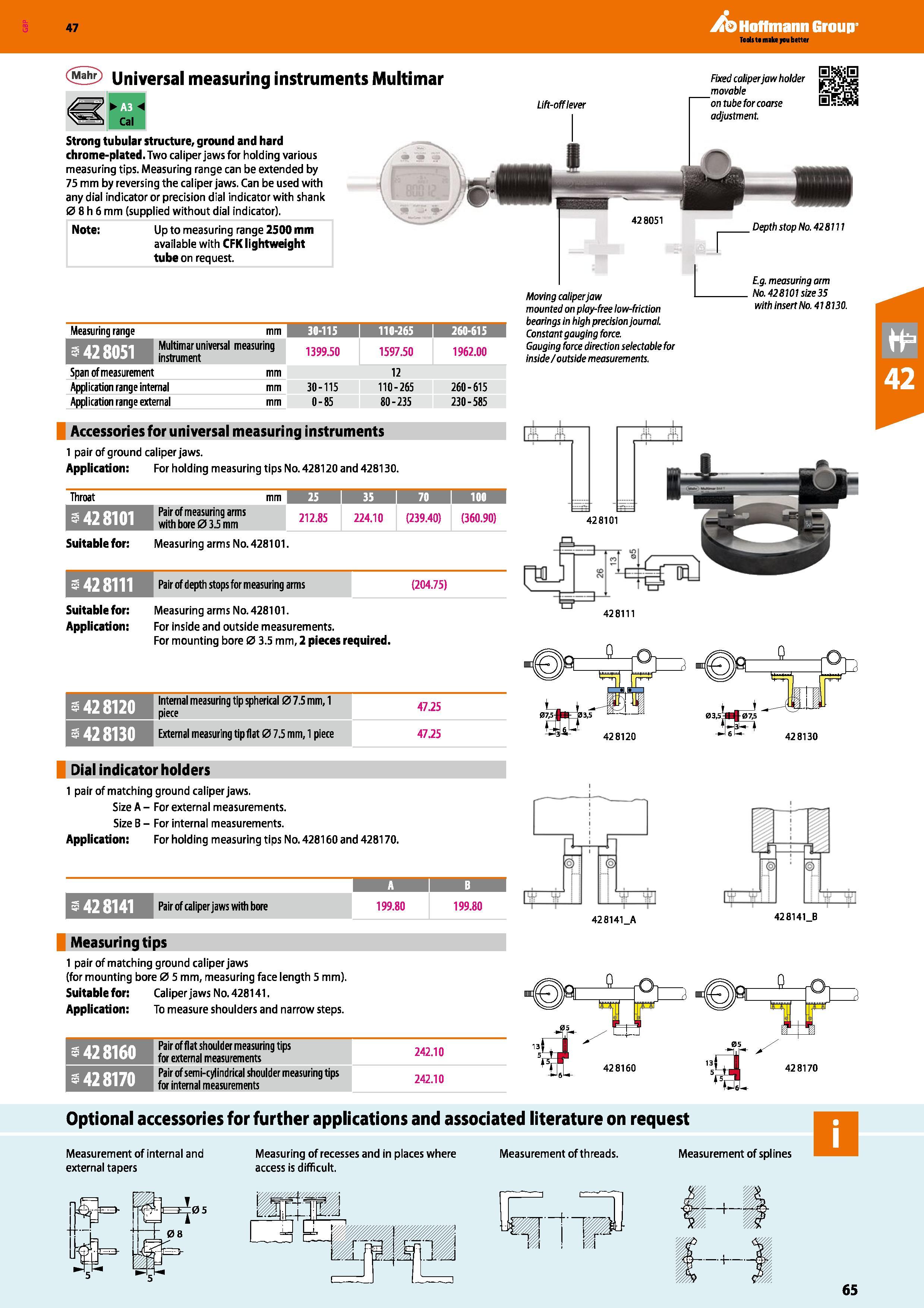

Hoffmann Group 47 Universal measuring instruments Multimar K Cal Strong tubular structure, ground and hard chrome-plated. Two caliper jaws for holding various measuring tips. Measuring range can be extended by 75 mm by reversing the caliper jaws. Can be used with any dial indicator or precision dial indicator with shank 0 8 h 6 mm (supplied without dial indicator). Note: Up to measuring range 2500 mm available with CFK lightweight tube on request. Accessories for universal measuring instruments 1 pair of ground caliper jaws. Application: For holding measuring tips No. 428120 and 428130. Application: Internal measuring tip spherical 0 7.5 mm, 1 piece External measuring tipflat 0 7.5 mm, 1 piece 47.25 47.25 Dial indicator holders 142 8141 Pair of caliper jaws with bore Measuring tips 199.80 199.80 1 pair of matching ground caliper jaws (for mounting bore 0 5 mm, measuring face length 5 mm). Suitablefor: Caliper jaws No. 428141. Application: To measure shoulders and narrow steps. Pair of flat shoulder measuring tips for external measurements Pair of semi-cylindrical shoulder measuring tips for internal measurements 242.10 242.10 Lift-off lever 1 Fixed caliper jaw holder _movable SSw on tube for coarse 0 J adjustment r 428051 . Depth stop No. 42 8111 Measuring range mm 31-115 I 111-265 260-615 Multimar universal instrument measuring 1399.50 1597.50 1962.00 Span of measurement mm 12 Application range internal mm 30-115 110-265 260-615 Application range external mm 0-85 80-235 230-585 Moving caliper jaw mounted on play-free low-friction bearings in high precision journal Constant gauging force. Gauging force direction selectable for inside/outside measurements. E.g. measuring arm . No. 428101 size 35 with insert No. 418130. n Throat mm KB 35 70 101 1 3 42 8101 Pair of measuring arms , or with bore 0 3.5 mm 224.10 (239.40) (360.90) Suitable for: Measuring arms No. 428101. 3 42 8111 Pair of depth stops for measuring arms (204.75) Suitable for: Measuring arms No. 428101. 428101 For inside and outside measurements. For mounting bore 0 3.5 mm, 2 pieces required. 428111 428120 428130 1 pair of matching ground caliper jaws. Size A - For external measurements. Size B - For internal measurements. Application: For holding measuring tips No. 428160 and 428170. T iWi C 428141 A 428141 B 428160 428170 Optional accessories for further applications and associated literature on request Measurement of internal and external tapers Measuring of recesses and in places where access is difficult. Measurement of threads. Measurement of splines 65
