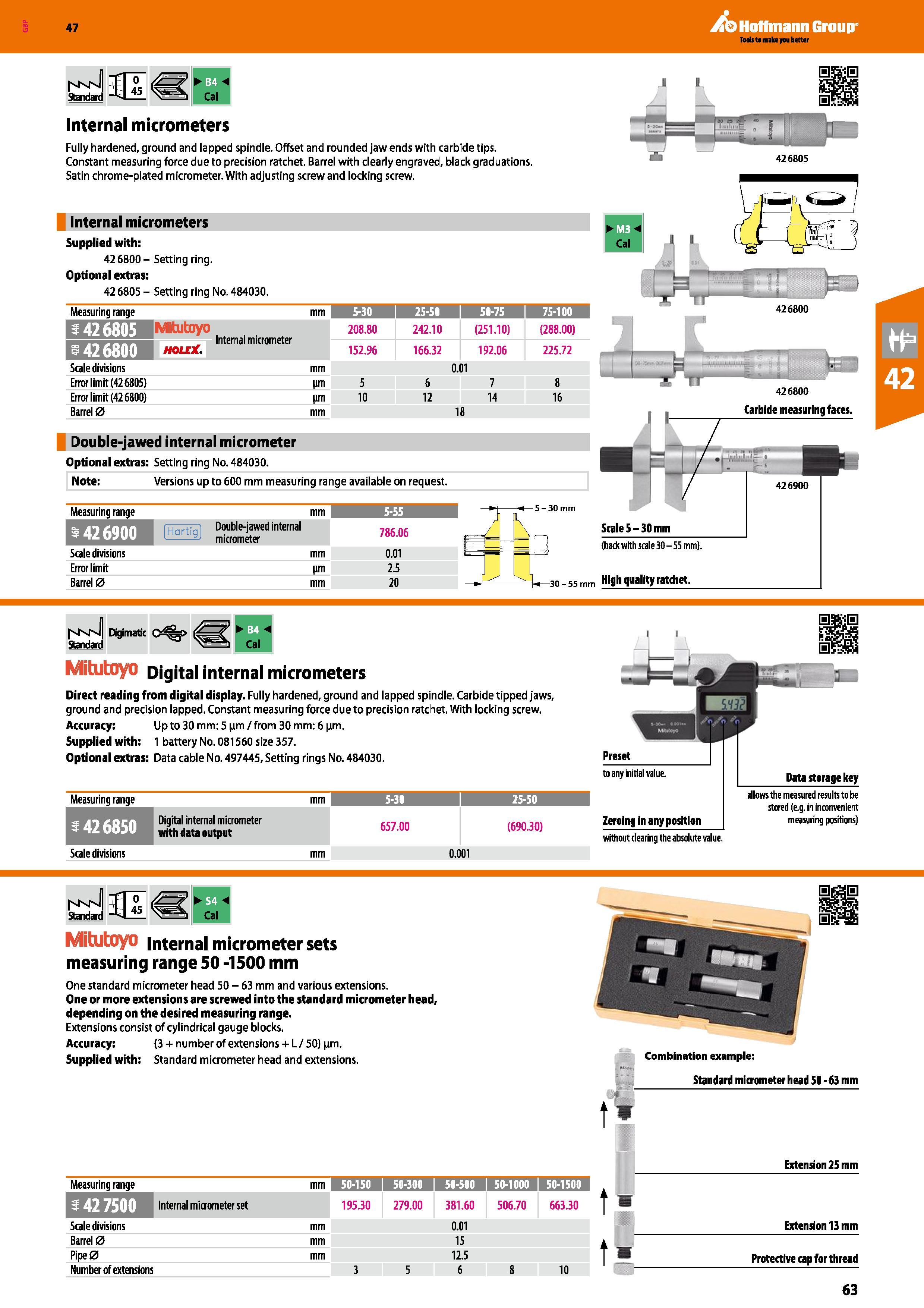

Hoffmann Group 47 sdai' Cal Internal micrometers Fully hardened, ground and lapped spindle. Offset and rounded jaw ends with carbide tips. Constant measuring force due to precision ratchet. Barrel with clearly engraved, black graduations. Satin chrome-plated micrometer. With adjusting screw and locking screw. Internal micrometers Supplied with: 426800 - Setting ring. Optional extras: 42 6805 - Setting ring No. 484030. Measuring range mm 5-30 25-50 50-75 75-100 ErWHiJ Mitutoyo 208.80 242.10 (251.10) (288.00) 152.96 166.32 192.06 225.72 Scale divisions mm 0.01 Error limit (42 6805) im 5 6 7 8 Error limit (42 6800) im 10 12 14 16 Barrel 0 mm 18 i .. .,'7' r 11 r aaJ 426800 : H W 3 426800 Carbide measuring faces. Double-jawed internal micrometer Optional extras: Setting ring No. 484030. Note: Versions up to 600 mm measuring range available on request. Measuring range mm 5-55 i 42 6900 1 Hart Double-jawed internal micrometer 786.06 Scale divisions mm 0.01 Error limit im 2.5 Barrel 0 mm 20 (back with scale 30 - 55 mm). High quality ratchet. Digmatic Cal Standatd Mitutoyo Digital internal micrometers Direct reading from digital display. Fully hardened, ground and lapped spindle. Carbide tipped jaws, ground and precision lapped. Constant measuring force due to precision ratchet. With locking screw. Accuracy: Up to 30 mm: 5 nm / from 30 mm: 6 nm. Supplied with: 1 battery No. 081560 size 357. Optional extras: Data cable No. 497445, Setting rings No. 484030. Measuring range mm 5-30 25-50 s 42 6850 Digital internal micrometer with data output 657.00 (690.30) Scale divisions mm 0.001 l I" <15 5 Standard Cal Mitutoyo internal micrometer sets measuring range 50 -1500 mm One standard micrometer head 50 - 63 mm and various extensions. One or more extensions are screwed into the standard micrometer head, depending on the desired measuring range. Extensions consist of cylindrical gauge blocks. Accuracy: (3 + number of extensions + L/50) nm. Supplied with: Standard micrometer head and extensions. Combination example: Standard micrometer head 50 - 63 mm 7 t Extension 25 mm Measuring range mm 50-150 I 50-300 I 50-500 iHsrniusttii Internal micrometer set 195.30 279.00 381.60 506.70 663.30 Scale divisions mm 0.01 Barrel 0 mm 15 Pipe0 mm 12.5 Number of extensions 3 5 6 8 10 Extension 13 mm Protective cap for thread Preset to any initial value. Zeroing in any position Data storage key allows the measured results to be stored e.g. in inconvenient measuring positions) without clearing the absolute value. 63
