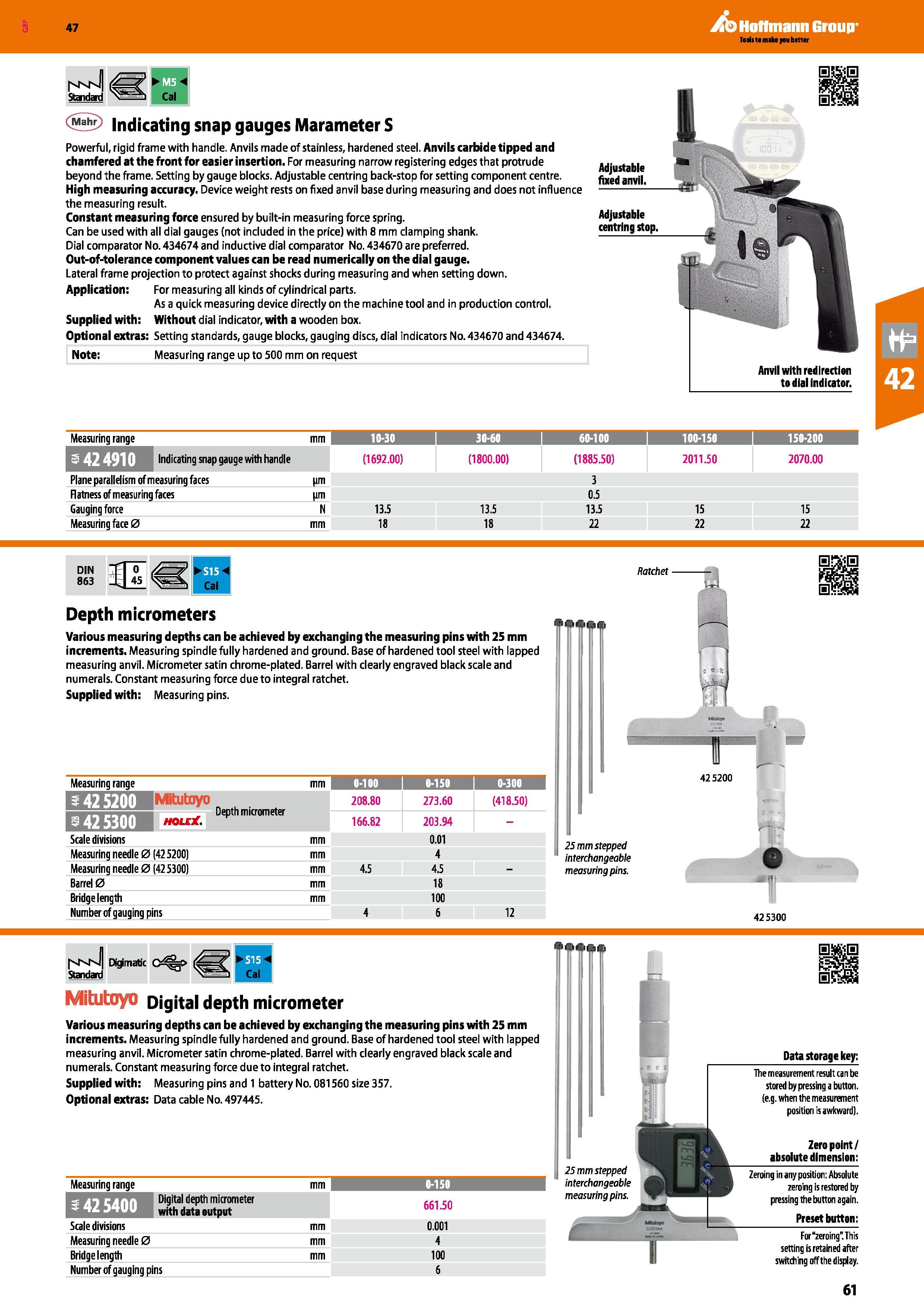

Hoffmann Group 47 Indicating snap gauges Marameter S Powerful, rigid frame with handle. Anvils made of stainless, hardened steel. Anvils carbide tipped and chamfered at the front for easier insertion. For measuring narrow registering edges that protrude beyond the frame. Setting by gauge blocks. Adjustable centring back-stop for setting component centre. High measuring accuracy. Device weight rests on fixed anvil base during measuring and does not influence the measuring result. Constant measuring force ensured by built-in measuring force spring. Can be used with all dial gauges (not included in the price) with 8 mm clamping shank. Dial comparator No. 434674 and inductive dial comparator No. 434670 are preferred. Out-of-tolerance component values can be read numerically on the dial gauge. Lateral frame projection to protect against shocks during measuring and when setting down. Application: For measuring all kinds of cylindrical parts. As a quick measuring device directly on the machine tool and in production control. Supplied with: Without dial indicator, with a wooden box. Optional extras: Setting standards, gauge blocks, gauging discs, dial indicators No. 434670 and 434674. Note: Measuring range up to 500 mm on request Measuring range mm 10-30 30-60 i 60-100 100-150 i 150-200 i Indicating snap gauge with handle (1692.00) (1800.00) (1885.50) 2011.50 2070.00 Plane parallelism of measuring faces pm 3 Flatness of measuring faces pm 0.5 Gauging force N 13.5 13.5 13.5 15 15 Measuring face 0 mm 18 18 22 22 22 DIN 863 Ratchet Depth micrometers Various measuring depths can be achieved by exchanging the measuring pins with 25 mm increments. Measuring spindle fully hardened and ground. Base of hardened tool steel with lapped measuring anvil. Micrometer satin chrome-plated. Barrel with clearly engraved black scale and numerals. Constant measuring force due to integral ratchet. Supplied with: Measuring pins. Measuring range mm 0-100 I 0-150 1 0-300 1 3 425200 Mitutoyo Depth micrometer HOLEjC. 208.80 273.60 (418.50) M25300 166.82 203.94 - Scale divisions mm 0.01 Measuring needle 0 (425200) mm 4 Measuring needle 0 (425300) mm 4.5 4.5 - Barrel 0 mm 18 Bridge length mm 100 Number of gauging pins 4 6 12 425200 25 mm stepped interchangeable measuring pins. 425300 I'vM'J Digimatic C= =& Standard Mitutoyo Digital depth micrometer Various measuring depths can be achieved by exchanging the measuring pins with 25 mm increments. Measuring spindle fully hardened and ground. Base of hardened tool steel with lapped measuring anvil. Micrometer satin chrome-plated. Barrel with clearly engraved black scale and numerals. Constant measuring force due to integral ratchet. Supplied with: Measuring pins and 1 battery No. 081560 size 357. Optional extras: Data cable No. 497445. Measuring range mm 0-150 I Digital depth micrometer with data output 661.50 Scale divisions mm 0.001 Measuring needle 0 mm 4 Bridge length mm 100 Number of gauging pins 6 Data storage key: The measurement result can be stored by pressing a button, e.g. when the measurement position is awkward). Zero point/ absolute dimension: Zeroing in any position: Absolute zeroing is restored by pressing the button again. Preset button: For“zeroing”.This setting is retained after switching off the display. 61
