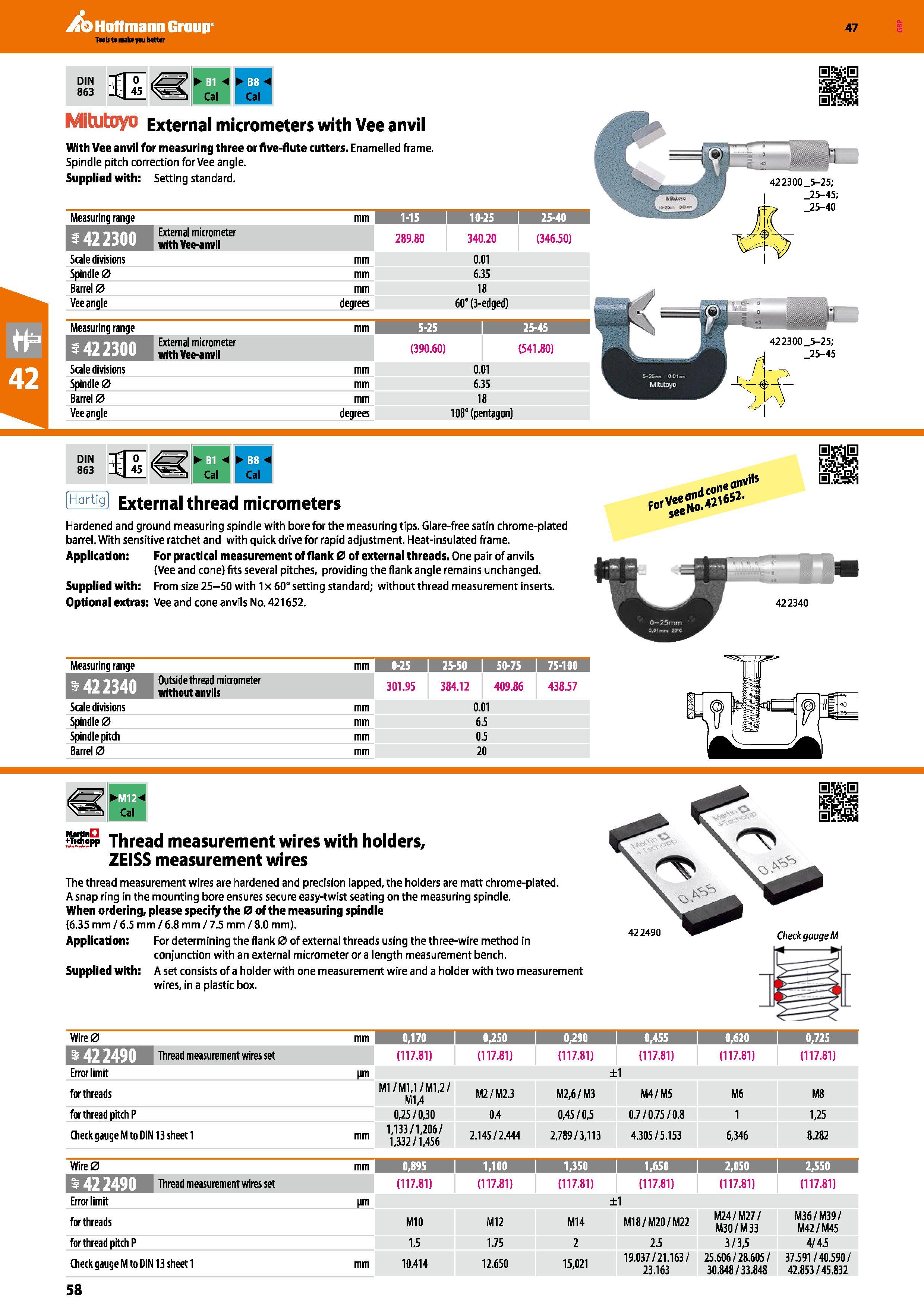

Hoffmann Group 47 DIN 863 B1 Ml Cal Cal Mitutoyo External micrometers with Vee anvil With Vee anvil for measuring three or five-flute cutters. Enamelled frame. Spindle pitch correction for Vee angle. Supplied with: Setting standard. Measuring range mm 1-15 1 10-25 25-40 External micrometer with Vee-anvil 289.80 340.20 (346.50) Scale divisions Spindle 0 Barrel 0 Veeangle mm degrees 0.01 6.35 18 60°(3-edged) Measuring range mm 5-25 1 25-45 1 3 422300 External micrometer with Vee-anvil (390.60) (541.80) Scale divisions mm 0.01 Spindle 0 mm 6.35 Barrel 0 mm 18 Veeangle degrees 108°(pentagon) / I Cal DIN jrl 0 // s/ 863 XI 45 r Cal anvi s S. Hgrt g External thread micrometers Hardened and ground measuring spindle with bore for the measuring tips. Glare-free satin chrome-plated barrel. With sensitive ratchet and with quick drive for rapid adjustment. Heat-insulated frame. Application: For practical measurement of flank 0 of external threads. One pair of anvils (Vee and cone) fits several pitches, providing the flank angle remains unchanged. Supplied with: From size 25-50 with 1 x 60° setting standard; without thread measurement inserts. Optional extras: Vee and cone anvils No. 421652. Measuring range mm 25-50 1 50-75 1 75-100 I M2 2340 Outside thread micrometer without anvils 301.95 384.12 409.86 438.57 Scale divisions mm 0.01 Spindle 0 mm 6.5 Spindle pitch mm 0.5 Barrel 0 mm 20 Sot Thread measurement wires with holders, ZEISS measurement wires The thread measurement wires are hardened and precision lapped, the holders are matt chrome-plated. A snap ring in the mounting bore ensures secure easy-twist seating on the measuring spindle. When ordering, please specify the 0 of the measuring spindle (6.35 mm / 6.5 mm / 6.8 mm / 7.5 mm / 8.0 mm). Application: For determining the flank 0 of external threads using the three-wire method in conjunction with an external micrometer or a length measurement bench. Supplied with: Aset consists of a holder with one measurement wire and a holder with two measurement wires, in a plastic box. 422490 Wire0 mm 0,170 0,250 I 0,290 1 0/455 S 0,620 i 0,725 yjITITiV Thread measurement wires set (117.81) (117.81) (117.81) (117.81) (117.81) (117.81) Error limit im ±1 for threads Ml / M1,1 / M1,2 / Ml/4 M2/M2.3 M2.6/M3 M4/M5 M6 M8 for thread pitch P 0,25/0,30 0.4 0,45/0,5 0.7/0.75/0.8 1 1,25 Check gauge M to DIN 13 sheet 1 mm 1,133/1,206/ 1,332/1,456 2.145 / 2.444 2,789 / 3,113 4.305/5.153 6,346 8.282 Wire0 mm 0,895 I 1,100 I 1,350 i 1,650 2,050 I 2,550 ynTTTI B Thread measurement wires set (117.81) (117.81) (117.81) (117.81) (117.81) (117.81) Error limit pm ±1 for threads M10 M12 M14 M18/M20/M22 M24/M27/ M30/M33 M36/M39/ M42/M45 for thread pitch P 1.5 1.75 2 25 3/3,5 4/4.5 Check gauge M to DIN 13 sheet 1 mm 10.414 12.650 15,021 19.037 / 21.163/ 23.163 25.606 / 28.605/ 30.848 / 33.848 37.591 / 40.590/ 42.853/45.832 58
