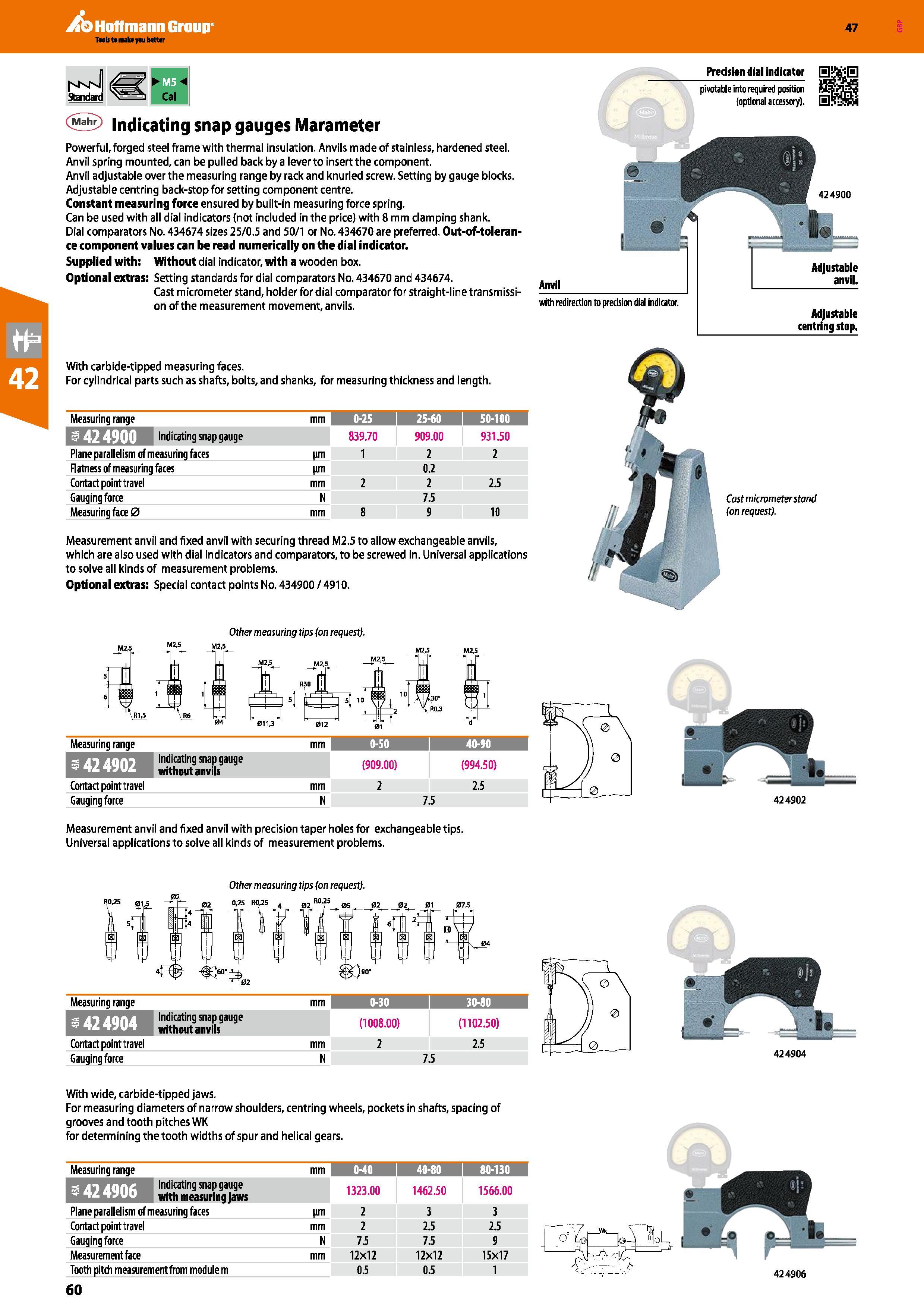

Hoffmann Group 47 Indicating snap gauges Marameter Powerful, forged steel frame with thermal insulation. Anvils made of stainless, hardened steel. Anvil spring mounted, can be pulled back by a lever to insert the component. Anvil adjustable over the measuring range by rack and knurled screw. Setting by gauge blocks. Adjustable centring back-stopfor setting component centre. Constant measuring force ensured by built-in measuring force spring. Can be used with all dial indicators (not included in the price) with 8 mm clamping shank. Dial comparators No. 434674 sizes 25/0.5 and 50/1 or No. 434670 are preferred. Out-of-toleran-ce component values can be read numerically on the dial indicator. Supplied with: Without dial indicator, with a wooden box. Optional extras: Setting standards for dial comparators No. 434670 and 434674. Cast micrometer stand, holder for dial comparator for straight-line transmission of the measurement movement, anvils. Anvil with redirection to precision dial indicator. Adjustable centring stop. With carbide-tipped measuring faces. For cylindrical parts such as shafts, bolts, and shanks, for measuring thickness and length. Measuring range mm 0-25 I 25-60 I 50-100 i Indicating snap gauge 839.70 909.00 931.50 Plane parallelism of measuring faces im 1 2 2 Flatness of measuring faces im 0.2 Contact point travel mm 2 2 25 Gauging force N 7.5 Measuring face 0 mm 8 9 10 Cast micrometer stand (on request). Measurement anvil and fixed anvil with securing thread M2.5 to allow exchangeable anvils, which are also used with dial indicators and comparators, to be screwed in. Universal applications to solve all kinds of measurement problems. Optional extras: Special contact points No. 434900 / 4910. Predsion dial indicator BjjfcB pivotable into required position (optional accessory). E 424900 Adjustable anvil. Measuring range mm 0-50 40-90 Indicating snap gauge without anvils (909.00) (994.50) Contact point travel mm 2 2.5 Gauging force N 7.5 Other measuring tips (on request). Measurement anvil and fixed anvil with precision taper holes for exchangeable tips. Universal applications to solve all kinds of measurement problems. Other measuring tips (on request). Measuring range mm 0-30 30-80 jj Indicating snap gauge without anvils (1008.00) (1102.50) Contact point travel mm 2 2.5 Gauging force N 7.5 With wide, carbide-tipped jaws. For measuring diameters of narrow shoulders, centring wheels, pockets in shafts, spacing of grooves and tooth pitches WK for determining the tooth widths of spur and helical gears. Measuring range mm 0-40 40-80 80-130 j Indicating snap gauge with measuring jaws 1323.00 1462.50 1566.00 Plane parallelism of measuring faces im 2 3 3 Contact point travel mm 2 2.5 25 Gauging force N 7.5 7.5 9 Measurement face mm 12x12 12x12 15x17 Tooth pitch measurement from module m 0.5 0.5 1 60 , 424902 424904
