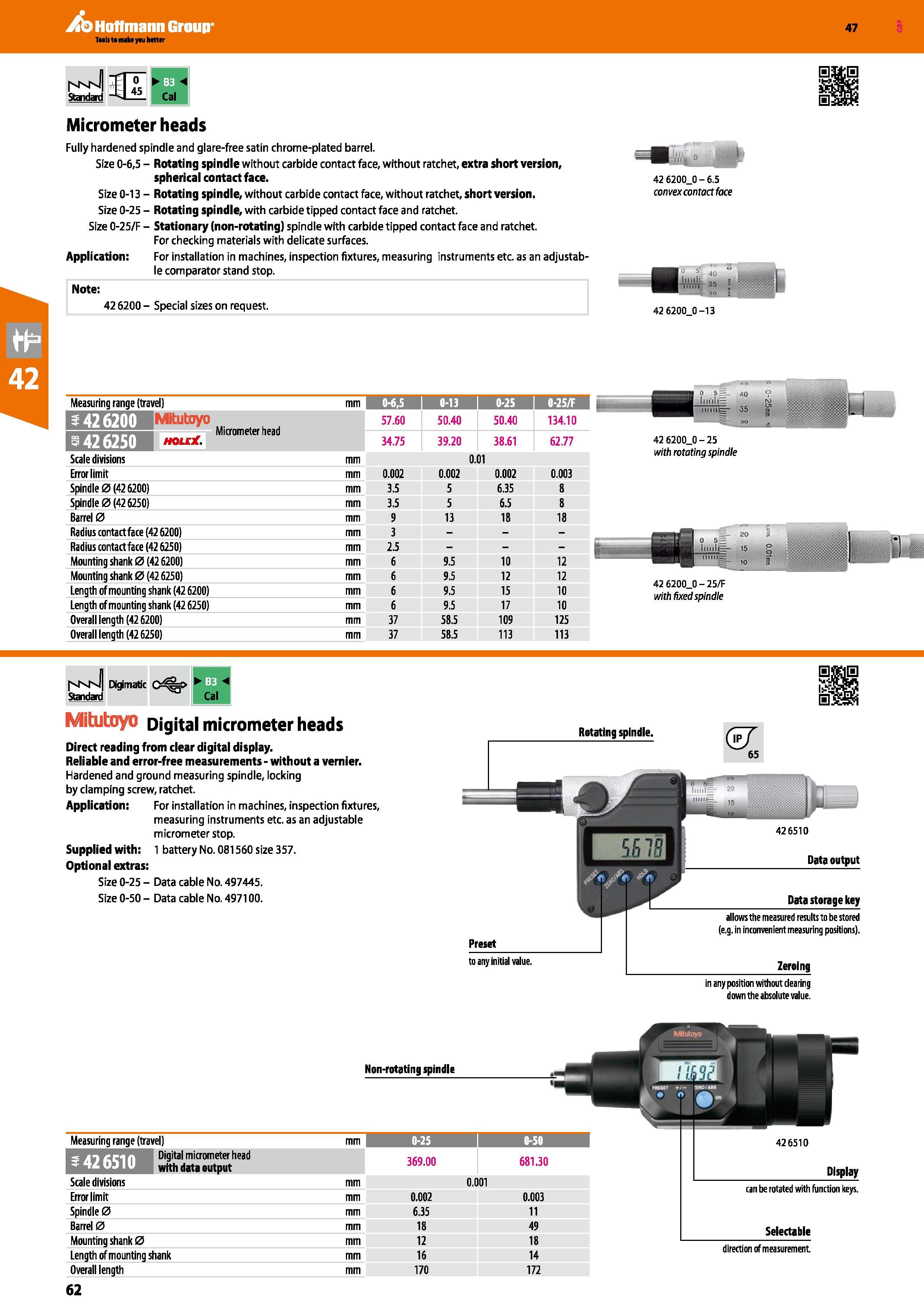

Hoffmann Group 47 Standard 81 Micrometer heads Fully hardened spindle and glare-free satin chrome-plated barrel. Size 0-6,5 - Rotating spindle without carbide contact face, without ratchet, extra short version, spherical contact face. Size 0-13 - Rotating spindle, without carbide contact face, without ratchet, short version. Size 0-25 - Rotating spindle, with carbide tipped contact face and ratchet. Size 0-25/F - Stationary (non-rotating) spindle with carbide tipped contact face and ratchet. For checking materials with delicate surfaces. Application: For installation in machines, inspection fixtures, measuring instruments etc. as an adjustab- le comparator stand stop. Note: 42 6200 - Special sizes on request. 42 6200_0 - 6.5 convex contact face 42 6200_0-13 Measuring range (travel) mm 0-6,5 0-13 0-25 0-25/F R 57.60 50.40 50.40 134.10 -426250 B&aNHllIH 34.75 39.20 38.61 62.77 Scale divisions mm 0.01 Error limit mm 0.002 0.002 0.002 0.003 Spindle 0(42 6200) mm 3.5 5 6.35 8 Spindle 0(42 6250) mm 3.5 5 6.5 8 Barrel 0 mm 9 13 18 18 Radius contact face (42 6200) mm 3 Radius contact face (42 6250) mm 2.5 Mounting shank 0 (42 6200) mm 6 9.5 10 12 Mounting shank 0 (42 6250) mm 6 9.5 12 12 Length of mounting shank (42 6200) mm 6 9.5 15 10 Length of mounting shank (42 6250) mm 6 9.5 17 10 Overall length (42 6200) mm 37 58.5 109 125 Overall length (42 6250) mm 37 58.5 113 113 42 6200_0 - 25 with rotating spindle 42 6200_0 - 25/F with fixed spindle I'vM'J Digimatic H -< Standard Cal Mitutoyo Digital micrometer heads Direct reading from clear digital display. Reliable and error-free measurements - without a vernier. Hardened and ground measuring spindle, locking by clamping screw, ratchet. Application: For installation in machines, inspection fixtures, measuring instruments etc. as an adjustable micrometer stop. Supplied with: 1 battery No. 081560 size 357. Optional extras: Size 0-25 - Data cable No. 497445. Size 0-50 - Data cable No. 497100. Rotating spindle. Preset to any initial value. allows the measured results to be stored (e.g. in inconvenient measuring positions). Zeroing in any position without clearing down the absolute value. Non-rotating spindle Measuring range (travel) mm Digital micrometer head EmifilU with data output 369.00 681.30 Scale divisions mm 0.001 Error limit mm 0.002 0.003 Spindle 0 mm 6.35 11 Barrel 0 mm 18 49 Mounting shank 0 mm 12 18 Length of mounting shank mm 16 14 Overall length mm 170 172 direction of measurement 62
