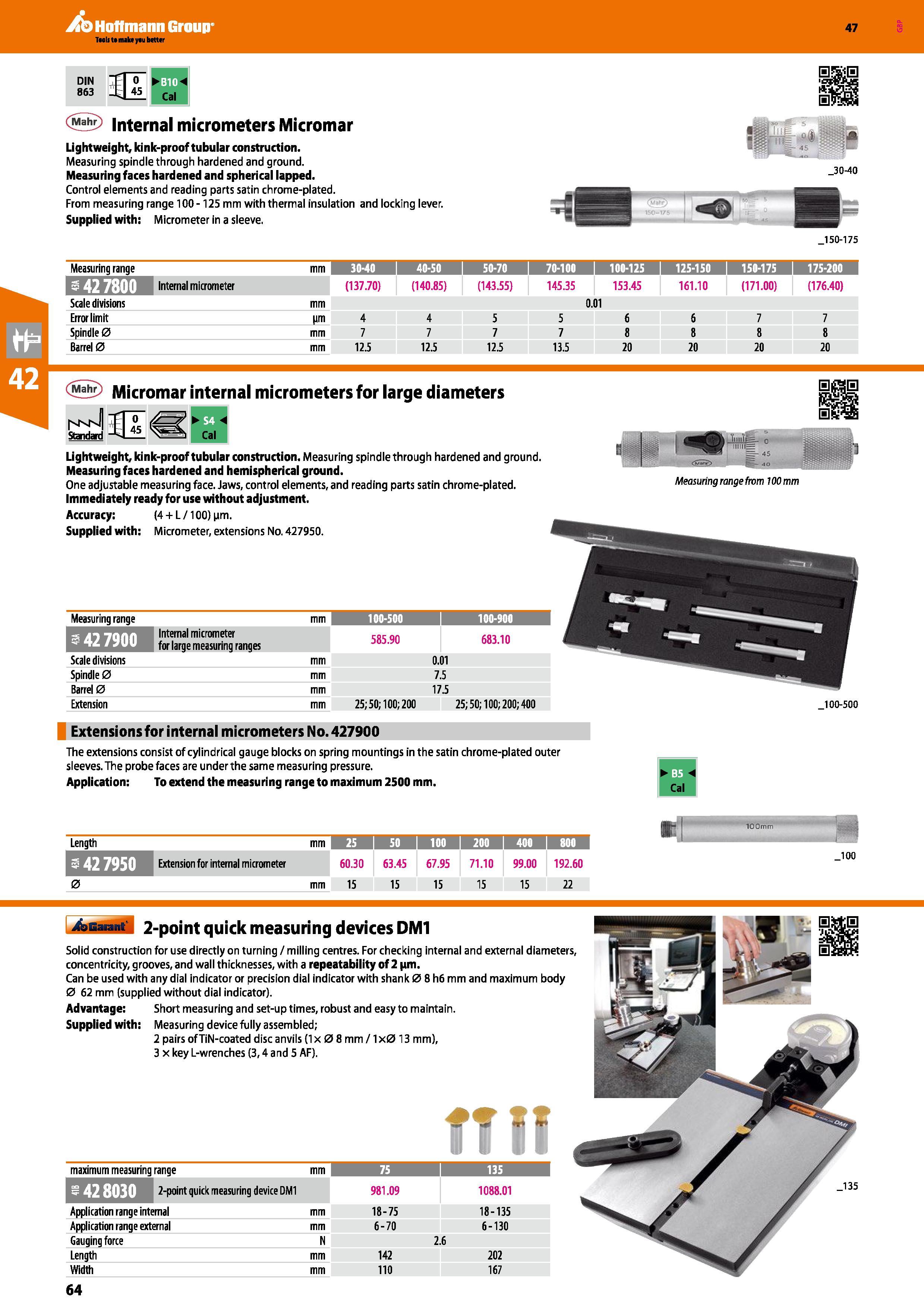

Hoffmann Group 47 DIN 863 <5 Internal micrometers Micromar Lightweight, kink-proof tubular construction. Measuring spindle through hardened and ground. Measuring faces hardened and spherical lapped. Control elements and reading parts satin chrome-plated. From measuring range 100-125 mm with thermal insulation and locking lever. Supplied with: Micrometer in a sleeve. 150-175 Measuring range mm 30-40 j 40-50 I 50-70 I 70-100 I 100-125 I 125-150 I 150-175 I 175-200 i 1 s 42 7800 (137.70) (140.85) (143.55) 145.35 153.45 161.10 (171.00) (176.40) Scale divisions mm 0.01 Error limit im 4 4 5 5 6 6 7 7 Spindle 0 mm 7 7 7 7 8 8 8 8 Barrel 0 mm 12.5 12.5 12.5 13.5 20 20 20 20 Micromar internal micrometers for large diameters sdSI1 Cal Lightweight, kink-proof tubular construction. Measuring spindle through hardened and ground. Measuring faces hardened and hemispherical ground. One adjustable measuring face. Jaws, control elements, and reading parts satin chrome-plated. Immediately ready for use without adjustment. Accuracy: <4 + L /100) Mm. Supplied with: Micrometer, extensions No. 427950. Measuring range mm 100-500 1 100-900 Internal micrometer for large measuring ranges 585.90 683.10 Scale divisions mm 0.01 Spindle 0 mm 7.5 Barrel 0 mm 17 5 Extension mm 25;50;100;200 25; 50; 100; 200; 400 Extensions for internal micrometers No. 427900 fi <&Zr> llllllt=L. o 11111= 45 Measuring range from 100 mm J 00-500 The extensions consist of cylindrical gauge blocks on spring mountings in the satin chrome-plated outer sleeves. The probe faces are under the same measuring pressure. Application: To extend the measuring range to maximum 2500 mm. Length mm 25 50 I 100 1 200 I 400 S42 Extension for internal micrometer 60.30 63.45 67.95 71.10 99.00 192.60 JOO maximum measuring range mm 75 135 2-point quick measuring device DM1 981.09 1088.01 Application range internal mm 18-75 18-135 Application range external mm 6-70 6-130 Gauging force N 2.6 Length mm 142 202 Width mm 110 167 XbGarant 2-point quick measuring devices DM1 Solid construction for use directly on turning / milling centres. For checking internal and external diameters, concentricity, grooves, and wall thicknesses, with a repeatability of 2 tm. Can be used with any dial indicator or precision dial indicator with shank 0 8 h6 mm and maximum body 0 62 mm (supplied without dial indicator). Advantage: Short measuring and set-up times, robust and easy to maintain. Supplied with: Measuring device fully assembled; 2 pairs of TiN-coated disc anvils (1 x 0 8 mm / 1x013 mm), 3 x key L-wrenches (3,4 and 5 AF).
