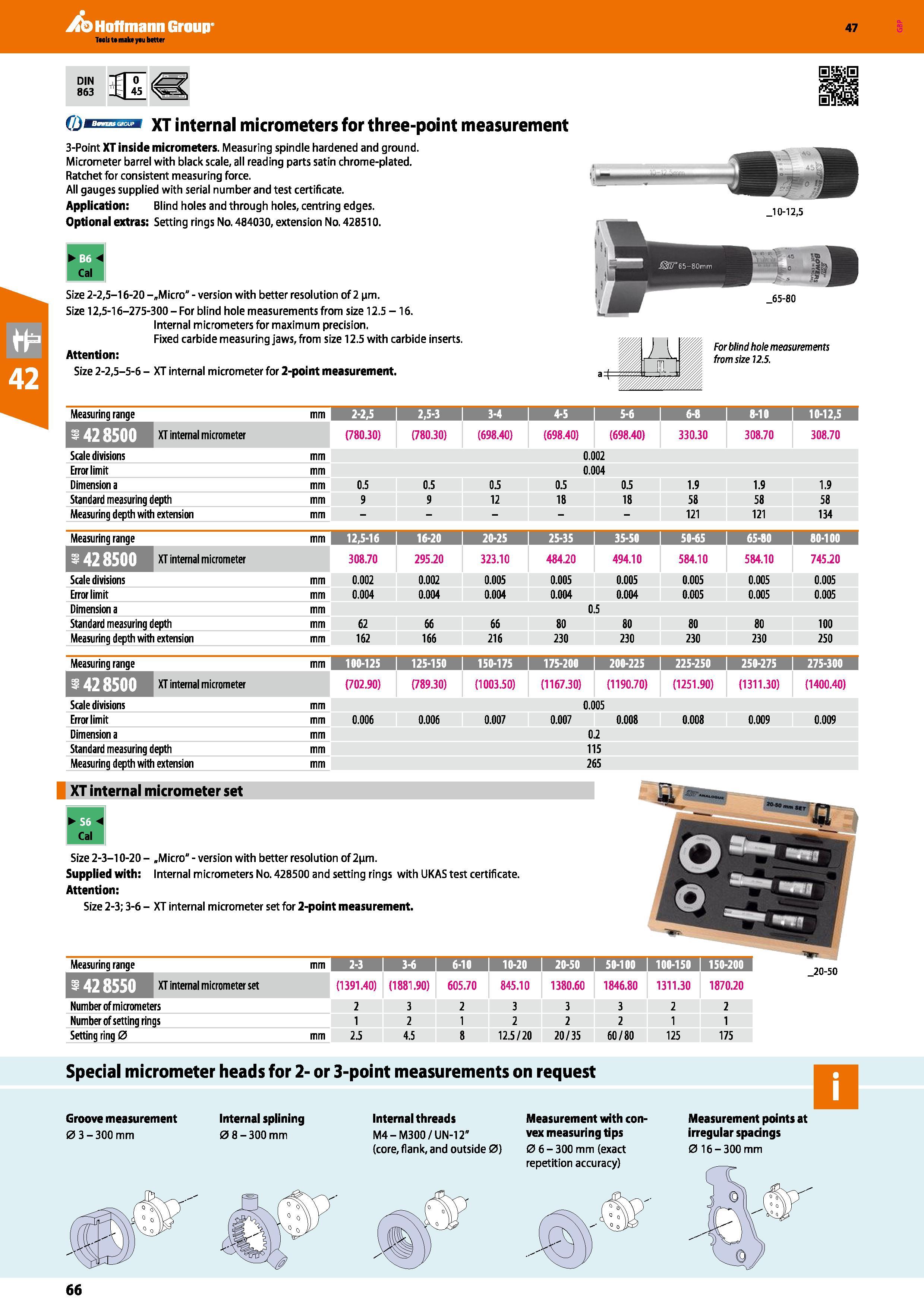

Hoffmann Group 47 DIN 863 0i XT internal micrometers for three-point measurement 3-Point XT inside micrometers. Measuring spindle hardened and ground. Micrometer barrel with black scale, all reading parts satin chrome-plated. Ratchet for consistent measuring force. All gauges supplied with serial number and test certificate. Application: Blind holes and through holes, centring edges. Optional extras: Setting rings No. 484030, extension No. 428510. Cal Size 2-2,5-16-20 -„Micro" - version with better resolution of 2 jm. Size 12,5-16-275-300 - For blind hole measurements from size 12.5 -16. Internal micrometers for maximum precision. Fixed carbide measuring jaws, from size 12.5 with carbide inserts. Attention: Size 2-2,5-5-6 - XT internal micrometer for 2-point measurement. _10-12,5 I _65-80 For blind hole measurements from size 12.5. Measuring range mm 2,5-3 I 3-4 4-5 1 5-6 6-8 i 8-10 I 10-12,5 S XT internal micrometer (780.30) (780.30) (698.40) (698.40) (698.40) 330.30 308.70 308.70 Scale divisions mm 0.002 Error limit mm 0.004 Dimension a mm 0.5 0.5 Oi 0.5 0.5 1.9 1.9 1.9 Standard measuring depth mm 9 9 12 18 18 58 58 58 Measuring depth with extension mm 121 121 134 Measuring range mm 12,5-16 I 16-20 20-25 I 25-35 I 35-50 50-65 \ 65-80 80-100 XT internal micrometer 308.70 295.20 323.10 484.20 494.10 584.10 584.10 745.20 Scale divisions mm 0.002 0.002 0.005 0.005 0.005 0.005 0.005 0.005 Error limit mm 0.004 0.004 0.004 0.004 0.004 0.005 0.005 0.005 Dimension a mm 0.5 Standard measuring depth mm 62 66 66 80 80 80 80 100 Measuring depth with extension mm 162 166 216 230 230 230 230 250 Measuring range mm 100-125 I 125-150 I 150-175 I 175-200 1 200-225 I 225-250 I 250-275 1 275-300 XT internal micrometer (702.90) (789.30) (1003.50) (1167.30) (1190.70) (1251.90) (1311.30) (1400.40) Scale divisions mm 0.005 Error limit mm 0.006 0.006 0.007 0.007 0.008 0.008 0.009 0.009 Dimension a Standard measuring depth Measuring depth with extension mm 0.2 115 265 XT internal micrometer set Size 2-3-10-20 - .Micro" - version with better resolution of 2(jm. Supplied with: Internal micrometers No. 428500 and setting rings with UKAS test certificate. Attention: Size 2-3; 3-6 - XT internal micrometer set for 2-point measurement. i I Measuring range mm 3-6 6-10 1 10-20 1 20-50 1 50-100 1 100-150 1 150-200 XT internal micrometer set (1391.40) (1881.90) 605.70 845.10 1380.60 1846.80 1311.30 1870.20 Number ofmicrometers 2 3 2 3 3 3 2 2 Number of setting rings 1 2 1 2 2 2 1 1 Setting ring 0 mm 25 4.5 8 12.5/20 20/35 60/80 125 175 _20-50 Special micrometer heads for 2- or 3-point measurements on request Groove measurement 0 3-300 mm Internal splining 0 8 - 300 mm Internal threads M4-M300/UN-12" (core, flank, and outside 0) Measurement with convex measuring tips 0 6 - 300 mm (exact repetition accuracy) Measurement points at irregular spacings 0 16-300 mm 66
