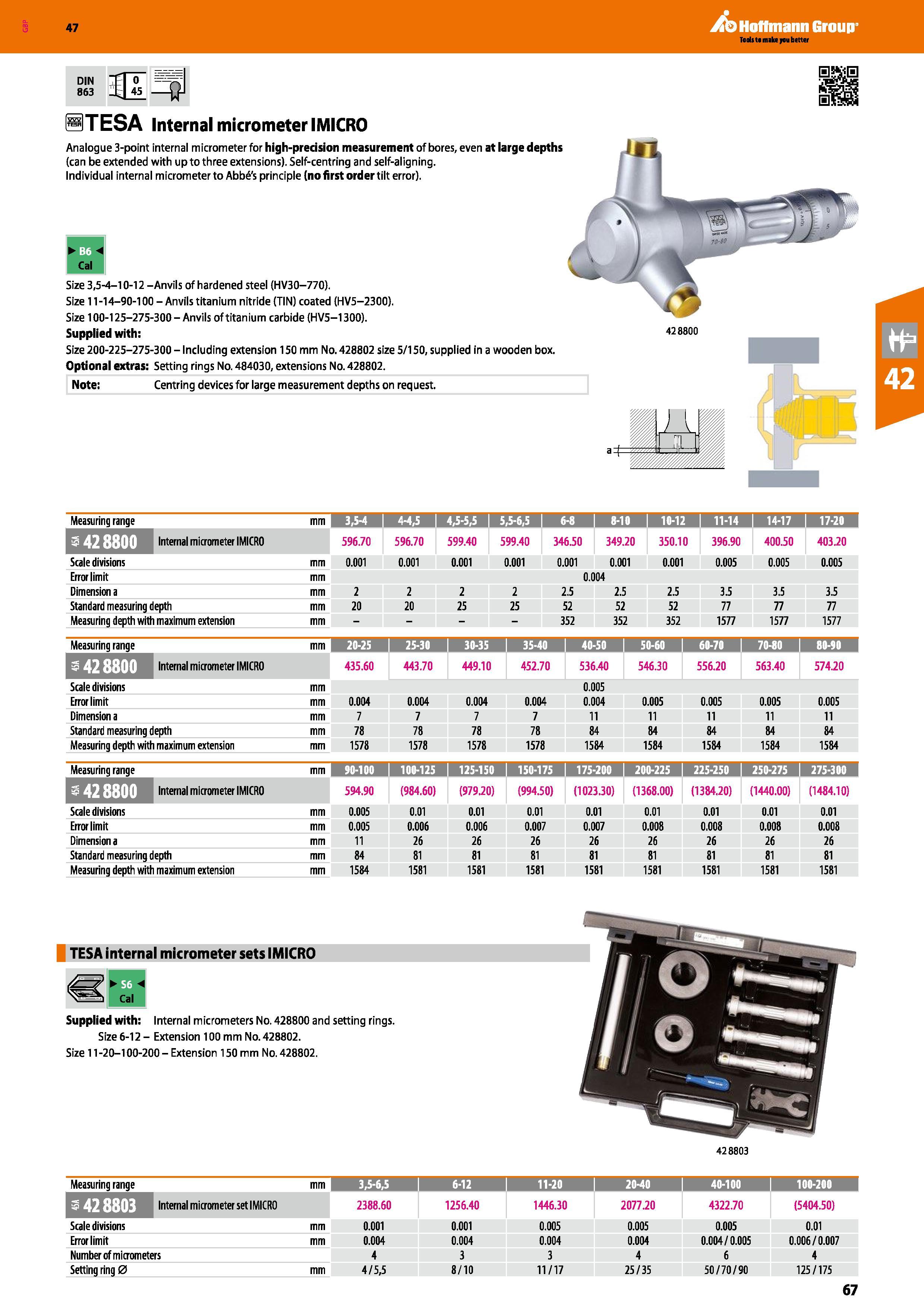

Hoffmann Group 47 DIN 863 STESA Internal micrometer IMICRO Analogue 3-point internal micrometer for high-precision measurement of bores, even at large depths (can be extended with up to three extensions). Self-centring and self-aligning. Individual internal micrometer to Abbe's principle (no first order tilt error). Size 3.5-4-10-12 -Anvils of hardened steel (HV30-770). Size 11-14-90-100 - Anvils titanium nitride (TIN) coated (HV5-2300). Size 100-125-275-300-Anvils of titanium carbide (HV5-1300). Supplied with: Size 200-225-275-300 - Including extension 150 mm No. 428802 size 5/150, supplied in a wooden box. 428800 Optional extras: Setting rings No. 484030, extensions No. 428802. Note: Centring devices for large measurement depths on request. A. , ,T / rm Measuring range mm 3,5-4 1 4-4,5 I 4,5-5,5 I 5,5-6,5 I 6-8 i i-io I 10-12 I 11-14 1 14-17 1 17-20 Internal micrometer IMICRO 596.70 596.70 599.40 599.40 346.50 349.20 350.10 396.90 400.50 403.20 Scale divisions mm 0.001 0.001 0.001 0.001 0.001 0.001 0.001 0.005 0.005 0.005 Error limit mm 0.004 Dimension a mm 2 2 2 2 2.5 2.5 2.5 3.5 3.5 3.5 Standard measuring depth mm 20 20 25 25 52 52 52 77 77 77 Measuring depth with maximum extension mm - 352 352 352 1577 1577 1577 Measuring range mm 20-25 i 25-30 i 30-35 i 35-40 40-50 i 50-60 I 60-70 i 70-80 I 80-90 yjTjTjTjTiH Internal micrometer IMICRO 435.60 443.70 449.10 452.70 536.40 546.30 556.20 563.40 574.20 Scale divisions mm 0.005 Error limit mm 0.004 0.004 0.004 0.004 0.004 0.005 0.005 0.005 0.005 Dimension a mm 7 7 7 7 11 11 11 11 11 Standard measuring depth mm 78 78 78 78 84 84 84 84 84 Measuring depth with maximum extension mm 1578 1578 1578 1578 1584 1584 1584 1584 1584 Measuring range mm 90-100 I 100-125 I 125-150 I 150-175 I 175-200 I 200-225 I 225-250 1 250-275 I 275-300 Internal micrometer IMICRO 594.90 (984.60) (979.20) (994.50) (1023.30) (1368.00) (1384.20) (1440.00) (1484.10) Scale divisions mm 0.005 0.01 0.01 0.01 0.01 0.01 0.01 0.01 0.01 Error limit mm 0.005 0.006 0.006 0.007 0.007 0.008 0.008 0.008 0.008 Dimension a mm 11 26 26 26 26 26 26 26 26 Standard measuring depth mm 84 81 81 81 81 81 81 81 81 Measuring depth with maximum extension mm 1584 1581 1581 1581 1581 1581 1581 1581 1581 TESA internal micrometer sets IMICRO Supplied with: Internal micrometers No. 428800 and setting rings. Size 6-12 - Extension 100 mm No. 428802. Size 11 -20-100-200 - Extension 150 mm No. 428802. 428803 Measuring range mm 3,5-6,5 6-12 11-20 20-40 40-100 100-200 1 Internal micrometer set IMICRO 2388.60 1256.40 1446.30 2077.20 4322.70 (5404.50) Scale divisions mm 0.001 0.001 0.005 0.005 0.005 0.01 Error limit mm 0.004 0.004 0.004 0.004 0.004/0.005 0.006 / 0.007 Number of micrometers 4 3 3 4 6 4 Setting ring 0 mm 4/5,5 8/10 11/17 25/35 50/70/90 125/175 67
