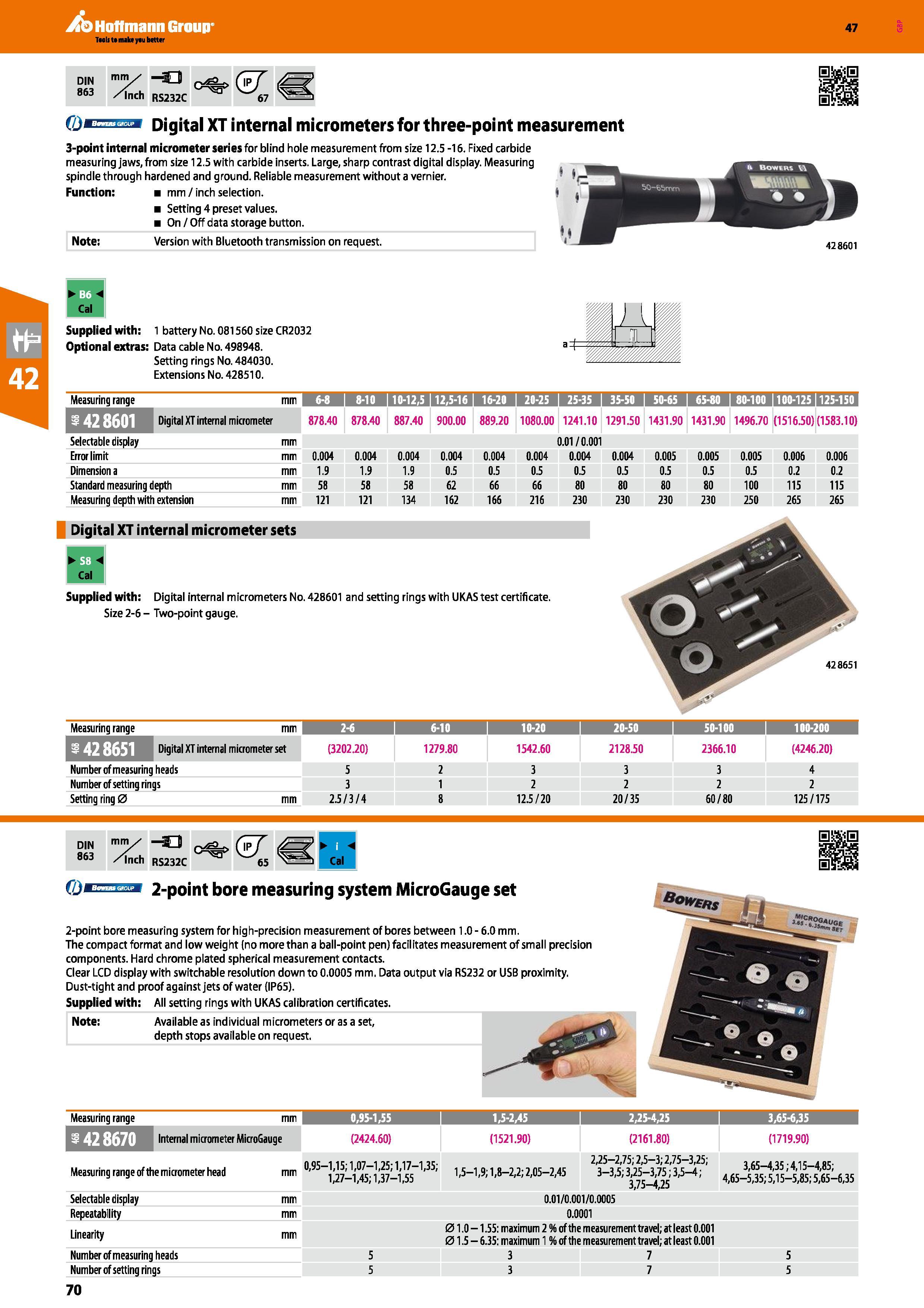

Hoffmann Group 47 QmiAimsm Digital XT internal micrometers for three-point measurement 3-point internal micrometer series for blind hole measurement from size 12.5 -16. Fixed carbide measuring jaws, from size 12.5 with carbide inserts. Large, sharp contrast digital display. Measuring spindle through hardened and ground. Reliable measurement without a vernier. Function: mm / inch selection. Setting 4 preset values. On/Off data storage button. Note; Version with Bluetooth transmission on request. Supplied with: 1 battery No. 081560 size CR2032 Optional extras: Data cable No. 498948. Setting rings No. 484030. Extensions No. 428510. Measuring range mm 6-8 1 8-10 110-12,5 112,5-16 I 16-20 1 20-25 1 25-35 1 35-50 I 50-65 I 65-80 I 80-100 1100-125 1125-150 Digital XT internal micrometer 878.40 878.40 887.40 900.00 889.20 1080.00 1241.10 1291.50 1431.90 1431.90 1496.70 (1516.50X1583.10) Selectable display mm 0.01/0.001 Error limit mm 0.004 0.004 0.004 0.004 0.004 0.004 0.004 0.004 0.005 0.005 0.005 0.006 0.006 Dimension a mm 1.9 1.9 1.9 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.2 0.2 Standard measuring depth mm 58 58 58 62 66 66 80 80 80 80 100 115 115 Measuring depth with extension mm 121 121 134 162 166 216 230 230 230 230 250 265 265 Digital XT internal micrometer sets Cal Supplied with: Digital internal micrometers No. 428601 and setting rings with UKAS test certificate. Size 2-6 - Two-point gauge. Measuring range mm 2-6 1 6-10 10-20 i 20-50 i 50-100 I 100-200 1 Digital XT internal micrometer set (3202.20) 1279.80 1542.60 2128.50 2366.10 (4246.20) Number of measuring heads 5 2 3 3 3 4 Number of setting rings 3 1 2 2 2 2 Setting ring 0 mm 2.5/3/4 8 12.5/20 20/35 60/80 125/175 DIN iS3 863 /inch RS232C o%> (57 65 + Cal 2-point bore measuring system MicroGauge set Bo ei 2-point bore measuring system for high-precision measurement of bores between 1.0 - 6.0 mm. The compact format and low weight (no more than a ball-point pen) facilitates measurement of small precision components. Hard chrome plated spherical measurement contacts. Clear LCD display with switchable resolution down to 0.0005 mm. Data output via RS232 or USB proximity. Dust-tight and proof against jets of water (IP65). Supplied with: All setting rings with UKAS calibration certificates. Note: Available as individual micrometers or as a set, depth stops available on request. & Measuring range mm 0,95-1,55 1,5-2,45 1 2,25-4,25 I 3,65-6,35 1 Internal micrometer MicroGauge (2424.60) (1521.90) (2161.80) (1719.90) Measuring range of the micrometer head mm 0,95-1,15; 1,07-1,25; 1,17-1,35; 1,27-1,45; 1,37-1,55 2,25-2,75; 2,5-3; 2,75-3,25; 1,5-1,9; 1,8-2,2; 2,05-2,45 3-3,5; 3,25-3,75; 3,5-4; 3,75-4,25 3,65-4,35 ; 4,15-4,85; 4,65-5,35; 5,15-5,85; 5,65-6,35 Selectable display mm 0.01/0.001/0.0005 Repeatability mm 0.0001 Linearity mm 01.O-1.55:maximum2%ofthe measurement travel; at least 0.001 01.5 - 6.35; maximum 1 % of the measurement travel; at least 0.001 Number of measuring heads 5 3 7 5 Number of setting rings 5 3 7 5 70 428601
