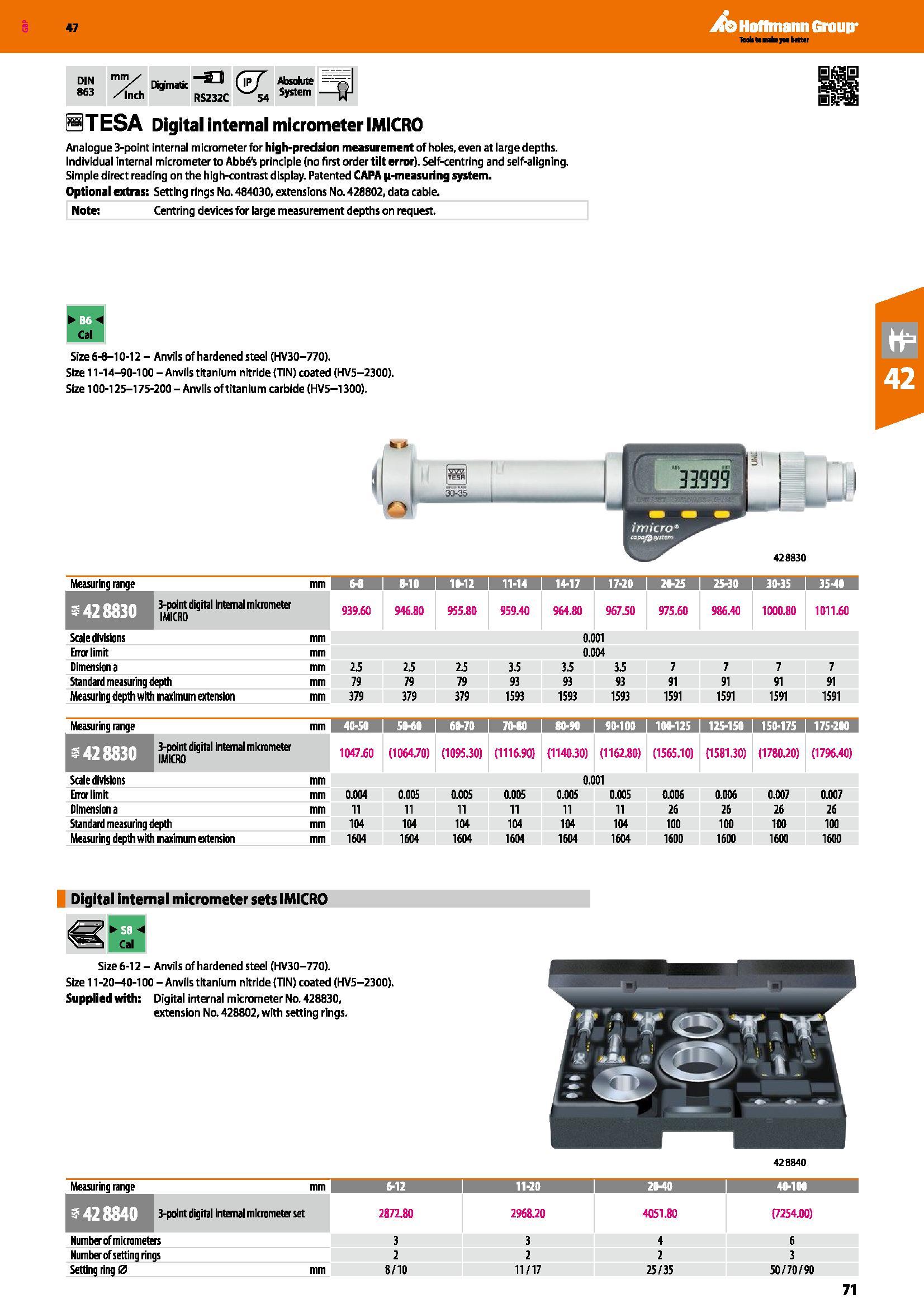

Ao Hoffmann Group 47 STESA Digital internal micrometer IMICRO Analogue 3-point internal micrometer for hlgh-predslon measurement of holes, even at large depths. Individual internal micrometer to Abba's principle (no first order tilt error). Self-centring and self-aligning. Simple direct reading on the high-contrast display. Patented CAPA i-measuring system. Optional extras: Setting rings No. 484030, extensions No. 428802, data cable. Note: Centring devices for large measu rement depths on request Cal Size 6-8-10-12 - Anvils of hardened steel (HV30-770). Size 11-14-90-100 - Anvils titanium nitride (TIN) coated (HV5-2300). Size 100-125-175-200 - Anvils of titanium carbide (HV5-1300). 428330 Measuring ranqe mm 6-8 I 8-10 1 I 11-12 1 I 11-14 1 1 14-17 1 I 17-20 1 I 28-25 25-30 I 1 30-35 1 I 35-41 M2 8830 3-point digital Internal micrometer IMICRO 939.60 946.80 955.80 959.40 964.80 967.50 975.60 986.40 1000.80 1011.60 Scale divisions mm 0.001 Error limit mm 0.004 Dimension a mm 25 25 25 35 35 35 7 7 7 7 Standard measuring depth mm 79 79 79 93 93 93 91 91 91 91 Measuring depth with maximum extension mm 379 379 379 1593 1593 1593 1591 1591 1591 1591 Measuring ranqe mm I 40-50 I 1 50-60 1 1 68-70 1 1 70-80 1 90-100 1 I 100-125 125-150 1 1 150-175 1 1 175-200 £428830 3-point digital internal micrometer IMICRO 1047.60 (1064.70) (1095.30) (1116.90) (114030) (1162.80) (1565.10) (1581.30) (1780.20) (1796.40) Scale divisions mm 0.001 Eiror limit mm 0.004 0.005 0.005 0.005 0.005 0.005 0.006 0.006 0.007 0.007 Dimension a mm 11 11 11 11 11 11 26 26 26 26 Standard measuring depth Measuring depth with maximum extension mm 104 1604 104 1604 104 1604 104 1604 104 1604 104 1604 100 1600 100 1600 100 1600 100 1600 tal internal micrometer sets IMICRO Size 6-12 - Anvils of hardened steel (HV30-770). Size 11-20-40-100 - Anvils titanium nitride (TIN) coated (HV5-2300). Supplied with: Digital internal micrometer No. 428830, extension No. 428802, with setting rings. 428840 Measuring range mm 6-12 I 11-20 I 20-40 I 40-101 I 3-point digital Internal micrometer set 2872.80 2968.20 4051.80 (7254.00) Number ofmicrameters 3 3 4 6 Number of setting rings 2 2 2 3 Setting ring 0 mm 8/10 11/17 25/35 50/70/90 71
