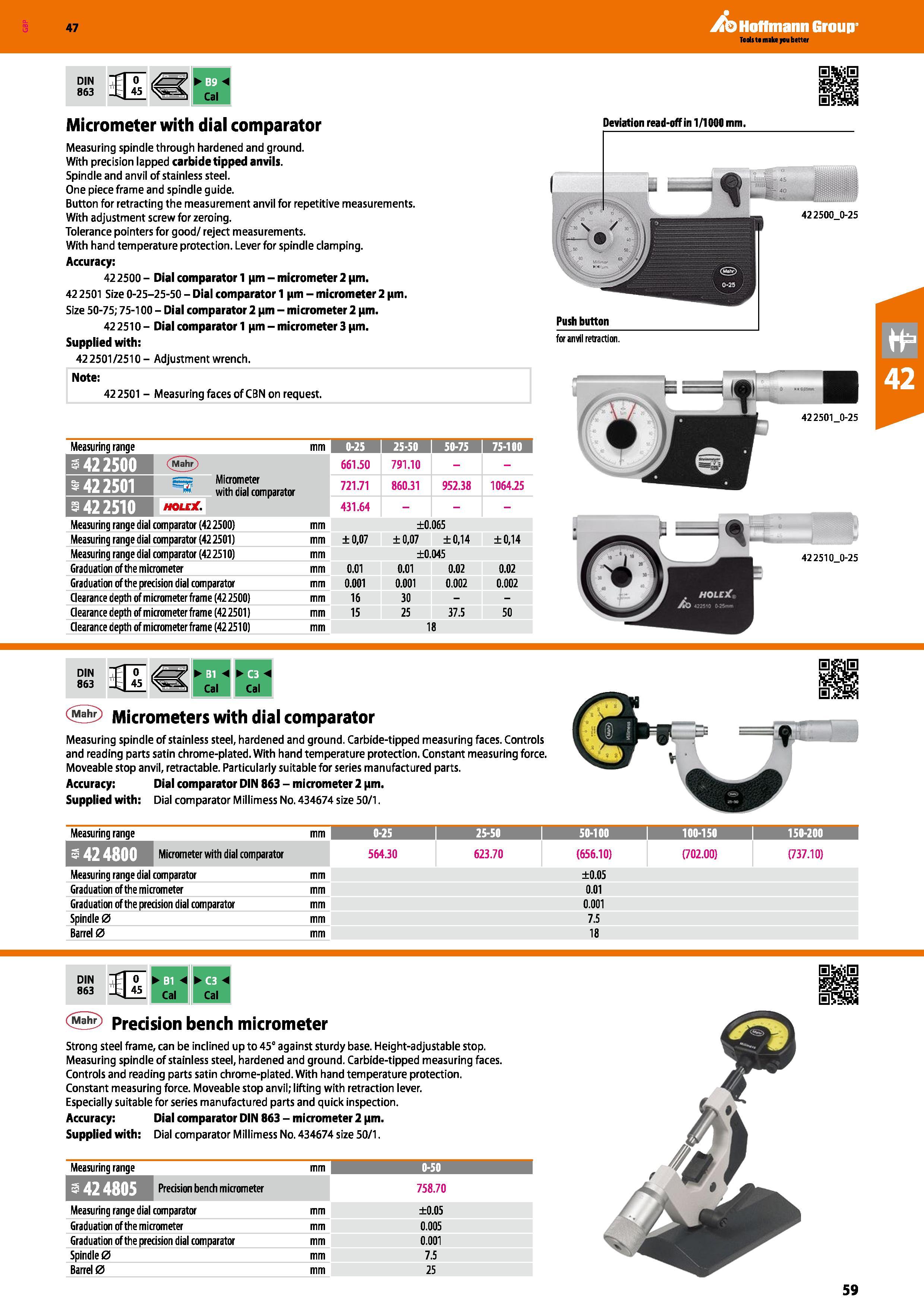

Hoffmann Group 47 DIN 863 Cal Micrometer with dial comparator Measuring spindle through hardened and ground. With precision lapped carbide tipped anvils. Spindle and anvil of stainless steel. One piece frame and spindle guide. Button for retracting the measurement anvil for repetitive measurements. With adjustment screw for zeroing. Tolerance pointers for good/ reject measurements. With hand temperature protection. Lever for spindle clamping. Accuracy: 42 2500 - Dial comparator 1 pm - micrometer 2 pm. 42 2501 Size 0-25-25-50 - Dial comparator 1 urn - micrometer 2 pm. Size 50-75; 75-100 - Dial comparator 2 pm - micrometer 2 urn. 42 2510 - Dial comparator 1 pm - micrometer 3 pm. Supplied with: 422501/2510- Adjustment wrench. Note: 42 2501 - Measuring faces of CBN on request. Deviation read-off in 1/1000 mm. M am 0-23 - J 422500 0-25 Push button for anvil retraction. 422501_0-25 Measuring range mm 0-25 1 25-50 I 50-75 1 75-100 I 661.50 791.10 - 721.71 860.31 952.38 1064.25 3 422510 431.64 Measuring range dial comparator (42 2500) mm ±0.065 Measuring range dial comparator (42 2501) mm ±0,07 ±0,07 ±0,14 ±0,14 Measuring range dial comparator (42 2510) mm ±0.045 Graduation of the micrometer mm 0.01 0.01 0.02 0.02 Graduation of the precision dial comparator mm 0.001 0.001 0.002 0.002 Clearance depth of micrometer frame (42 2500) mm 16 30 - Clearance depth of micrometer frame (42 2501) mm 15 25 37.5 50 Clearance depth of micrometer frame (42 2510) mm 18 422510_0-25 DIN 863 <5 Micrometers with dial comparator Measuring spindle of stainless steel, hardened and ground. Carbide-tipped measuring faces. Controls and reading parts satin chrome-plated. With hand temperature protection. Constant measuring force. Moveable stop anvil, retractable. Particularly suitable for series manufactured parts. Accuracy: Dial comparator DIN 863 - micrometer 2 pm. Supplied with: Dial comparator Millimess No. 434674 size 50/1. Measuring range mm 0-25 1 25-50 i 50-100 1 100-150 1 150-200 1 Micrometer with dial comparator 564.30 623.70 (656.10) (702.00) (737.10) Measuring range dial comparator mm ±0.05 Graduation of the micrometer mm 0.01 Graduation of the precision dial comparator mm 0.001 Spindle 0 mm 7.5 Barrel 0 mm 18 DIN 863 Precision bench micrometer Strong steel frame, can be inclined up to 45° against sturdy base. Height-adjustable stop. Measuring spindle of stainless steel, hardened and ground. Carbide-tipped measuring faces. Controls and reading parts satin chrome-plated. With hand temperature protection. Constant measuring force. Moveable stop anvil; lifting with retraction lever. Especially suitable for series manufactured parts and quick inspection. Accuracy: Dial comparator DIN 863 - micrometer 2 pm. Supplied with: Dial comparator Millimess No. 434674 size 50/1. Measuring range mm 0-50 1 Precision bench micrometer 758.70 Measuring range dial comparator mm ±0.05 Graduation of the micrometer mm 0.005 Graduation of the precision dial comparator mm 0.001 Spindle 0 mm 7.5 Barrel 0 mm 25 59
