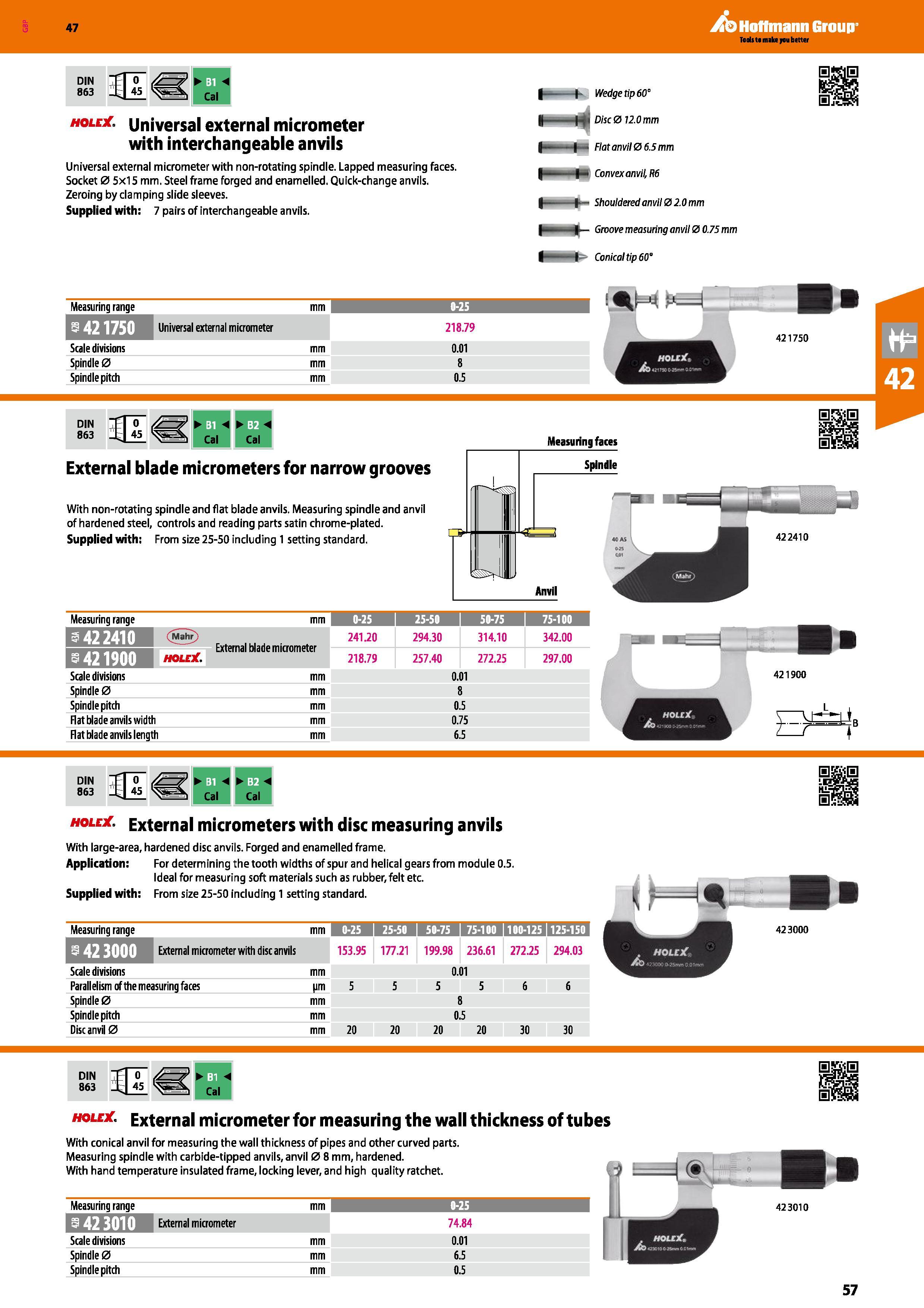

57 Каталог HOFFMANN GROUP 2016 Слесарно-монтажный и измерительный инструмент Вер. 47 ENG Стр.57

Каталог HOFFMANN GROUP 2016 Слесарный и мерительный инструмент Стр. 57 0057 ENG Lab2u

Hoffmann Group 47 DIN 863 holljC RU Cal Universal external micrometer with interchangeable anvils Universal external micrometer with non-rotating spindle. Lapped measuring faces. Socket 0 5x15 mm. Steel frame forged and enamelled. Quick-change anvils. Zeroing by clamping slide sleeves. Supplied with: 7 pairs of interchangeable anvils. Wedge tip 60° Disc 012.0 mm Flat anvil 06.5 mm Convex anvil, R6 Shouldered anvil 02.0 mm Groove measuring anvil 00.75 mm Conical tip 60° Measuring range mm 0-25 1 Universal external micrometer 218.79 Scale divisions mm 0.01 Spindle 0 mm 8 Spindle pitch mm 0.5 DIN 863 External blade micrometers for narrow grooves With non-rotating spindle and flat blade anvils. Measuring spindle and anvil of hardened steel, controls and reading parts satin chrome-plated. Supplied with; From size 25-50 including 1 setting standard. Measuring range mm 0-25 25-50 1 50-75 75-100 I 3 42 2410 (Mahr) External blade micrometer 241.20 294.30 314.10 342.00 421900 1 HOLE . 218.79 257.40 272.25 297.00 Scale divisions mm 0.01 Spindle 0 mm 8 Spindle pitch mm 0.5 Flat blade anvils width mm 0.75 Flat blade anvils length mm 6.5 3m 421750 421900 DIN 863 nj Cal Cal hole . External micrometers with disc measuring anvils With large-area, hardened disc anvils. Forged and enamelled frame. Application: For determining the tooth widths of spur and helical gears from module 0.5. Ideal for measuring soft materials such as rubber, felt etc. Supplied with: From size 25-50 including 1 setting standard. Measuring range mm 0-25 I 25-50 External micrometer with disc anvils 153.95 177.21 199.98 236.61 272.25 294.03 Scale divisions mm 0.01 Parallelism of the measuring faces im 5 5 5 5 6 6 Spindle 0 mm 8 Spindle pitch mm 0.5 Disc anvil 0 mm 20 20 20 20 30 30 423000 DIN 863 holex. External micrometer for measuring the wall thickness of tubes With conical anvil for measuring the wall thickness of pipes and other curved parts. Measuring spindle with carbide-tipped anvils, anvil 0 8 mm, hardened. With hand temperature insulated frame, locking lever, and high quality ratchet. Measuring range mm 0-25 1 I 423010 W 74.84 Scale divisions mm 0.01 Spindle 0 mm 6.5 Spindle pitch mm 0.5 423010 57
