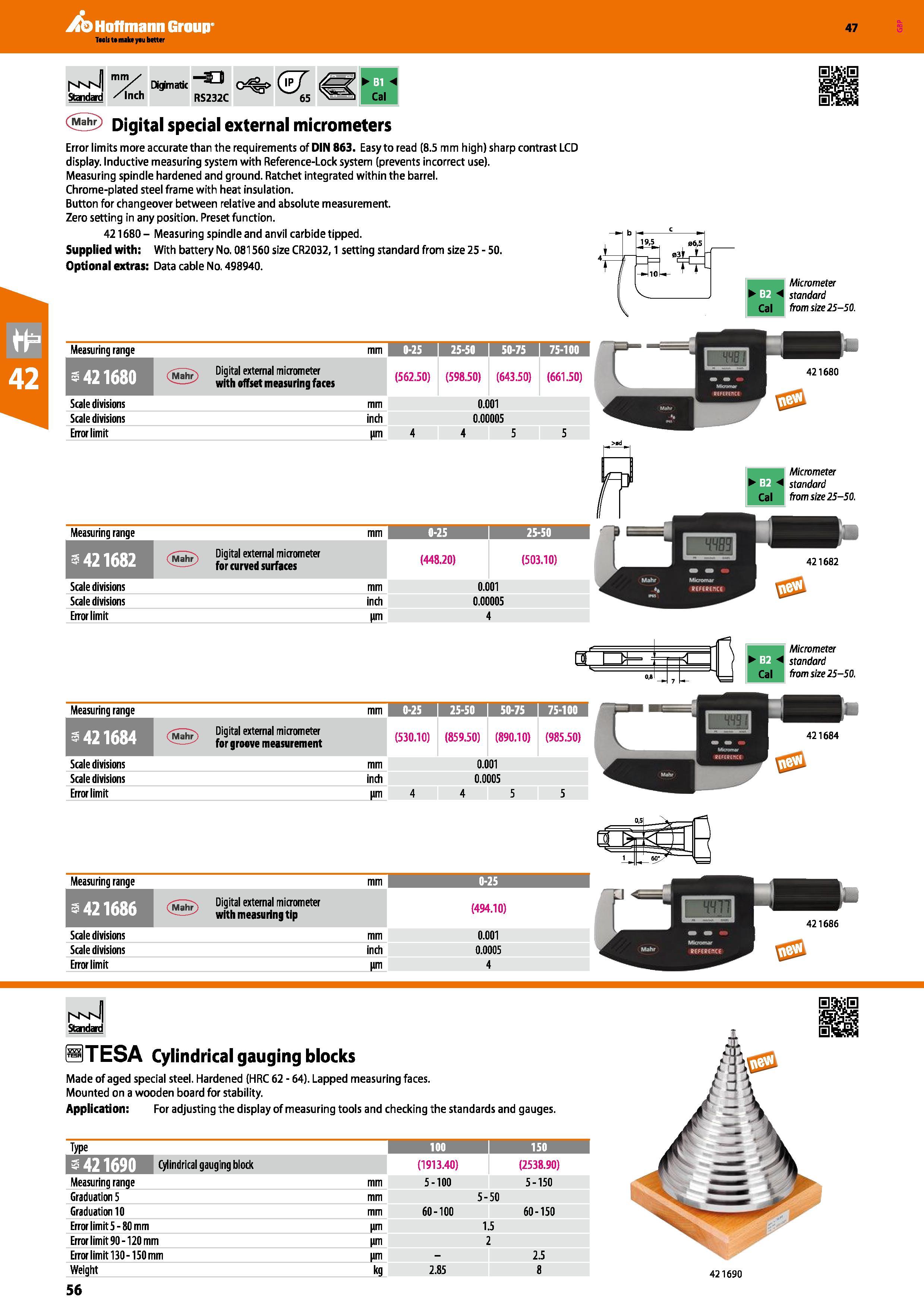

Hoffmann Group 47 I'vM'J mV Digimatic O o Q f Standard /inch RS232C 65 Cal <5 Digital special external micrometers Error limits more accurate than the requirements of DIN 863. Easy to read (8.5 mm high) sharp contrast LCD display. Inductive measuring system with Reference-Lock system (prevents incorrect use). Measuring spindle hardened and ground. Ratchet integrated within the barrel. Chrome-plated steel frame with heat insulation. Button for changeover between relative and absolute measurement. Zero setting in any position. Preset function. 421680 - Measuring spindle and anvil carbide tipped. Supplied with: With battery No. 081560 size CR2032,1 setting standard from size 25 - 50. Optional extras: Data cable No. 498940. i b 19,5 l 3to < Cal Micrometer standard from size 25-50. Measuring range mm 0-25 1 25-50 1 50-75 I 75-100 1 WM Digital external micrometer with offset measuring faces (562.50) (598.50) (643.50) (661.50) Scale divisions mm 0.001 Scale divisions inch 0.00005 Error limit im 4 4 5 5 Measuring range mm 0-25 1 25-50 I Digital external micrometer for curved surfaces 421682 (448.20) (503.10) Scale divisions mm 0.001 Scale divisions inch 0.00005 Error limit un 4 421682 Micrometer standard Cal from size 25-50. Measuring range mm 0-25 1 25-50 1 50-75 1 75-100 1 s421684 Digital external micrometer for groove measurement (530.10) (859.50) (890.10) (985.50) Scale divisions mm 0.001 Scale divisions inch 0.0005 Error limit im 4 4 5 5 Measuring range mm 0-25 I 3 421686 Digital external micrometer with measuring tip (494.10) Scale divisions mm 0.001 Scale divisions inch 0.0005 Error limit im 4 Standard STESA Cylindrical gauging blocks Made of aged special steel. Hardened (HRC 62 - 64). Lapped measuring faces. Mounted on a wooden board for stability. Application: For adjusting the display of measuring tools and checking the standards and gauges. Type 100 150 1 r.-Vlil Cylindrical gauging block (1913.40) (2538.90) Measuring range mm 5-100 5-150 Graduation 5 mm 5-50 Graduation 10 mm 60-100 60-150 Error limit 5 -80 mm im 1.5 Error limit 90-120 mm im 2 Error limit 130 -150 mm im - 25 Weight kg 2.85 8 421690 56
