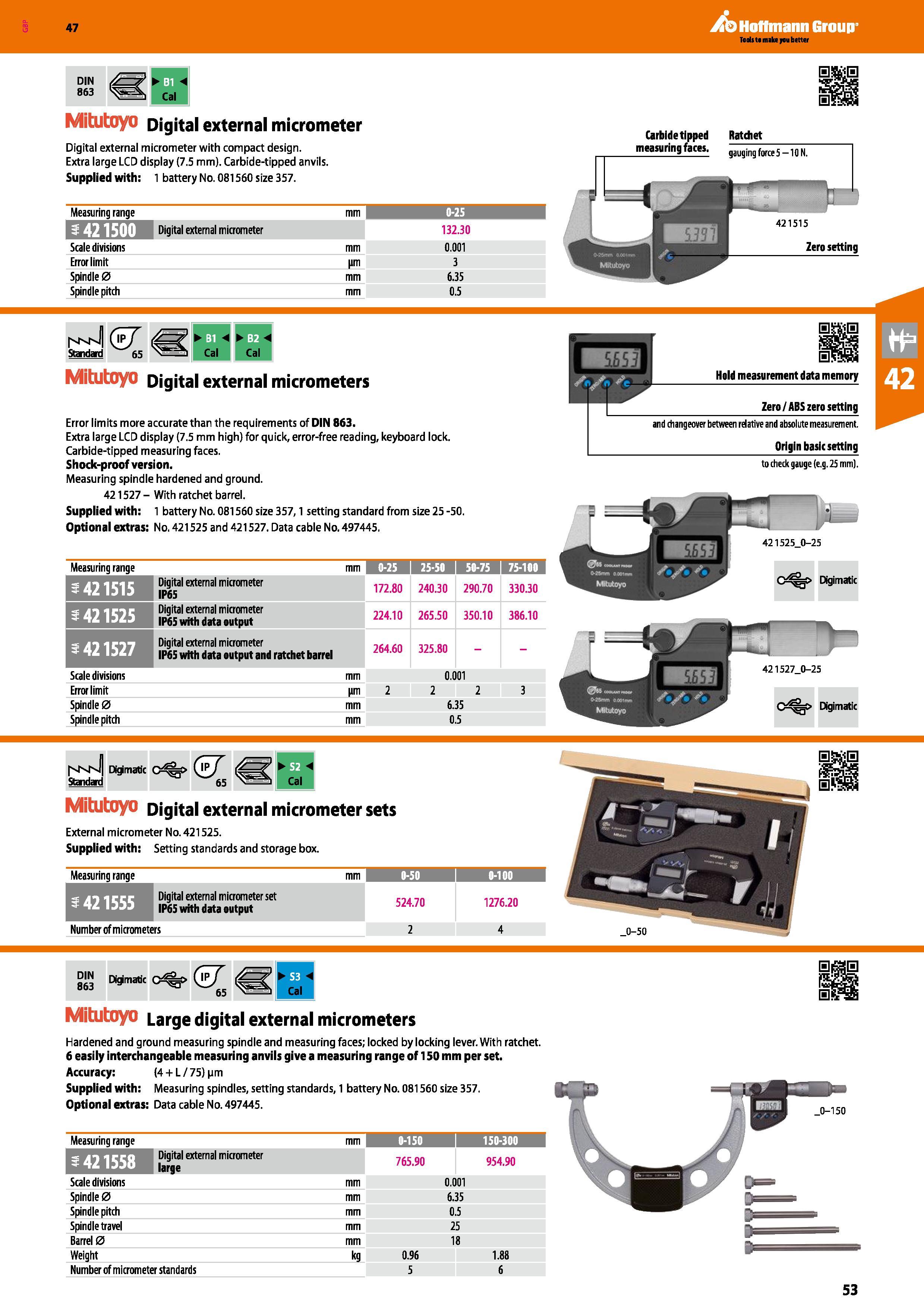

Hoffmann Group 47 DIN 863 Mitutoyo Digital external micrometer Digital external micrometer with compact design. Extra large LCD display (7.5 mm). Carbide-tipped anvils. Supplied with: 1 battery No. 081560 size 357. 0 i0 si Carbide tipped measuring faces. Ratchet Measuring range mm 0-25 i PA k11111 Diqital external micrometer 132.30 Scale divisions mm 0.001 Error limit im 3 Spindle 0 mm 6.35 Spindle pitch mm 0.5 (£J Standard 65 Mitutoyo Digital external micrometers Error limits more accurate than the requirements of DIN 863. Extra large LCD display (7.5 mm high) for quick, error-free reading, keyboard lock. Carbide-tipped measuring faces. Shock-proof version. Measuring spindle hardened and ground. 421527 - With ratchet barrel. Supplied with: 1 battery No. 081560 size 357,1 setting standard from size 25 -50. Optional extras: No. 421525 and 421527. Data cable No. 497445. to check gauge e.g. 25 mm). Measuring range Scale divisions Error limit Spindle 0 Spindle pitch mm 0-25 25-50 50-75 75-100 Digital external micrometer IP65 172.80 240.30 290.70 330.30 Digital external micrometer IP65 with data output 224.10 265.50 350.10 386.10 Digital external micrometer IP65 with data output and ratchet barrel 264.60 325.80 - mm 0.001 im 2 2 2 3 mm 6.35 mm 0.5 vKn Digmatic (zf Standard 65 Mitutoyo Digital external micrometer sets External micrometer No. 421525. Supplied with: Setting standards and storage box. Measuring range 3 421555 Digital external micrometer set IP65 with data output Number ofmicrometers 524.70 2 1276.20 4 _0-50 DIN 863 Digmatic c%> (£T 65 Mitutoyo Large digital external micrometers Hardened and ground measuring spindle and measuring faces; locked by locking lever. With ratchet. 6 easily interchangeable measuring anvils give a measuring range of 150 mm per set. Accuracy: (4 + L/75)pm Supplied with: Measuring spindles, setting standards, 1 battery No. 081560 size 357. Optional extras: Data cable No. 497445. Measuring range mm 0-150 I 150-300 Digital external micrometer large 765.90 954.90 Scale divisions mm 0.001 Spindle 0 mm 6.35 Spindle pitch mm 0.5 Spindle travel mm 25 Barrel 0 mm 18 Weight kg 0.96 1.88 Number of micrometer standards 5 6 C p Digimatic 1525_0-25 C jO Digimatic 421527_0-25 53
