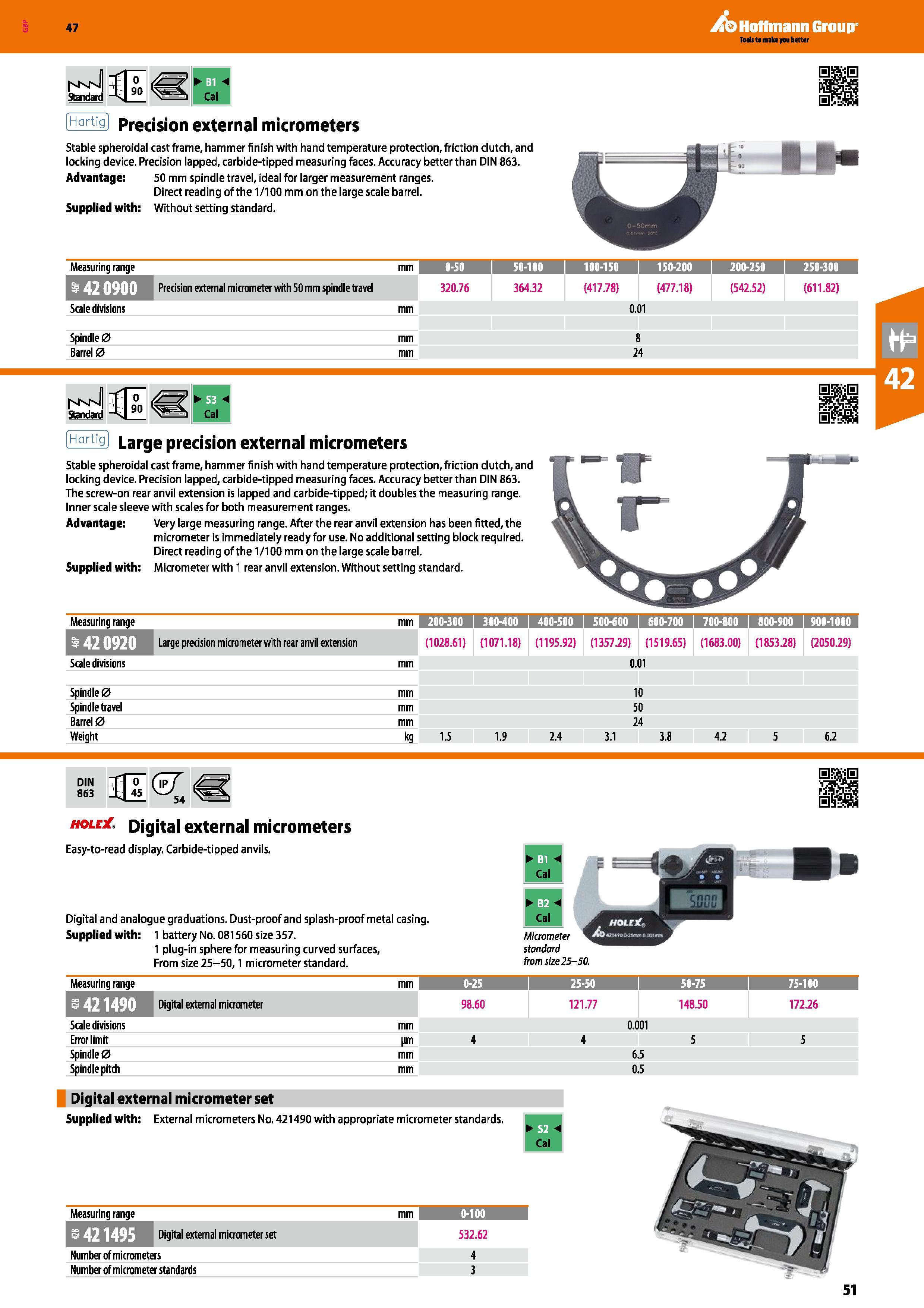

Hoffmann Group 47 RU Cal Hgrt'g Precision external micrometers Stable spheroidal cast frame, hammer finish with hand temperature protection, friction clutch, and locking device. Precision lapped, carbide-tipped measuring faces. Accuracy better than DIN 863. Advantage: 50 mm spindle travel, ideal for larger measurement ranges. Direct reading of the 1/100 mm on the large scale barrel. Supplied with: Without setting standard. Measuring range mm 0-50 i 50-100 100-150 150-200 200-250 i 250-300 S Precision external micrometer with 50 mm spindle travel 320.76 364.32 (417.78) (477.18) (542.52) (611.82) Scale divisions Spindle 0 Barrel 0 mm 0.01 24 (Hgrt'g) Large precision external micrometers Stable spheroidal cast frame, hammer finish with hand temperature protection, friction clutch, and locking device. Precision lapped, carbide-tipped measuring faces. Accuracy better than DIN 863. The screw-on rear anvil extension is lapped and carbide-tipped; it doubles the measuring range. Inner scale sleeve with scales for both measurement ranges. Advantage: Very large measuring range. After the rear anvil extension has been fitted, the micrometer is immediately ready for use. No additional setting block required. Direct reading of the 1/100 mm on the large scale barrel. Supplied with: Micrometer with 1 rear anvil extension. Without setting standard. Measuring range IUiW Large precision micrometer with rear anvil extension Scale divisions (1028.61) (1071.18) (1195.92) (1357.29) (1519.65) (1683.00) (1853.28) (2050.29) mm 0.01 Spindle 0 Spindle travel Barrel 0 Weight mm kg 1.5 1.9 2.4 10 50 24 3.1 3.8 4.2 6.2 DIN 863 hole . Digital external micrometers Easy-to-read display. Carbide-tipped anvils. Digital and analogue graduations. Dust-proof and splash-proof metal casing. Supplied with: 1 battery No. 081560 size 357. 1 plug-in sphere for measuring curved surfaces. From size 25-50, 1 micrometer standard. Measuring range mm 0-25 i 25-50 I 50-75 75-100 1 Digital external micrometer 98.60 121.77 148.50 172.26 Scale divisions mm 0.001 Error limit im 4 4 5 5 Spindle 0 mm 6.5 Spindle pitch mm 0.5 Digital external micrometer set Supplied with: External micrometers No. 421490 with appropriate micrometer standards. Cal Measuring range s 421495 Number ofmicrometers Number of micrometer standards Digital external micrometer set 532.62 4 3
