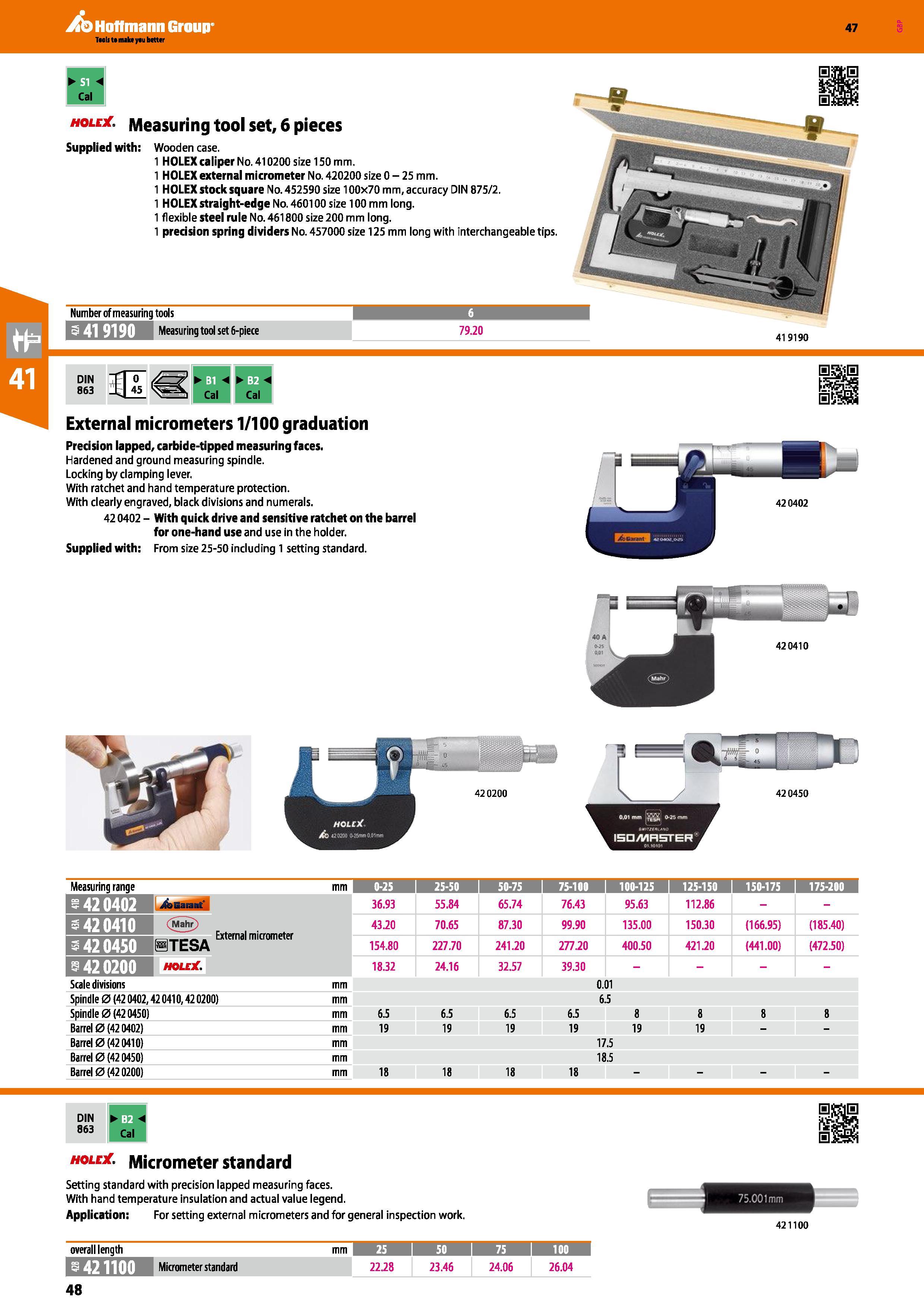

Hoffmann Group 47 1 1 Cal hole . Measuring tool set, 6 pieces Supplied with: Wooden case. 1 HOLEX caliper No. 410200 size 150 mm. 1 HOLEX external micrometer No. 420200 size 0 - 25 mm. 1 HOLEX stock square No. 452590 size 100x70 mm, accuracy DIN 875/2. 1 HOLEX straight-edge No. 460100 size 100 mm long. 1 flexible steel rule No. 461800 size 200 mm long. 1 precision spring dividers No. 457000 size 125 mm long with interchangeable tips. Number of measuring tools Measuring tool set (-piece 79.20 41 9190 DIN 863 External micrometers 1/100 graduation Precision lapped, carbide-tipped measuring faces. Hardened and ground measuring spindle. Locking by clamping lever. With ratchet and hand temperature protection. With clearly engraved, black divisions and numerals. 42 0402 - With quick drive and sensitive ratchet on the barrel for one-hand use and use in the holder. Supplied with: From size 25-50 including 1 setting standard. Measuring range mm 0-25 25-50 50-75 75-100 I 100-125 125-150 150-175 175-200 I e420402 36.93 55.84 65.74 76.43 95.63 112.86 IMltilM (Mahr) 43.20 70.65 87.30 99.90 135.00 150.30 (166.95) (185.40) t’-l'EJ flSTESA 154.80 227.70 241.20 277.20 400.50 421.20 (441.00) (472.50) jJHlWlllW HOLE . 18.32 24.16 32.57 39.30 - Scale divisions mm 0.01 Spindle 0 (42 0402,42 0410,42 0200) mm 6.5 Spindle 0(420450) mm 6.5 6.5 6.5 6.5 8 8 8 8 Barrel 0(42 0402) mm 19 19 19 19 19 19 Barrel 0(42 0410) mm 17.5 Barrel 0(42 0450) mm 18.5 Barrel 0(42 0200) mm 18 18 18 18 - DIN 863 hole . Micrometer standard Setting standard with precision lapped measuring faces. With hand temperature insulation and actual value legend. Application: For setting external micrometers and for general inspection work. 421100 overall length mm i 50 1 75 i no S 15 421100 22.28 23.46 24.06 26.04 420450 48
