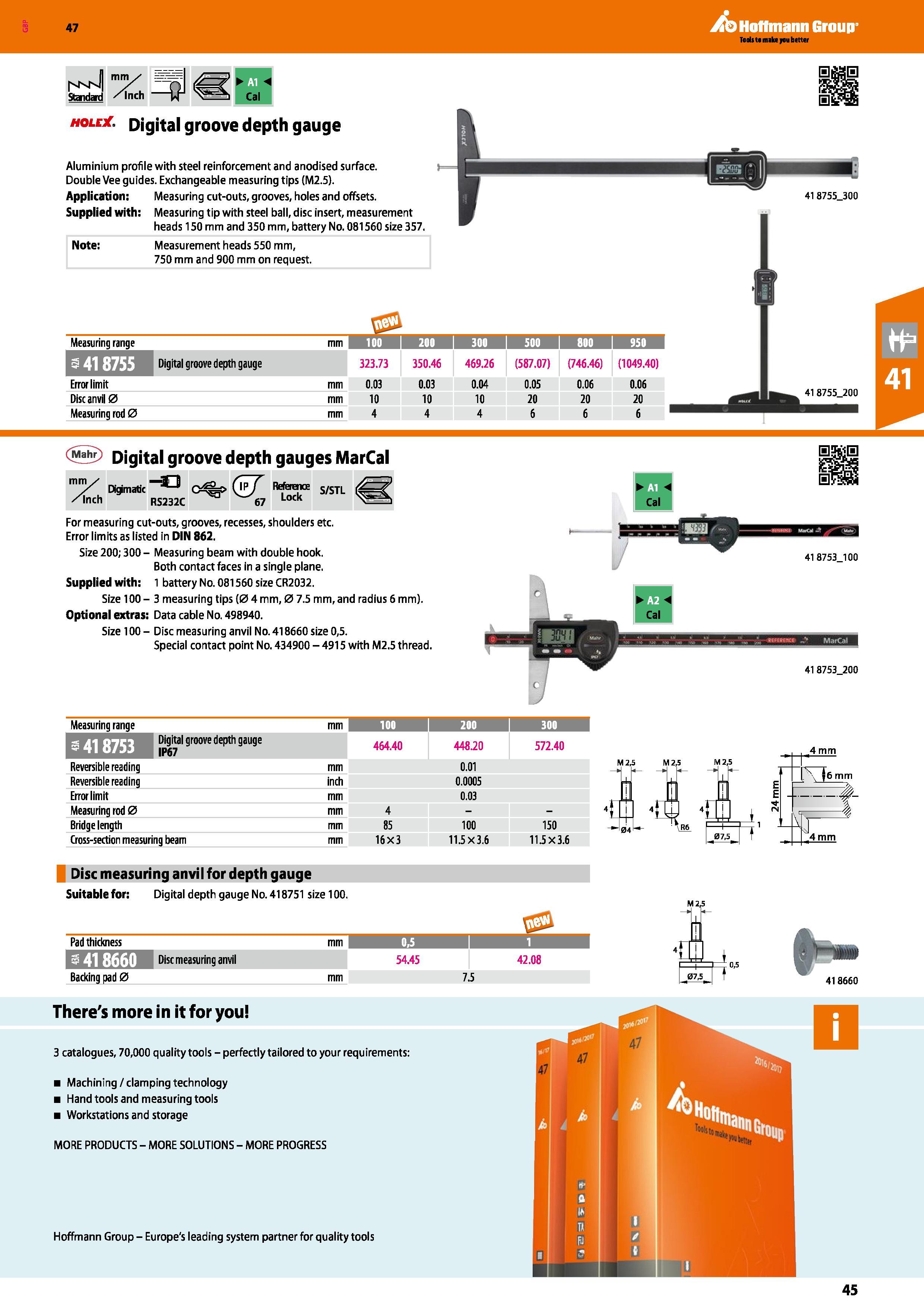

Hoffmann Group 47 Standatd mm /inch M Cal holex. Digital groove depth gauge Aluminium profile with steel reinforcement and anodised surface. Double Vee guides. Exchangeable measuring tips (M2.5). Application: Measuring cut-outs, grooves, holes and offsets. Supplied with: Measuring tip with steel ball, disc insert, measurement heads 150 mm and 350 mm, battery No. 081560 size 357. Note: Measurement heads 550 mm, 750 mm and 900 mm on request. 41 8755_300 Measuring range mm 100 immi 300 1 500 IBilll 950 S Digital groove depth gauge 323.73 350.46 469.26 (587.07) (746.46) (1049.40) Error limit mm 0.03 0.03 0.04 0.05 0.06 0.06 Disc anvil 0 mm 10 10 10 20 20 20 Measuring rod 0 mm 4 4 4 6 6 6 <5 Digital groove depth gauges MarCal mm / 13 Dkjmatic /Inch RS232C 67 Reference Lock S/STL Cal For measuring cut-outs, grooves, recesses, shoulders etc. Error limits as listed in DIN 862. Size 200; 300 - Measuring beam with double hook. Both contact faces in a single plane. Supplied with: 1 battery No. 081560 size CR2032. Size 100 - 3 measuring tips (0 4 mm, 0 7.5 mm, and radius 6 mm). Optional extras: Data cable No. 498940. Size 100 - Disc measuring anvil No. 418660 size 0,5. Special contact point No. 434900 - 4915 with M2.5 thread. 1 c J Measuring range mm 100 200 I 300 I TITTT B Digital groove depth gauge ip67 464.40 448.20 572.40 Reversible reading mm 0.01 Reversible reading inch 0.0005 Error limit mm 0.03 Measuring rod 0 mm 4 Bridge length mm 85 100 150 Cross-section measuring beam mm 16x3 11.5x3.6 11.5x3.6 M 2,5 M 2,5 M 2,5 -ir at 4 418753 100 41 8753 200 16 mm =1 Disc measuring anvil for depth gauge Suitable for: Digital depth gauge No. 418751 size 100. 1 Pad thickness mm 0,5 I i am 4rm i Uiscmeasurino anvil 54.45 42.08 UU I l ) 1 0,5 Backing pad 0 mm 7.5 07,5 f There's more in it for you 3 catalogues, 70,000 quality tools - perfectly tailored to your requirements: Machining /clamping technology Hand tools and measuring tools Workstations and storage MORE PRODUCTS - MORE SOLUTIONS - MORE PROGRESS Wnm 418660 Hoffmann Group - Europe's leading system partner for quality tools 45
