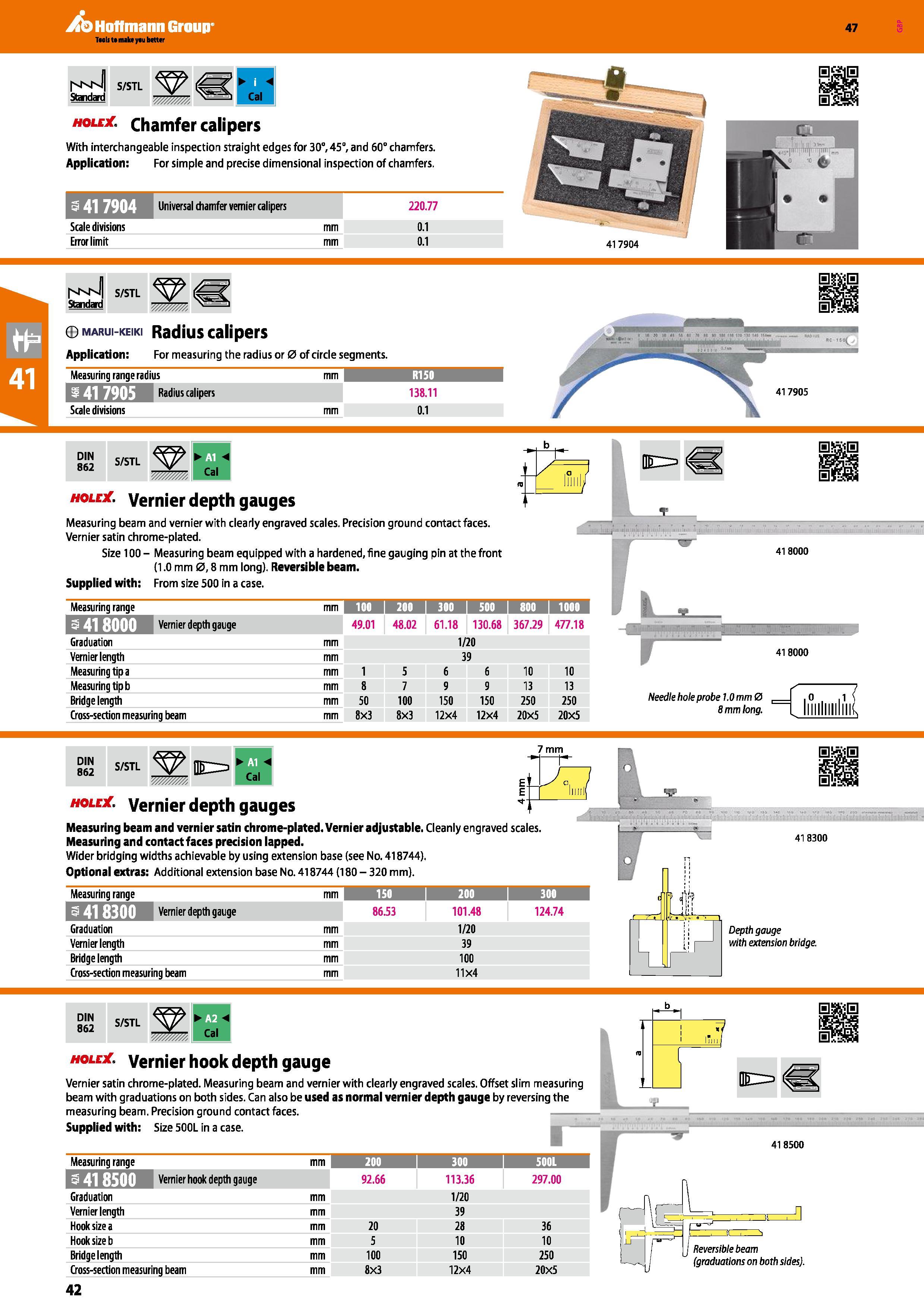

Hoffmann Group 47 Standard S/STL Cal hole . Chamfer calipers With interchangeable inspection straight edges for 30°, 45°, and 60° chamfers. Application: For simple and precise dimensional inspection of chamfers. Universal chamfer vernier calipers 220.77 Scale divisions mm 0.1 Error limit mm 0.1 41 7904 Standard S/STL marui-keiki Radius calipers Application: For measuring the radius or 0 of circle segments. Measuring range radius mm R150 i 417905 Radius calipers 138.11 41 7905 DIN 862 S/STL Cal hole . Vernier depth gauges Measuring beam and vernier with clearly engraved scales. Precision ground contact faces. Vernier satin chrome-plated. Size 100 - Measuring beam equipped with a hardened, fine gauging pin at the front (1.0 mm 0,8 mm long). Reversible beam. Supplied with: From size 500 in a case. Measuring range mm 101 I 200 1 300 I 500 IKBI 1000 Tf:7iTiTTB Vernierdenth nairae 49.01 48.02 61.18 130.68 367.29 477.18 Graduation mm 1/20 Vernier length mm 39 Measuring tip a mm 1 5 6 6 10 10 Measuring tip b mm 8 7 9 9 13 13 Bridge length mm 50 100 150 150 250 250 Cross-section measuring beam mm 8x3 8x3 12X4 12x4 20x5 20x5 418000 Needle hole probe 1.0 mm 0 8 mm long. DIN 862 S/STL u 7 mm hole . Vernier depth gauges Measuring beam and vernier satin chrome-plated. Vernier adjustable. Cleanly engraved scales. Measuring and contact faces precision lapped. Wider bridging widths achievable by using extension base (see No. 418744). Optional extras: Additional extension base No. 418744 (180-320 mm). Measuring range mm 150 200 I 300 :ilifc lll Vernier depth gauge 86.53 101.48 124.74 Graduation mm 1/20 Vernier length mm 39 Bridge length mm 100 Cross-section measuring beam 11x4 41 8300 Depth gauge with extension bridge. DIN 862 S/STL W///M g < Cal holex. vernier hook depth gauge Vernier satin chrome-plated. Measuring beam and vernier with clearly engraved scales. Offset slim measuring beam with graduations on both sides. Can also be used as normal vernier depth gauge by reversing the measuring beam. Precision ground contact faces. Supplied with: Size 500L in a case. 418500 Measuring range mm 200 300 i 500L liVMlfl Vernier hook depth gauge 92.66 113.36 297.00 Graduation mm 1/20 Vernier length mm 39 Hook size a mm 20 28 36 Hook size b mm 5 10 10 Bridge length mm 100 150 250 Cross-section measuring beam mm 8x3 12x4 20x5 J Reversible beam (graduations on both sides). 42
