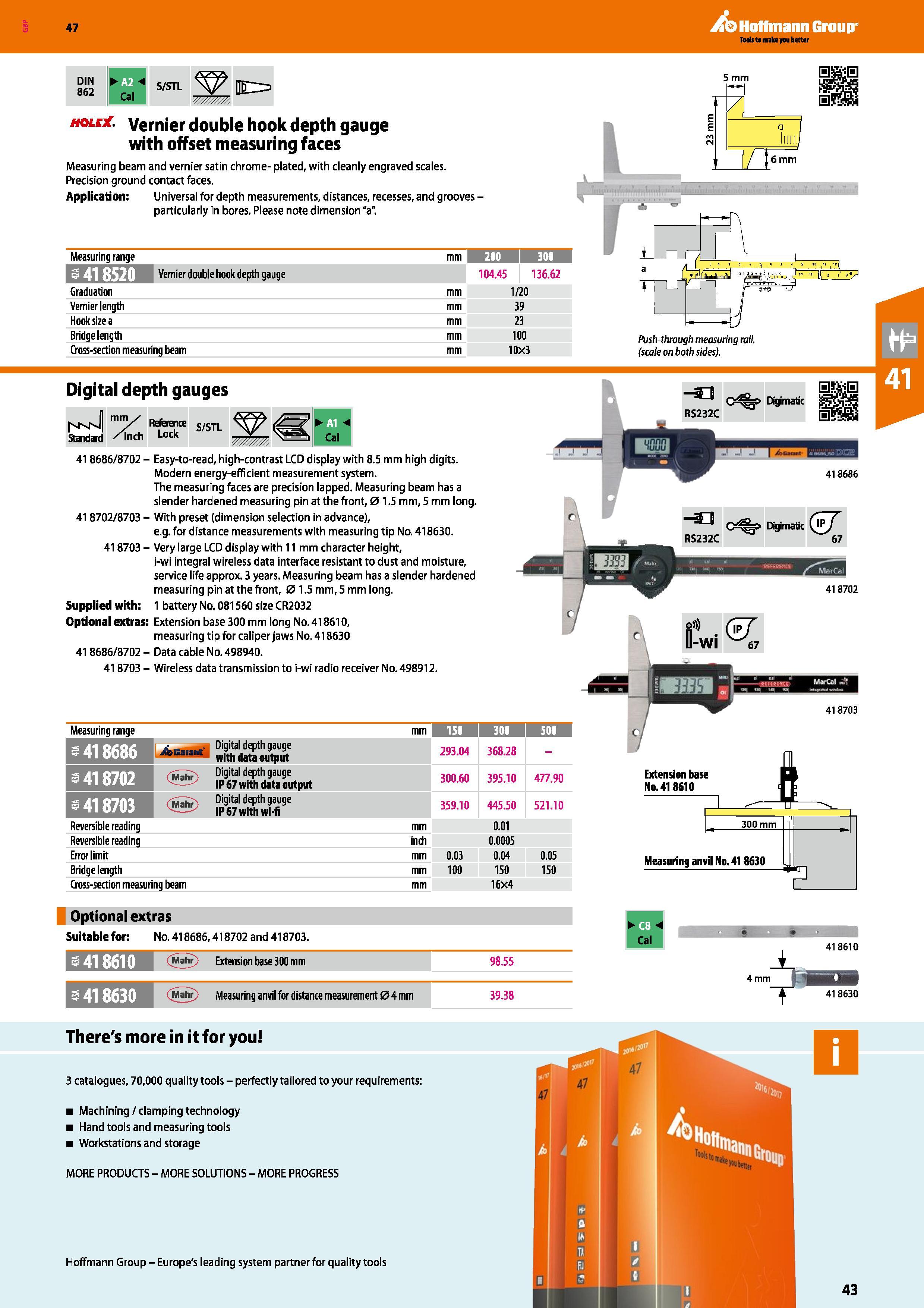

Hoffmann Group 47 DIN 862 Cal S/STL 5 mm holex. vernier double hook depth gauge with offset measuring faces Measuring beam and vernier satin chrome- plated, with cleanly engraved scales. Precision ground contact faces. Application: Universal for depth measurements, distances, recesses, and grooves particularly in bores. Please note dimension "a". Measuring range mm PiF't 11 Vernier double hook death aauae 104.45 136.62 Graduation mm 1/20 Vernier length mm 39 Hook size a mm 23 Bridge length mm 100 Cross-section measuring beam mm 10x3 6 mm Push-through measuring rail, (scale on both sides). Digital depth gauges vmJ mm Reference Inch Lock S/STL 3l3 0 = Digimatic RS232C Standatd 418686/8702 - Easy-to-read, high-contrast LCD display with 8.5 mm high digits. Modern energy-efficient measurement system. The measuring faces are precision lapped. Measuring beam has a slender hardened measuring pin at the front, 01.5 mm, 5 mm long. 418702/8703 - With preset (dimension selection in advance), e.g. for distance measurements with measuring tip No. 418630. 418703 - Very large LCD display with 11mm character height, i-wi integral wireless data interface resistant to dust and moisture, service life approx. 3 years. Measuring beam has a slender hardened measuring pin at the front, 0 1.5 mm, 5 mm long. Supplied with: 1 battery No. 081560 size CR2032 Optional extras: Extension base 300 mm long No. 418610, measuring tip for caliper jaws No. 418630 418686/8702 - Data cable No. 498940. 418703 - Wireless data transmission to i-wi radio receiver No. 498912. Measuring range mm 150 sn J paiant Digital depth gauge with data output 293.04 368.28 - 3 418702 (Mahr) Digital depth gauge IP 67 with data output 300.60 395.10 477.90 (Mahr) Digital depth gauge IP 67 with wi-fi 359.10 445.50 521.10 Reversible reading mm 0.01 Reversible reading inch 0.0005 Error limit mm 0.03 0.04 0.05 Bridge length mm 100 150 150 Cross-section measuring beam mm 16x4 Measuring am 300 mm fil No. 41 8630 T1 Optional extras Suitable for: No. 418686,418702 and 418703. (Mahr) Extension base 300 mm Cal s 41 8610 98.55 (Mahr) Measuring anvil for distance measurement 0 4 mm There's more in it for you 3 catalogues, 70,000 quality tools - perfectly tailored to your requirements: Machining /clamping technology Hand tools and measuring tools Workstations and storage MORE PRODUCTS - MORE SOLUTIONS - MORE PROGRESS 39.38 4mm HHQB 41 8630 Hoffmann Group - Europe's leading system partner for quality tools 43
