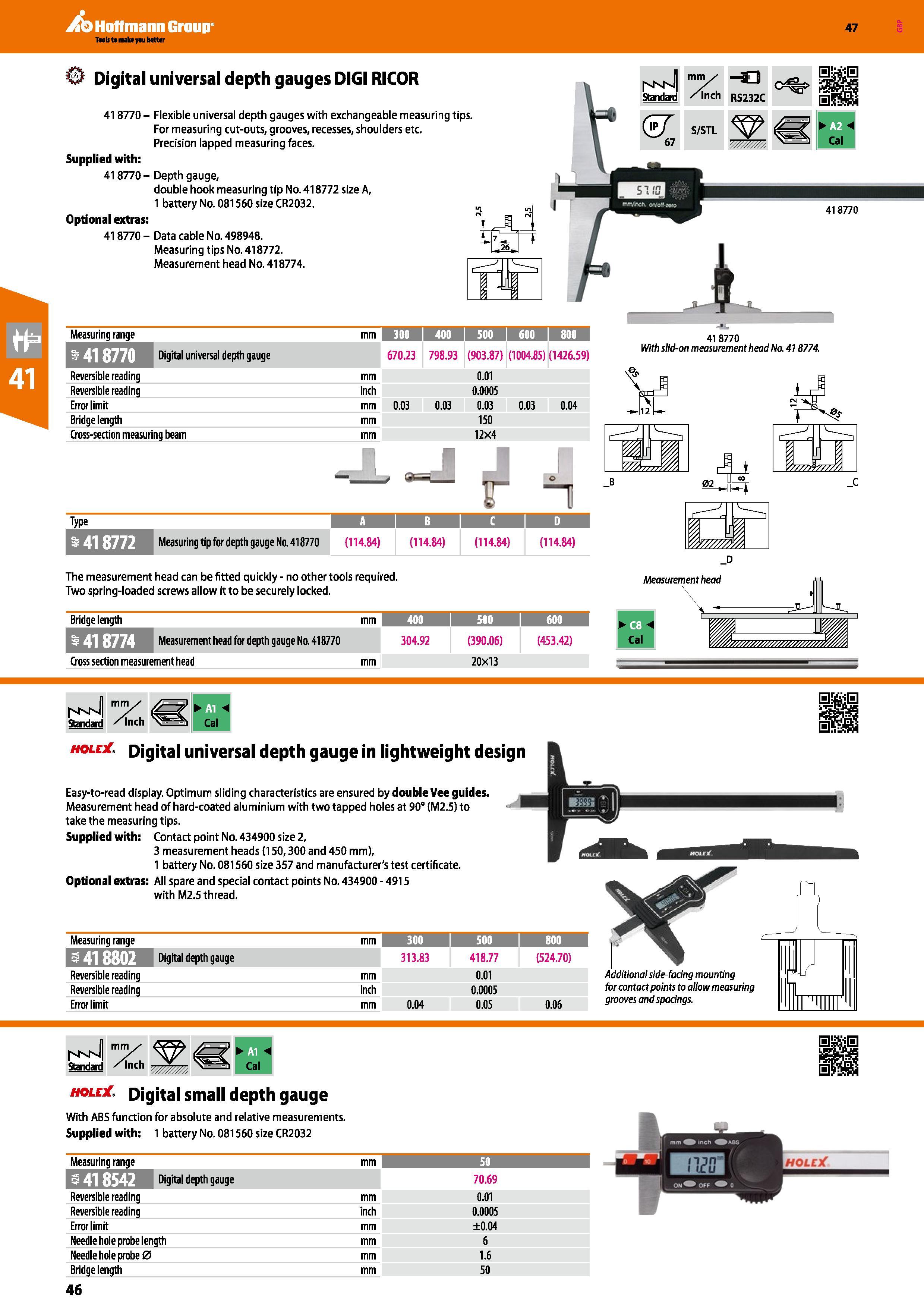

Hoffmann Group 47 Digital universal depth gauges DIGIRICOR 418770 - Flexible universal depth gauges with exchangeable measuring tips. For measuring cut-outs, grooves, recesses, shoulders etc. Precision lapped measuring faces. Supplied with: 418770 - Depth gauge, double hook measuring tip No. 418772 size A, 1 battery No. 081560 size CR2032. Optional extras: 418770 - Data cable No. 498948. JJ Measuring tips No. 418772. Measurement head No. 418774. Measuring range mm 300 I 400 I 500 W: 'M Digital universal depth gauge 670.23 798.93 (903.87) (1004.85) (1426.59) Reversible reading mm 0.01 Reversible reading inch 0.0005 Error limit mm 0.03 0.03 0.03 0.03 0.04 Bridge length mm 150 Cross-section measuring beam mm 12X4 1 J 1 J VN J Standard mm /inch -an RS232C ( T 67 S/STL tmm 1 SsiiS 0 Cal II wo F 1 Type 418772 41 8770 With slid-on measurement head No, 418774. 11 Measuring tipfor depth gauge No. 418770 (114.84) (114.84) (114.84) (114.84) iw/ k The measurement head can be fitted quickly - no other tools required. Two spring-loaded screws allow it to be securely locked. Measurement head Bridge length mm 400 i 500 600 ililiWK Measurement head for depth gauge No. 418770 304.92 (390.06) (453.42) Cross section measurement head mm 20x13 J m lm7 Standard /Inch W < Cal hole . Digital universal depth gauge in lightweight design Easy-to-read display. Optimum sliding characteristics are ensured by double Vee guides. Measurement head of hard-coated aluminium with two tapped holes at 90° (M2.5) to take the measuring tips. Supplied with: Contact point No. 434900 size 2, 3 measurement heads (150,300 and 450 mm), 1 battery No. 081560 size 357 and manufacturer's test certificate. Optional extras: All spare and special contact points No. 434900 - 4915 with M2.5 thread. Measuring range mm 300 i 500 I 800 i mMl\ Diaital depth aauae 313.83 418.77 (524.70) Reversible reading Reversible reading Error limit mm inch mm 0.04 0.01 0.0005 0.05 7 Standard /Inch hole . Digital small depth gauge With ABS function for absolute and relative measurements. Supplied with: 1 battery No. 081560 size CR2032 0.06 Additional side-facing mounting for contact points to allow measuring grooves and spacings. si Measuring range mm 50 I PXIliltyJ Diaital deoth aauae 70.69 Reversible reading mm 0.01 Reversible reading inch 0.0005 Error limit mm ±0.04 Needle hole probe length mm 6 Needle hole probe 0 mm 1.6 Bridge length mm 50 46
