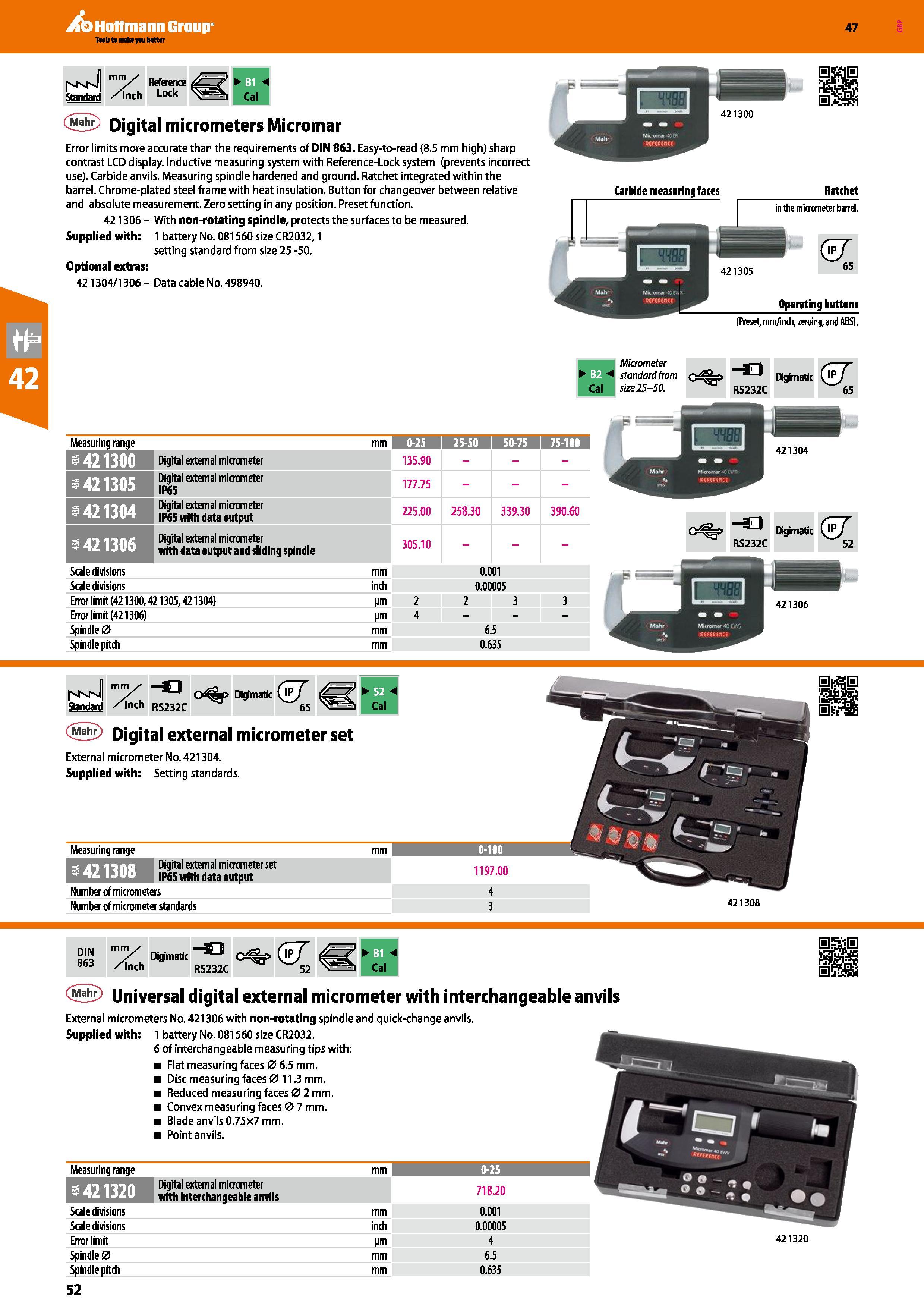

Hoffmann Group 47 Cal Digital micrometers Micromar Error limits more accurate than the requirements of DIN 863. Easy-to-read (8.5 mm high) sharp contrast LCD display. Inductive measuring system with Reference-Lock system (prevents incorrect use). Carbide anvils. Measuring spindle hardened and ground. Ratchet integrated within the barrel. Chrome-plated steel frame with heat insulation. Button for changeover between relative and absolute measurement. Zero setting in any position. Preset function. 421306 - With non-rotating spindle, protects the surfaces to be measured. Supplied with: 1 battery No. 081560 size CR2032,1 setting standard from size 25 -50. Optional extras: 421304/1306 - Data cable No. 498940. Micrometer standard from Cal size25-50. an RS232C Digmatic <57 65 Measuring range mm 0-25 1 25-50 1 50-75 1 75-100 mmm Digital external micrometer 135.90 9421305 Digital external micrometer IP65 177.75 5421304 Digital external micrometer IP65 with data output 225.00 258.30 339.30 390.60 3421306 Digital external micrometer with data output and sliding spindle 305.10 o%> S3 RS232C Digknatic <57 52 Scale divisions Scale divisions Error limit (421300,421305,421304) Error limit (421306) Spindle 0 Spindle pitch mm inch im im mm 0.001 0.00005 2 3 6.5 0.635 DIN mm 863 , Dig'matk Inch RS232C o%> <57 52 Cal (Mahr) 57 421305 65 Operating buttons (Preset, mm/indi, zeroing, and ABS). Carbide measuring faces Ratchet in the micrometer barrel. vmJ m”y C =e> Dkjmatk ( P/ Standard /Inch RS232C 65 Digital external micrometer set External micrometer No. 421304. Supplied with: Setting standards. 421308 Measuring range Digital external micrometer set IP65 with data output Number ofmicrometers Number of micrometer standards 1197.00 4 3 Measuring range mm 0-25 1 Digital external micrometer with interchangeable anvils 718.20 Scale divisions mm 0.001 Scale divisions inch 0.00005 Error limit im 4 Spindle 0 mm 6.5 Spindle pitch mm 0.635 Universal digital external micrometer with interchangeable anvils External micrometers No. 421306 with non-rotating spindle and quick-change anvils. Supplied with: 1 battery No. 081560 size CR2032. 6 of interchangeable measuring tips with: Flat measuring faces 0 6.5 mm. Disc measuring faces 0 11.3 mm. Reduced measuring faces 0 2 mm. Convex measuring faces 0 7 mm. Blade anvils 0.75x7 mm. Point anvils.
