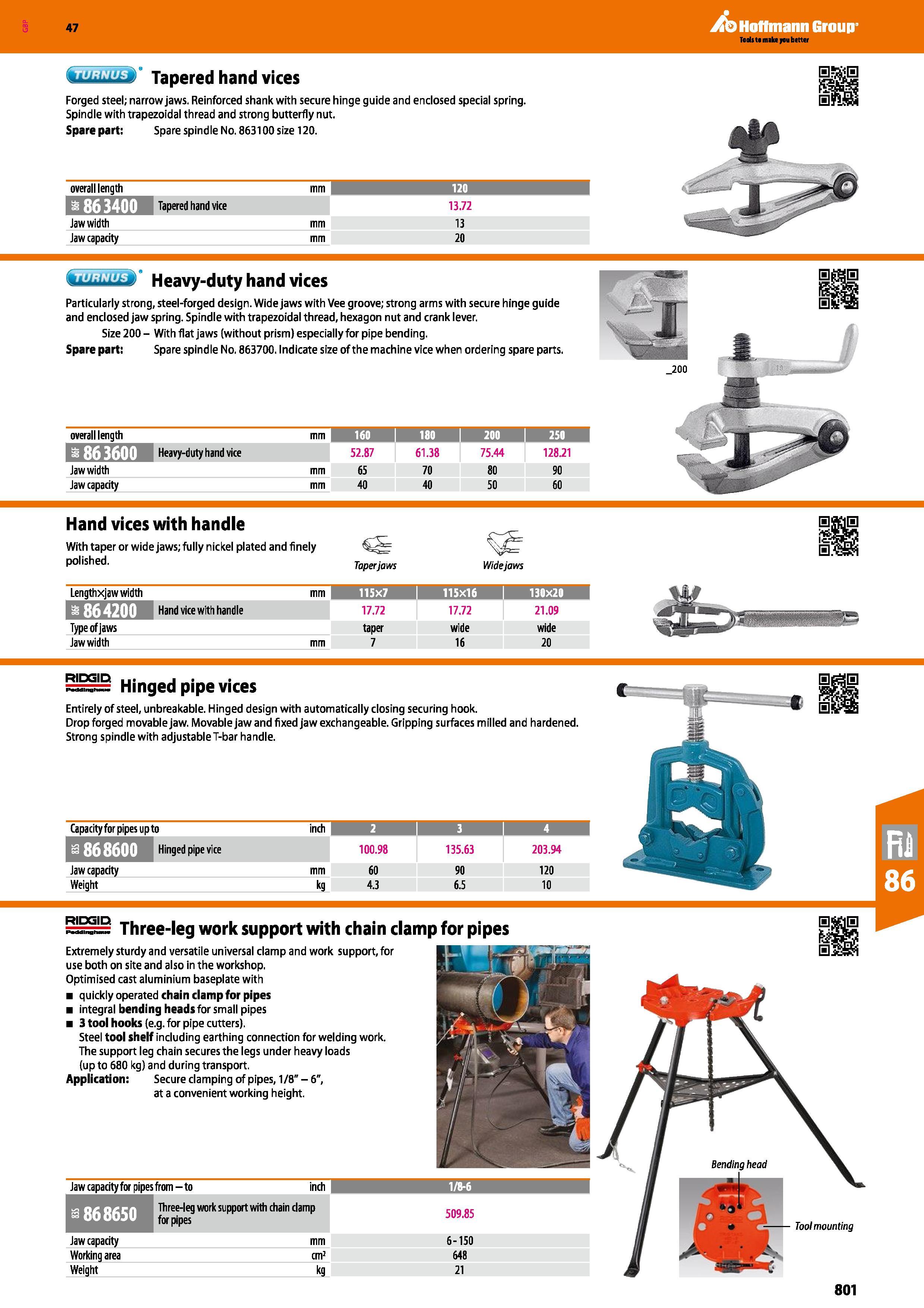

Hoffmann Group 47 TURNUS Tapered hand vices Forged steel; narrow jaws. Reinforced shank with secure hinge guide and enclosed special spring. Spindle with trapezoidal thread and strong butterfly nut. Spare part: Spare spindle No. 863100 size 120. overall length mm 120 1 Tapered hand vice 13.72 Jaw width mm 13 Jaw capacity mm 20 Heavy-duty hand vices Particularly strong, steel-forged design. Wide jaws with Vee groove; strong arms with secure hinge guide and enclosed jaw spring. Spindle with trapezoidal thread, hexagon nut and crank lever. Size 200 - With flat jaws (without prism) especially for pipe bending. Spare part: Spare spindle No. 863700. Indicate size of the machine vice when ordering spare parts. overall length 160 j 180 200 I 250 i Heavy-duty hand vice 52.87 61.38 75.44 128.21 Jaw width mm 65 70 80 90 Jaw capacity mm 40 40 50 60 Hand vices with handle With taper or wide jaws; fully nickel plated and finely polished. Taperjaws Widejaws Lengthxjaw width mm 115x7 115x16 130x20 Hand vice with handle 17.72 17.72 21.09 Type of jaws taper wide wide Jaw width mm 7 16 20 = = Hinged pipe vices Entirely of steel, unbreakable. Hinged design with automatically closing securing hook. Drop forged movable jaw. Movable jaw and fixed jaw exchangeable. Gripping surfaces milled and hardened. Strong spindle with adjustable T-bar handle. Capacity for pipes upto inch 2 I 3 I 4 I a 868600 100.98 135.63 203.94 Jaw capacity mm 60 90 120 Weight kg 4.3 6.5 10 Three-leg work support with chain clamp for pipes Extremely sturdy and versatile universal clamp and work support, for use both on site and also in the workshop. Optimised cast aluminium baseplate with quickly operated chain clamp for pipes integral bending heads for small pipes 3 tool hooks (e.g. for pipe cutters). Steel tool shelf including earthing connection for welding work. The support leg chain secures the legs under heavy loads (up to 680 kg) and during transport. Application: Secure clamping of pipes, 1/8" - 6", at a convenient working height. Jaw capacity for pipes from-to inch 1/8-6 1 a 86 865 Three-leg work support with chain clamp for pipes 509.85 Jaw capacity mm 6-150 Working area cm2 648 Weight kg 21 Tool mounting
