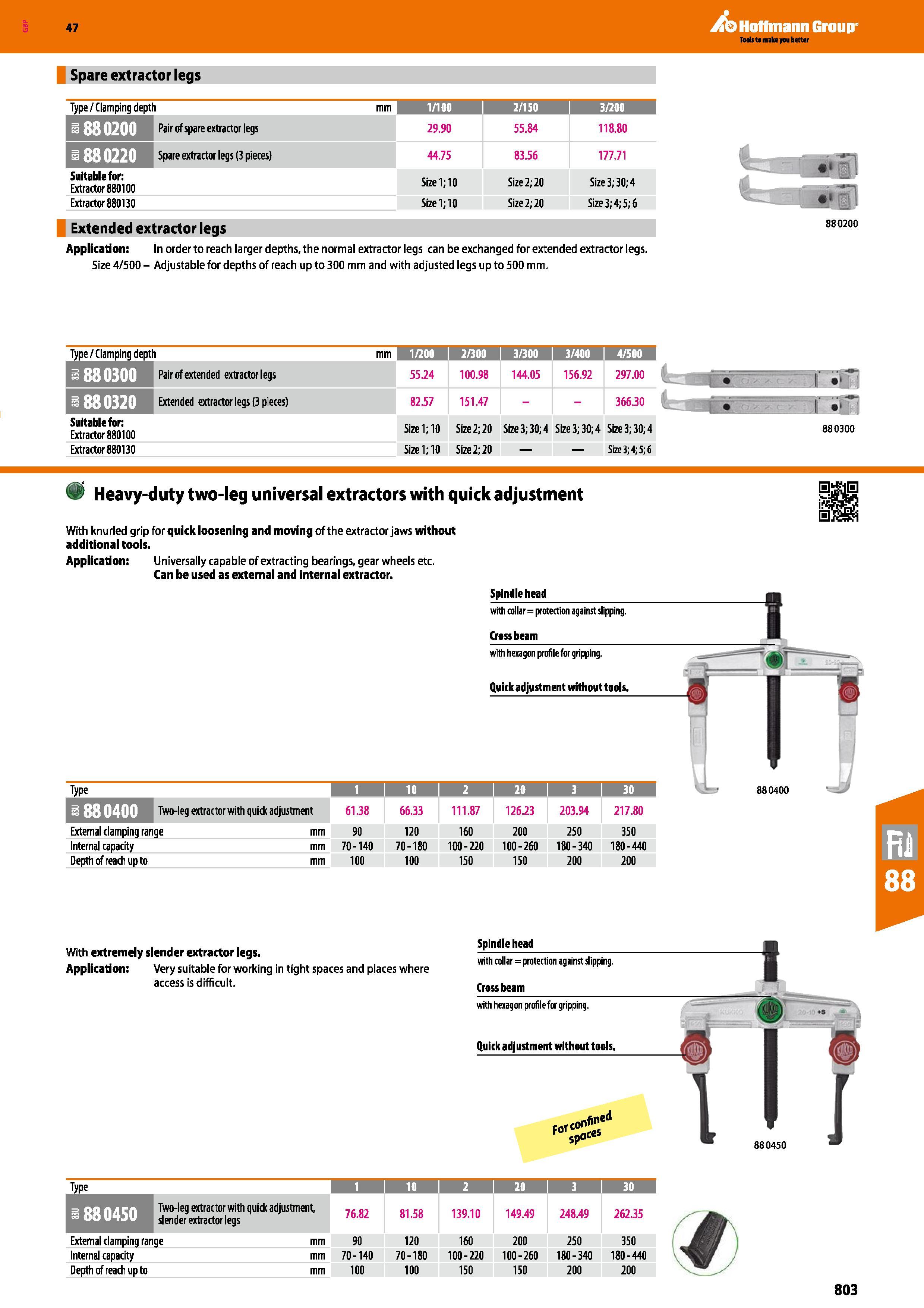

Hoffmann Group 47 Spare extractor legs Type/Clamping depth 1/100 2/150 3/200 - 88 0200 Pair of spare extractor legs 29.90 55.84 118.80 880220 Spare extractor legs (3 pieces) 44.75 83.56 177.71 Suitable for: Extractor 880100 Sizel; 10 Size 2; 20 Size 3; 30; 4 Extractor 880130 Sizel; 10 Size 2; 20 Size 3; 4; 5; 6 Extended extractor legs Application: In order to reach larger depths, the normal extractor legs can be exchanged for extended extractor legs. Size 4/500 - Adjustable for depths of reach up to 300 mm and with adjusted legs up to 500 mm. 880200 Type/Clamping depth 1/200 I 2/300 I 3/300 1 3/400 1 4/500 1 i 88 0300 Pairofextended extractor legs 55.24 100.98 144.05 156.92 297.00 i 880320 Extended extractor legs (3 pieces) 82.57 151.47 366.30 Suitable for: Extractor 880100 Sizel; 10 Size 2; 20 Size 3; 30; 4 Size 3; 30; 4 Size 3; 30; 4 Extractor 880130 Sizel; 10 Size 2; 20 Size 3; 4; 5; 6 la f iT r 880300 Heavy-duty two-leg universal extractors with quick adjustment With knurled grip for quick loosening and moving of the extractor jaws without additional tools. Application: Universally capable of extracting bearings, gear wheels etc. Can be used as external and internal extractor. Spindle head with collar=protection against slipping. Crossbeam with hexagon profile for gripping. Quick adjustment without tods. Type 1 1 10 I 2 1 20 I 3 I 30 1 1 'B Two-leg extractor with quick adjustment 61.38 66.33 111.87 126.23 203.94 217.80 External clamping range mm 90 120 160 200 250 350 Internal capacity mm 70-140 70-180 100 - 220 100-260 180-340 180-440 Depth of reach up to mm 100 100 150 150 200 200 With extremely slender extractor legs. Application: Very suitable for working in tight spaces and places where access is difficult. Spindle head with collar = protection against slipping. Crossbeam with hexagon profile for gripping. Quick adjustment without tools. ed aces . 880400 I 880450 Type 1 io I 2 20 I 3 i 30 1 Two-leg extractor with quick adjustment, slender extractor legs 76.82 81.58 139.10 149.49 248.49 262.35 External damping range mm 90 120 160 200 250 350 Internal capacity mm 70-140 70-180 100 - 220 100-260 180-340 180-440 Depth of reach up to mm 100 100 150 150 200 200 4/ 803
