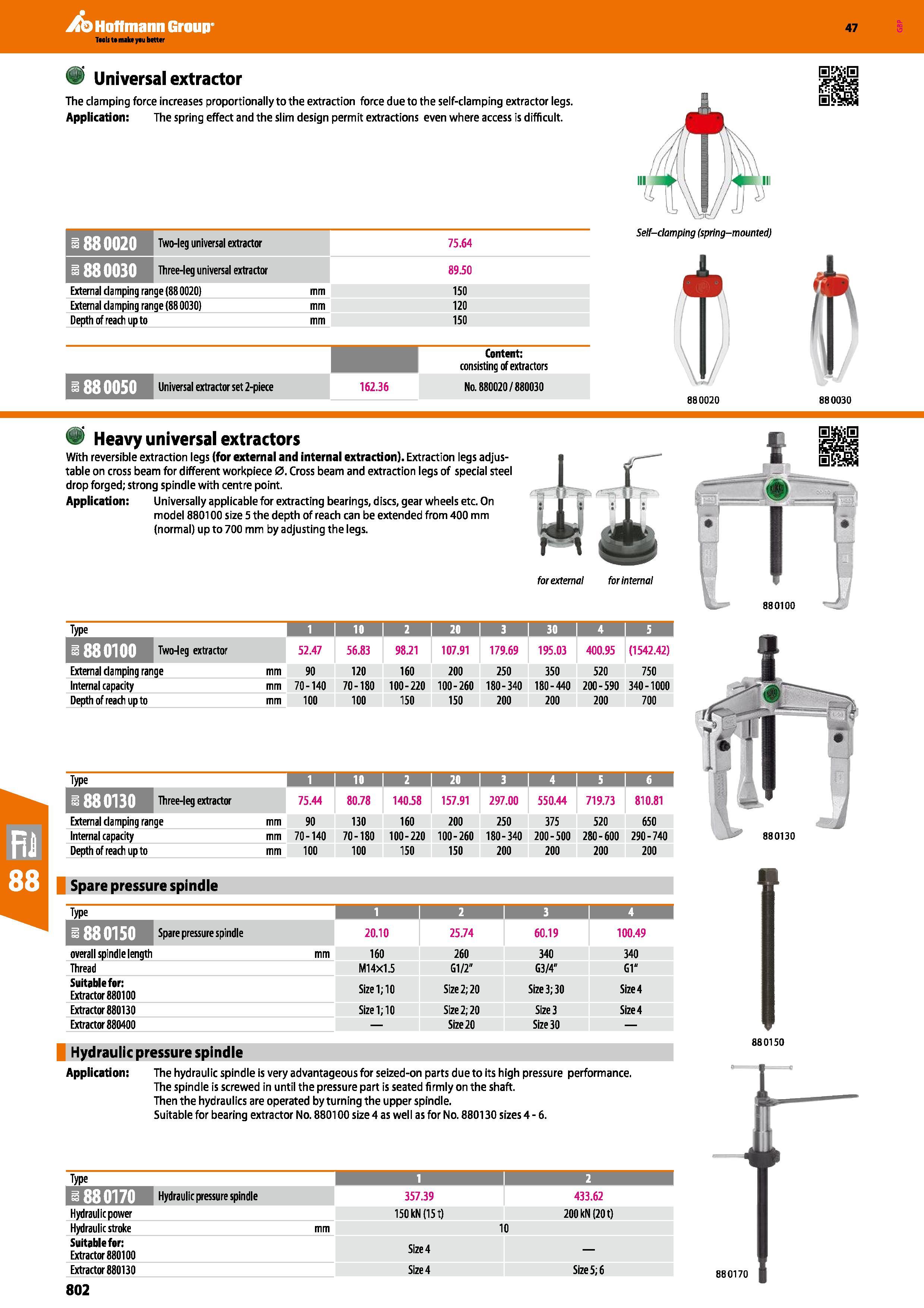

Hoffmann Group 47 Universal extractor The clamping force increases proportionally to the extraction force due to the self-clamping extractor legs. Application: The spring effect and the slim design permit extractions even where access is difficult. 880020 Two-leg universal extractor 75.64 880030 Three-leg universal extractor 89.50 External da mping range (88 0020) mm 150 External da mping range (88 0030) mm 120 Depth of reach up to mm 150 Content: consisting of extractors 1880050 Universal extractor set 2-piece 162.36 Na 880020/880030 880020 880030 Heavy universal extractors With reversible extraction legs (for external and internal extraction). Extraction legs adjustable on cross beam for different workpiece 0. Cross beam and extraction legs of special steel drop forged; strong spindle with centre point. Application: Universally applicable for extracting bearings, discs, gear wheels etc. On model 880100 size 5 the depth of reach can be extended from 400 mm (normal) up to 700 mm by adjusting the legs. for external forinternal Type 1 i I 2 20 I 3 I 30 1 4 1 5 i 880100 52.47 56.83 98.21 107.91 179.69 195.03 400.95 (1542.42) External damping range mm 90 120 160 200 250 350 520 750 Internal capacity mm 70-140 70-180 100-220 100-260 180-340 180-440 200-590 340-1000 Depth of reach up to mm 100 100 150 150 200 200 200 700 Type 1 1 io I 2 I 20 1 3 I 4 I s I a 880130 75.44 80.78 140.58 157.91 297.00 550.44 719.73 810.81 External clamping range mm 90 130 160 200 250 375 520 650 Internal capacity mm 70-140 70-180 100-220 100-260 180-340 200-500 280 - 600 290-740 Depth of reach up to mm 100 100 150 150 200 200 200 200 Spare pressure spindle Type 1 2 1 3 I 4 Spare pressure spindle 20.10 25.74 60.19 100.49 overall spindle length mm 160 260 340 340 Thread M14X1.5 G1/2" G3/4" G1" Suitable for: Extractor 880100 Size 1; 10 Size 2; 20 Size 3; 30 Size 4 Extractor 880130 Size 1; 10 Size 2; 20 Size 3 Size 4 Extractor 880400 Size 20 Size 30 Hydraulic pressure spindle Application: The hydraulic spindle is very advantageous for seized-on parts due to its high pressure performance. The spindle is screwed in until the pressure part is seated firmly on the shaft. Then the hydraulics are operated by turning the upper spindle. Suitable for bearing extractor No. 880100 size 4 as welI as for No. 880130 sizes 4 - 6. 1 1 2 pfMlirilM Hydraulic pressure spindle 357.39 433.62 Hydraulic power 150 kN (151) 200 kN (201) Hydraulic stroke mm 10 Suitable for: Extractor 880100 Size 4 Extractor 880130 Size 4 Size 5; 6 i 880130 880150 802
